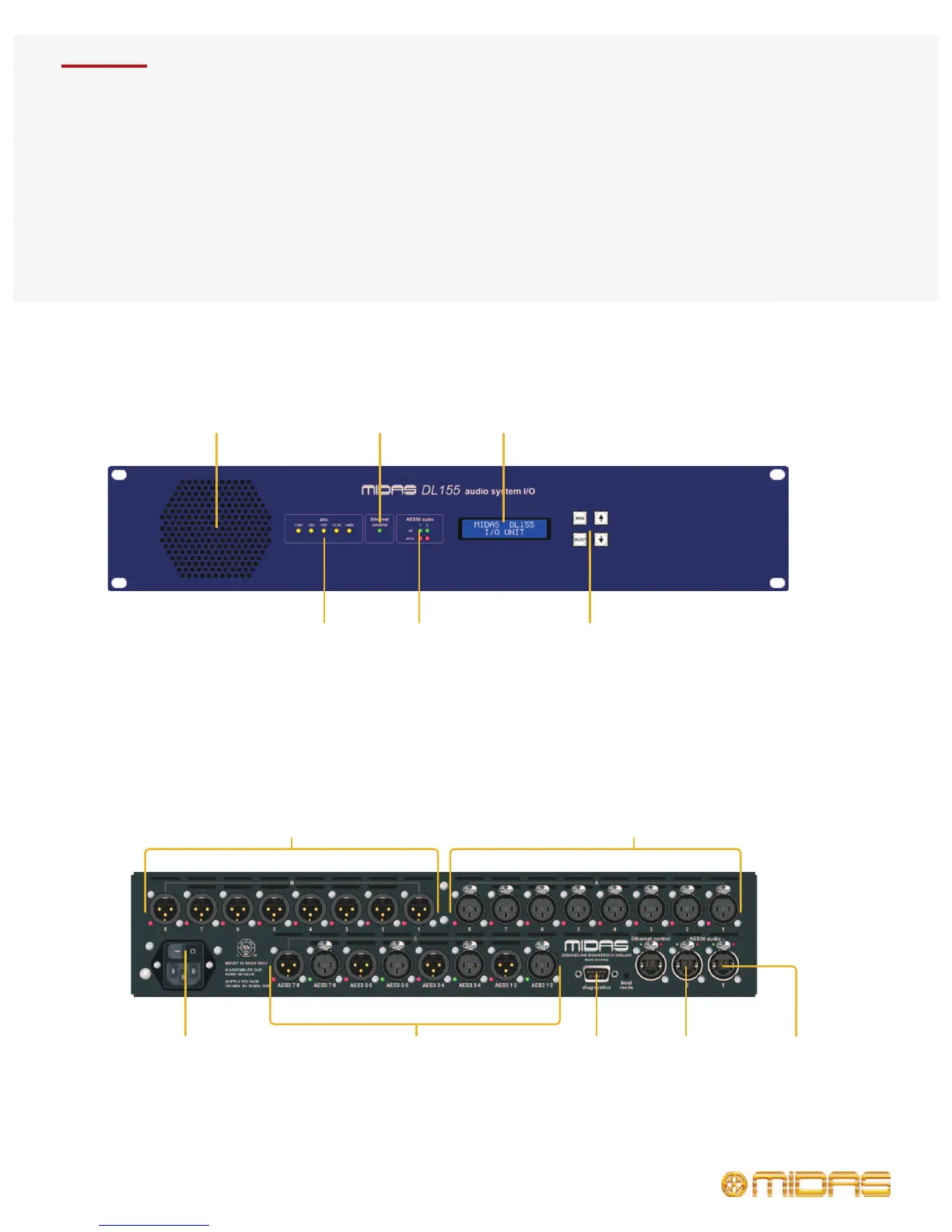

Front Panel Description
Rear Panel Description
Ventilation Grill
Ethernet Control
Status - Green status
LED for the Ethernet
control port
LCD - 2 x 16 character
blue backlit liquid
crystal display
PSU Status
Indication -
Power supply
status LEDs for each
power rail
AES50 Status
Indication - Green
‘OK’ and red ‘ERROR’
status LEDs for the
AES50 ports
Con guration Control-
‘Menu’, ‘Select’, ‘Up’
and ‘Down’ buttons
for con guring
menu items
I/O Card ‘A’ - 8-channel
analogue outputs
I/O Card ‘B’ - 8-channel
analogue inputs
Mains Power Inlet -
IEC inlet with integral
mains switch
AES50 Ports -
2 x rugged Neutrik
‘Ethercon’ connectors
with integral
status LEDs
Diagnostics port -
9 W ‘D’ connector
for diagnostics use
Ethernet Control
Port - 1 x rugged
Neutrik ‘Ethercon’
connector with
integral status LEDs
I/O Card ‘C’ - 8-channel
AES3 connections
8-Input/8-Output/8-AES/EBU Stagebox
with MIDAS Mic Preamps and
Dual-Redundant AES50 Networking
I/O Interfaces

DL155
