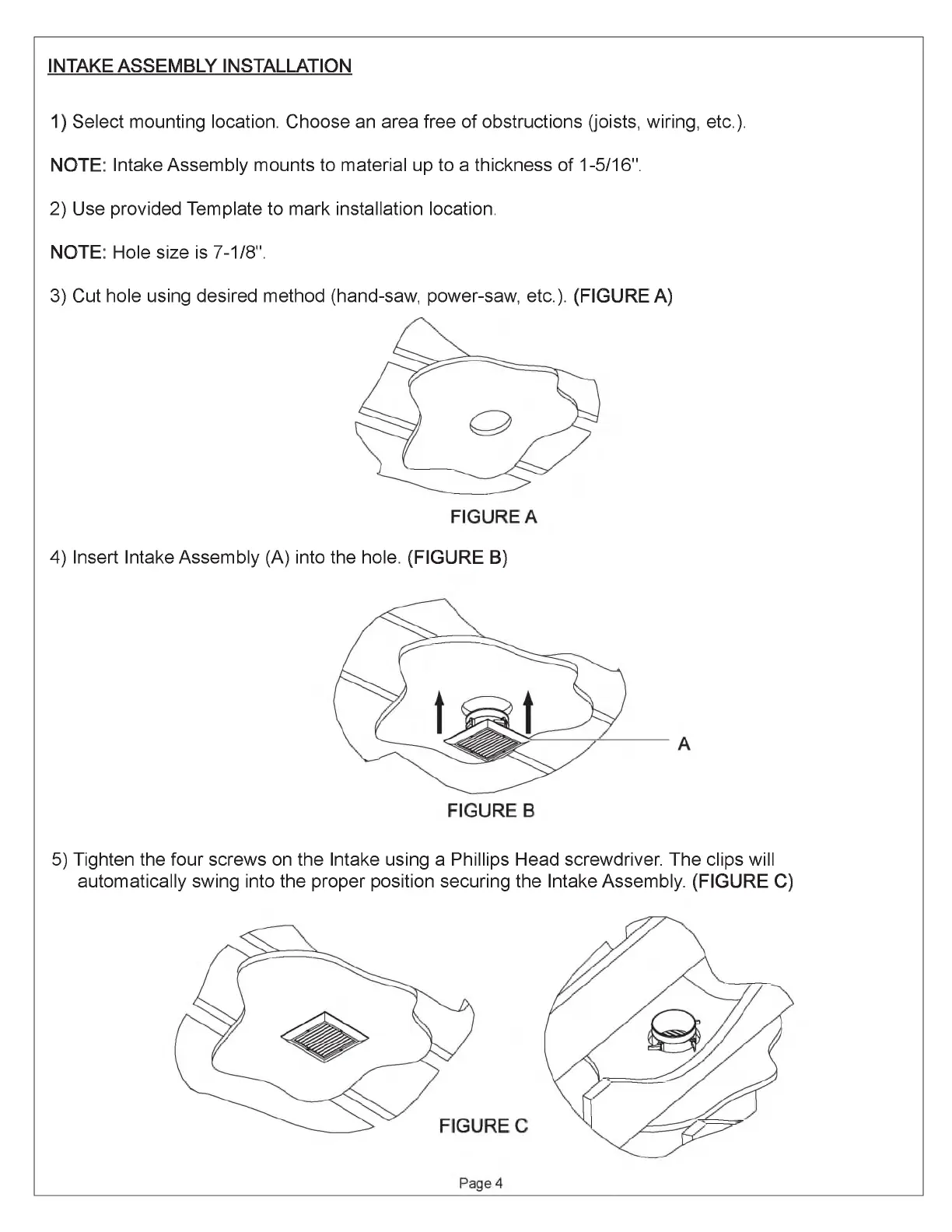

1) Select mounting location. Choose an area free of obstructions (joists, wiring, etc.).
NOTE: Intake Assembly mounts to material up to a thickness of 1-5/16".
2) Use provided Template to mark installation location.
NOTE: Hole size is 7-1/8".
3) Cut hole using desired method (hand-saw, power-saw, etc.). (FIGURE A)
INTAKE ASSEMBLY INSTALLATION
4) Insert Intake Assembly (A) into the hole. (FIGURE B)
5) Tighten the four screws on the Intake using a Phillips Head screwdriver. The clips will
automatically swing into the proper position securing the Intake Assembly. (FIGURE C)
