1) Install Fan Unit (B) to Mounting Plate (C) using provided hardware (F & H). Use a Phillips Head
Driver and 3/8" Wrench (mount in four places). (FIGURE A)

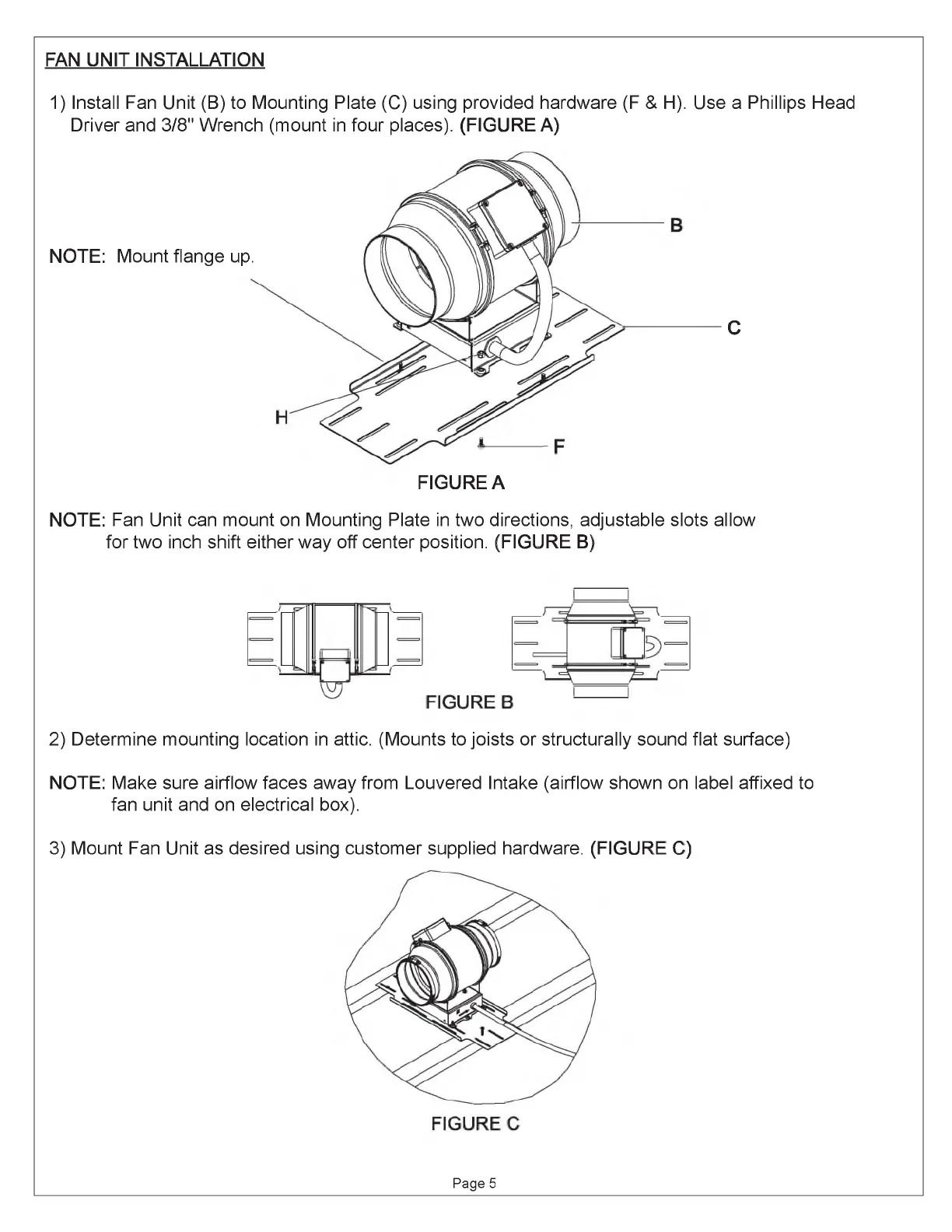

FAN UNIT INSTALLATION
NOTE: Mount flange up.
C
FIGURE A
NOTE: Fan Unit can mount on Mounting Plate in two directions, adjustable slots allow
for two inch shift either way off center position. (FIGURE B)
2) Determine mounting location in attic. (Mounts to joists or structurally sound flat surface)
NOTE: Make sure airflow faces away from Louvered Intake (airflow shown on label affixed to
fan unit and on electrical box).
3) Mount Fan Unit as desired using customer supplied hardware. (FIGURE C)
Page 5
