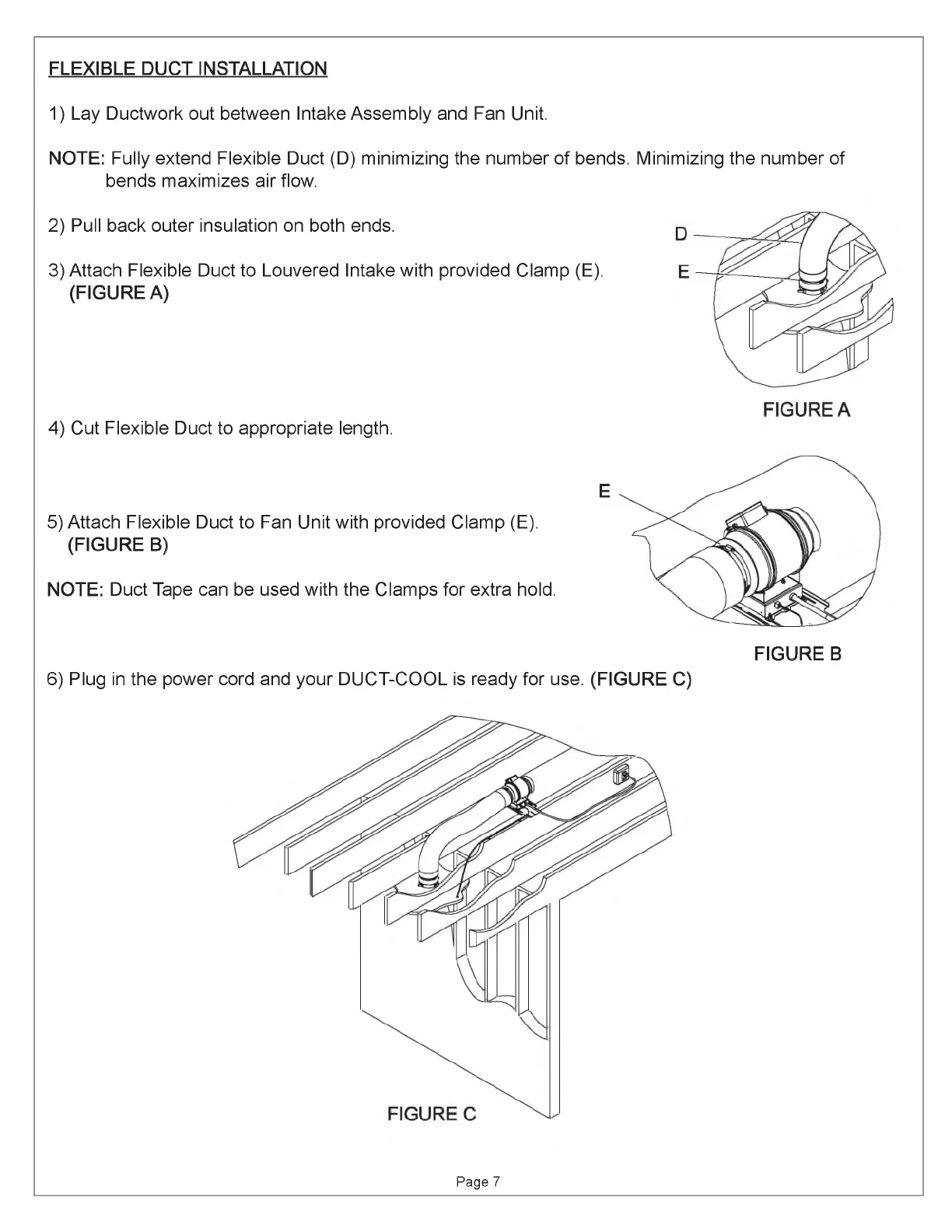

1) Lay Ductwork out between Intake Assembly and Fan Unit.
NOTE: Fully extend Flexible Duct (D) minimizing the number of bends. Minimizing the number of
bends maximizes air flow.
FLEXIBLE DUCT INSTALLATION
2) Pull back outer insulation on both ends.
3) Attach Flexible Duct to Louvered Intake with provided Clamp (E).
(FIGURE A)
4) Cut Flexible Duct to appropriate length.
5) Attach Flexible Duct to Fan Unit with provided Clamp (E).
(FIGURE B)
NOTE: Duct Tape can be used with the Clamps for extra hold.
6) Plug in the power cord and your DUCT-COOL is ready for use. (FIGURE C)
