Midea DLCMB - Page 57

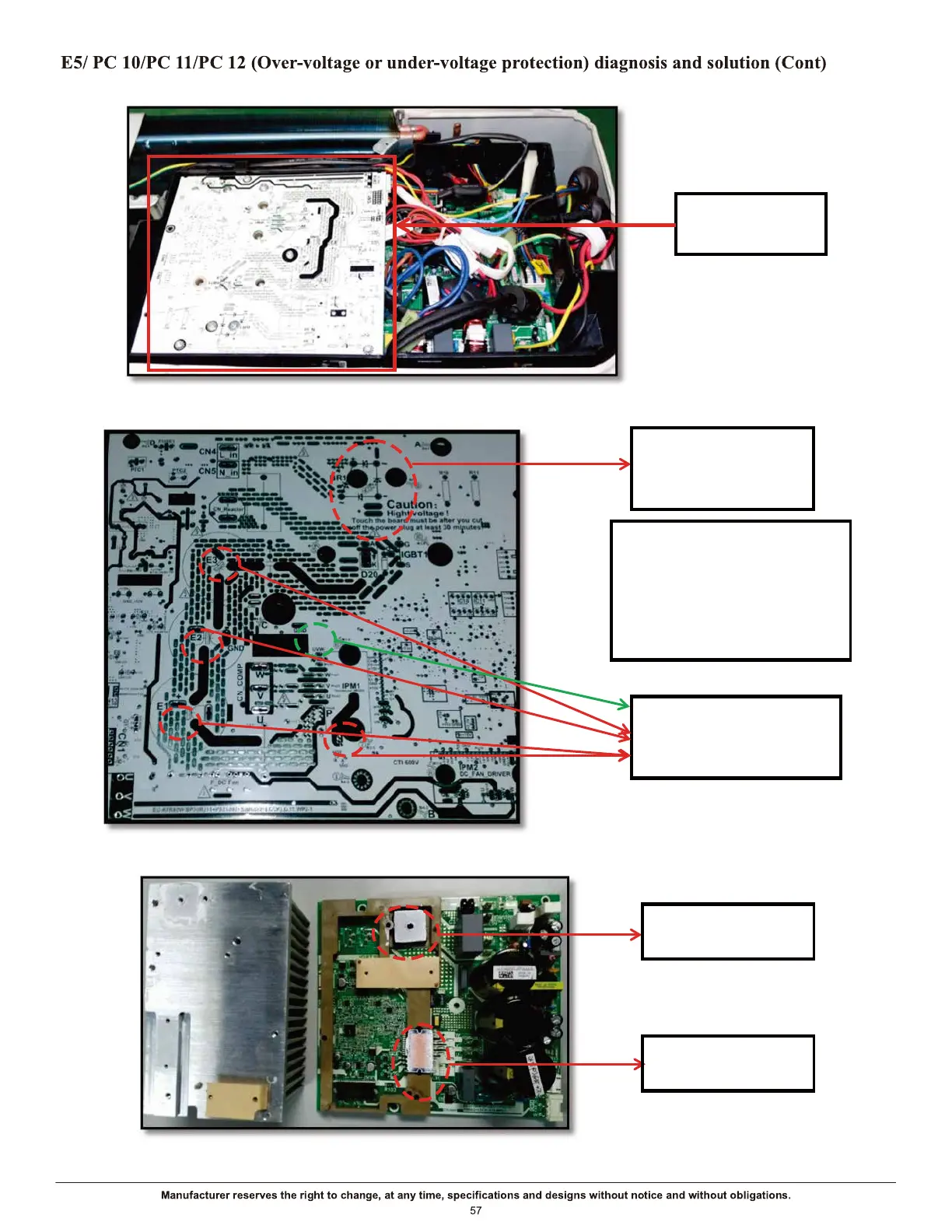

IPM board (for
2-zone /3-zone)
P(or E1/E2/E3)-N(GND)
(for 2-zone/3-zone)
Bridge rectifier
(for 2-zone/3-zone)
Remark:
Measure the DC voltage
between + and - port. The
normal value should be
190V~250V.
Bridge rectifier
(
for 2-zone/3-zone
)
IPM Module
(
for 2-zone/3-zone
)
DLCM(R/H)B: Service Manual
