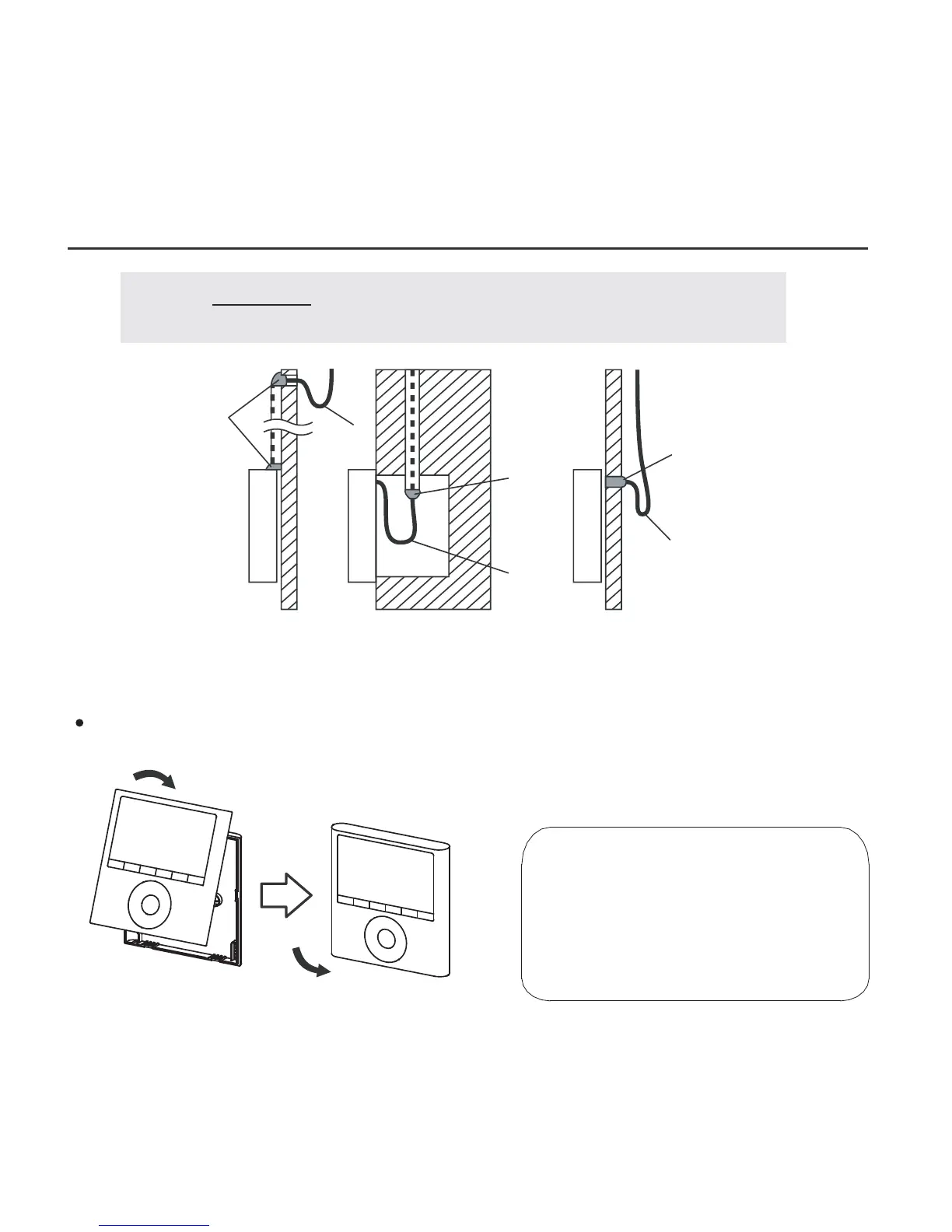

Fig 3-8
3. INSTALLATION METHOD
Putty
Putty
Putty
Trap
Trap
Trap
Fig 3-9
IMPORTANT: All the pictures
in this manual are for
illustration purposes only.
Your wire controller may
differ slightly.
8. Reattach the wire controller’s upper part
While adjusting and mounting the upper case, avoid clamping the
wiring during installation. (Fig 3-9)
NOTE: DO NOT allow water to enter the remote control.
Use the trap and putty to seal the wires.
