10. OPERATION

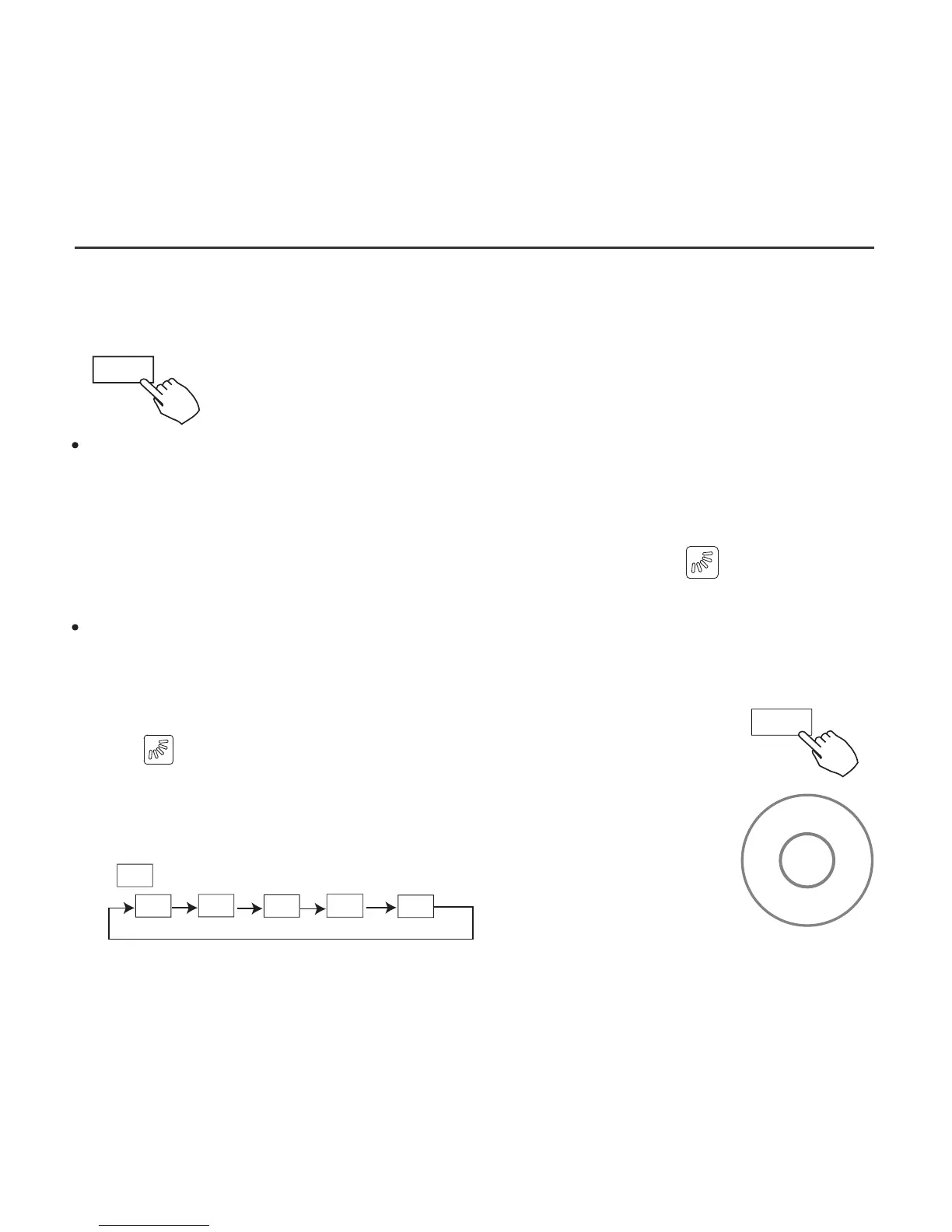

Up-Down airflow direction and swing
1.Every time the user presses SWING, the louver swings six degrees.
2.Press and hold SWING for 2 seconds, it changes to the
UP−DOWN SWING mode. Press SWING again to stop.
When the Up-Down swing function is activated,the mark appears.
(Not applicable to all the models)
The operation can refer to the following instructions for the unit with
four Up-Down louvers can be operated individually.
-0
-1
-2
-3
-4
1.Press the Swing button to activate the Up-Down
adjusting louver function.
The mark will flash.(Not applicable to all the models)
2.Pressing the button “+” or“-” can select the movement
of four louvers.Each time you push the button,the wire
controller select in a sequence that goes from:(the icon
means the four louvers move at the same time.)
3. And then use Swing button to adjust the Up-Down airflow direction
of the selected louver.
-0
26
Use SWING to adjust the up and down airflow direction.
Swing function
(For the unit without left & right auto swing function models)
Swing
Swing
-
+
