Notes: 1.Use cross head screws to fix the wired controller bottom cover in the electric control box through the
screw bar. Make sure the wired controller bottom cover is on the same level after installation, and then install the
wired controller back to the bottom cover.
2. Over fasten the screw will lead to deformation of the back cover.

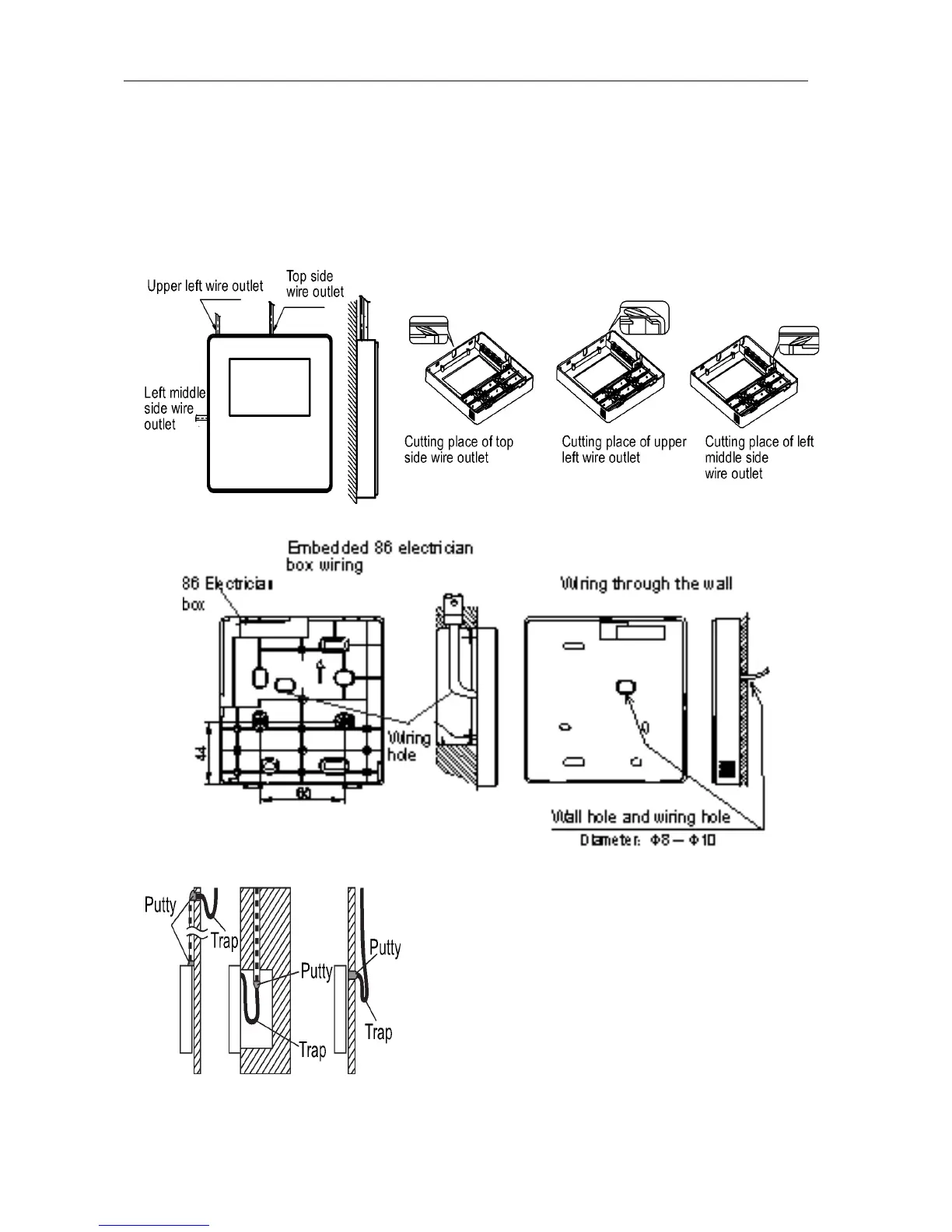

※ Wiring
1) Wiring, three outlet positions
2) Shielded wiring
