Page 25

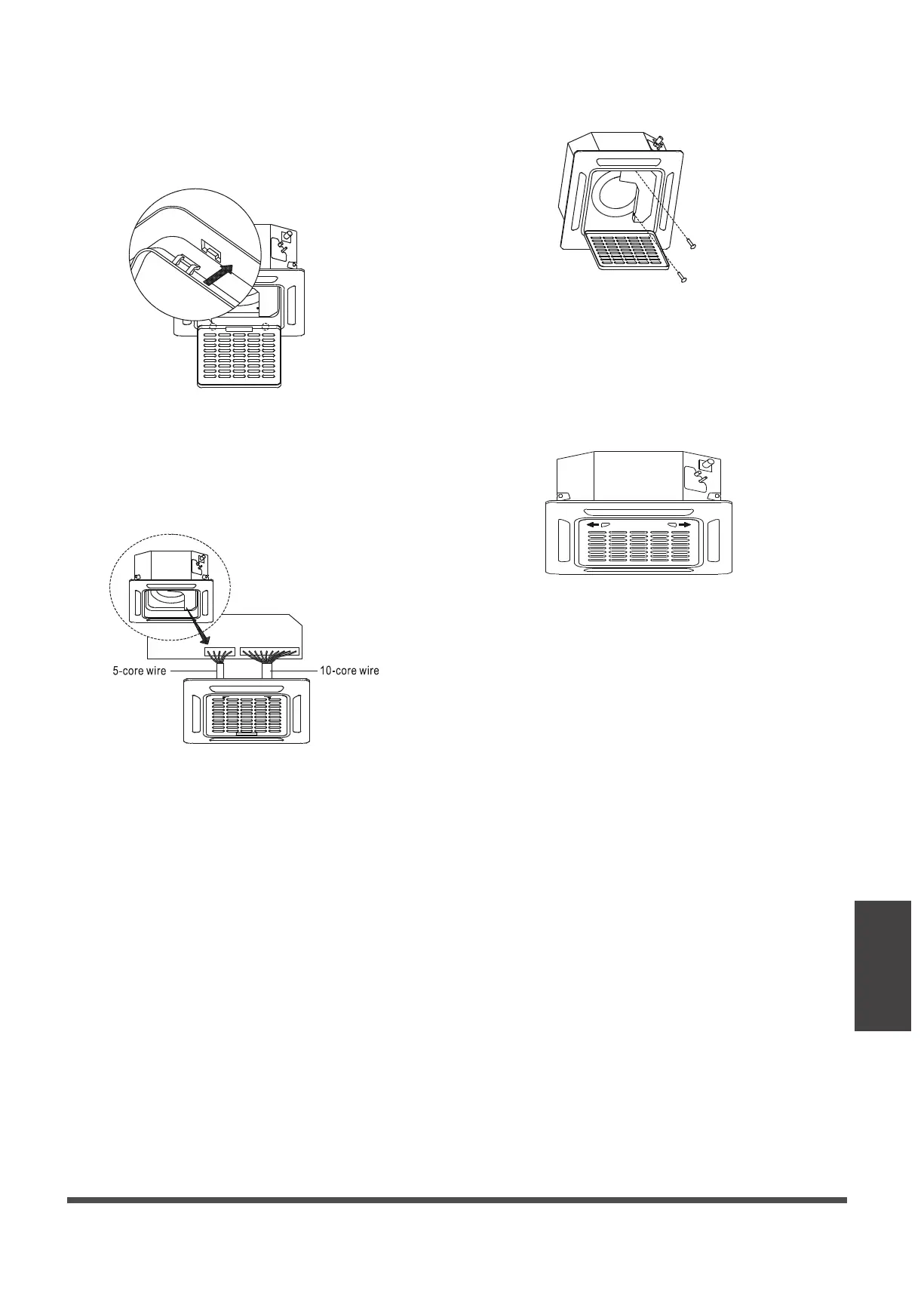

Panel Installation
Fig. 10.5
Fig. 10.7
Fig. 10.8
Fig. 10.6
Step 3: Mount the intake grille. Step 5: Fasten the control box lid with 2
screws .
Step 6: Close the intake grille, and close the
2 grille hooks.
Ensure that the buckles at the back of the
grille be properly seated in the groove of the
panel.
Step 4: Connect the 2 wires of the
decoration panel to the mainboard
of the unit.
