T2
Setting fan speed
H
M+
M
L
Super slow
Fan off
TEL0+23- TE1
TEL0+21- TE1
TEL0+19- TE1
TEL0+17- TE1
TEL0+15- TE1
TEL0+13- TE1
TEL0+18- TE1
TEL0+16- TE1
TEL0+14- TE1
TEL0+12- TE1
TEL0+10- TE1
TEL0

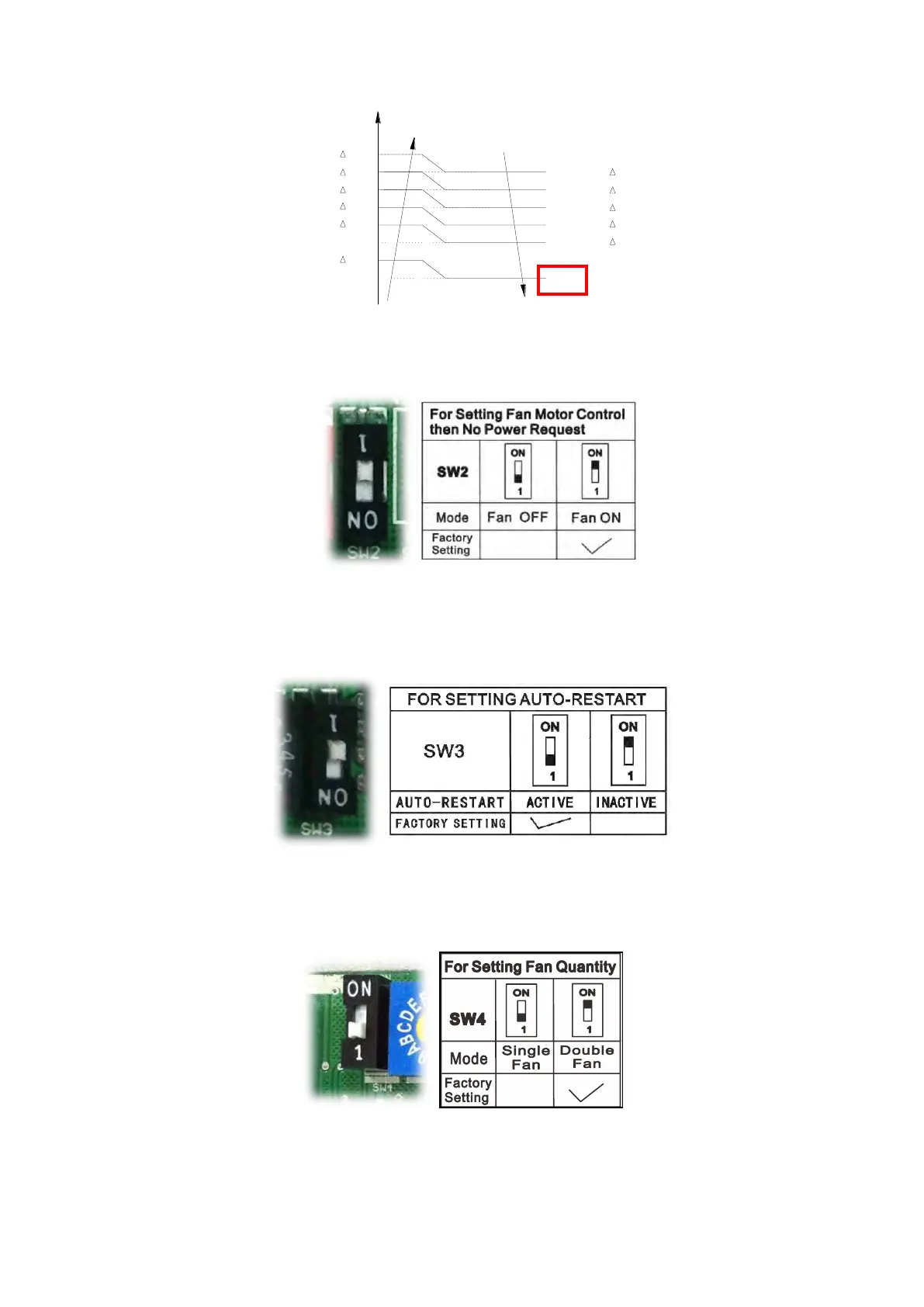

B. Micro-switch SW2 is for selection of indoor FAN ACTION if room temperature reaches the setpoint
and the compressor stops.
Range: OFF (in 127s), Keep running.
C. Micro-switch SW3 is for selection of auto-restart function.
Range: Active, inactive
D. Micro-switch SW4 is for selection of quantity of fan motors. Same as size selection switch, this switch
is for making the PCB suitable for all series units. DO NOT change it at random unless you want to use
the PCB as a spare part
