Midea MCD-24HRFN1-M(C)

92

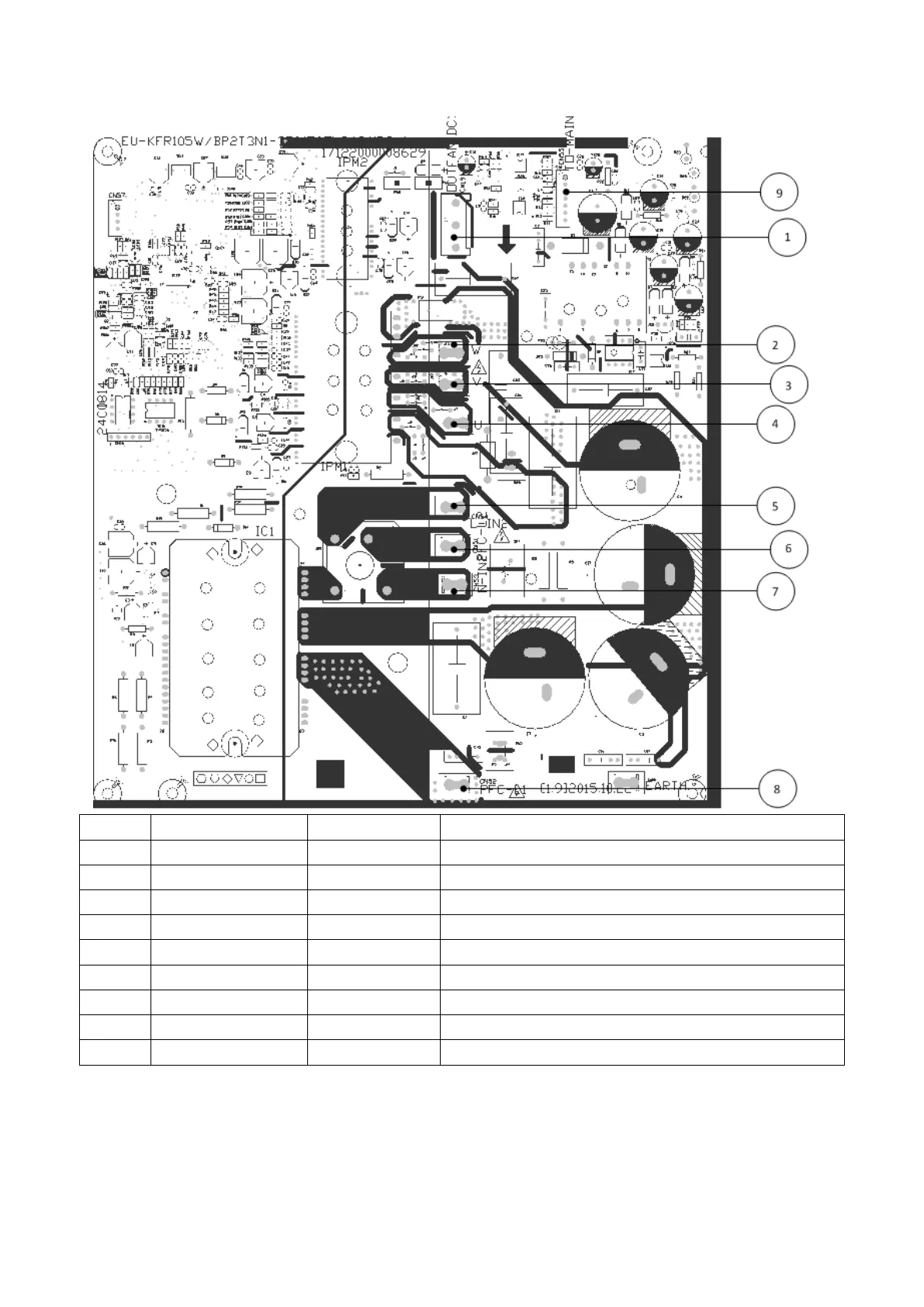

IPM board of MOD30-24HFN1-MT0W, MOD01-23HFN1-MT0W, MOD30U-36HFN1-M
No.
Name
CN#
Meaning
1
OUT FAN (DC)
CN19
Connect to DC motor
2
U
CN3/CN4
Connect to compressor U
3
V
CN5/CN6
Connect to compressor V
4
W
CN7/CN8
Connect to compressor W
5
CN54
CN54
Connect to main PCB CN6
6
CN51
CN51
Connect to PFC inductor
7
CN53
CN53
Connect to main PCB CN5
8
CN52
CN52
Connect to PFC inductor
9
CN55
CN55
Connect to main PCB CN7
