9

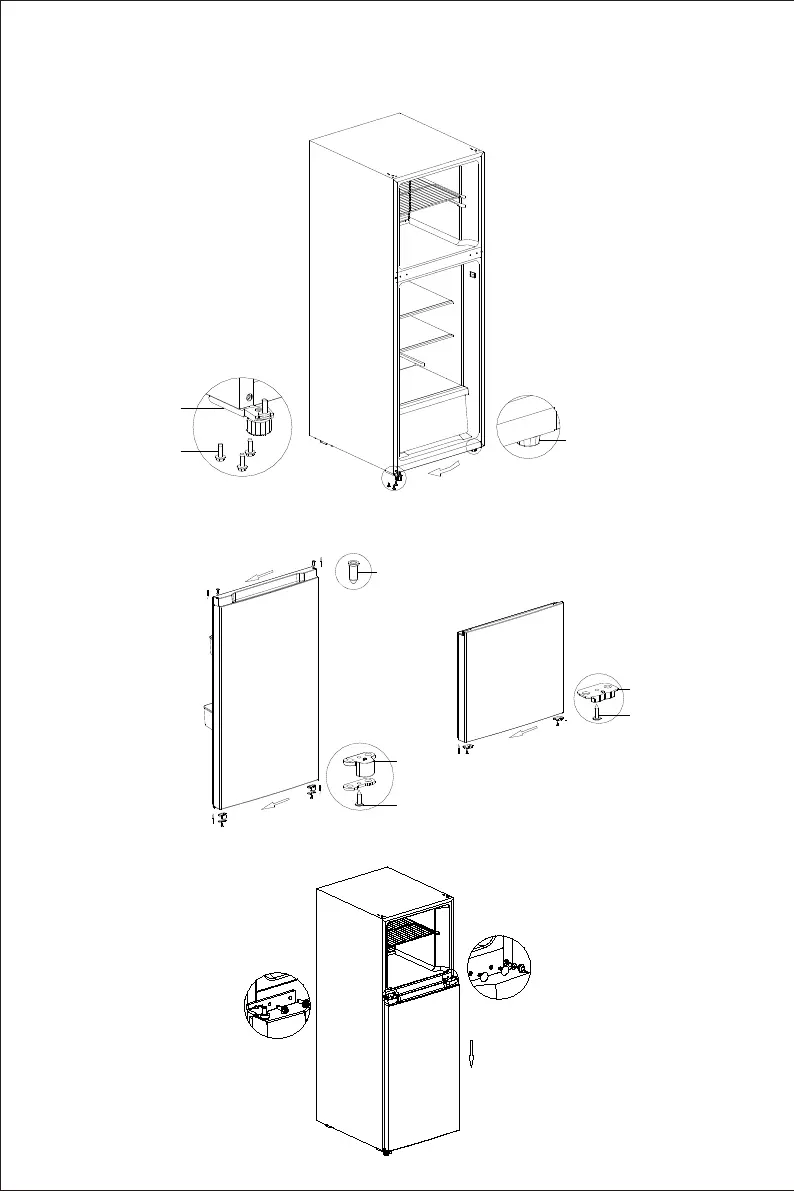

4)Remove the adjusting feet, lower hinge screw and lower hinge assembly, then install the lower
hinge assembly on the other side of the box and install the adjusting feet on the side of the adjusting
feet opening.
6) Install the compartment door on the lower hinge and then install the middle hinge Refrigerator
andhole caps.
5)Dismantle the limit blocks and screws on the lower cover of both refrigerator door and freezer door,
install them on the
other side of both doors; then install the sleeve pipe on the upper cover of the
refrigerator door on the other side.
Lower hinge
assembly
screw
Adjusting feet
sleeve pipe
stopper
screw
screw
limit blocks
To Next Page
