Midea MDV-252(8)W/D2DN1(B)

R410A All DC Inverter V4+S Series 60Hz MCAC-VTSM-2015-09
34 Specifications & Performances

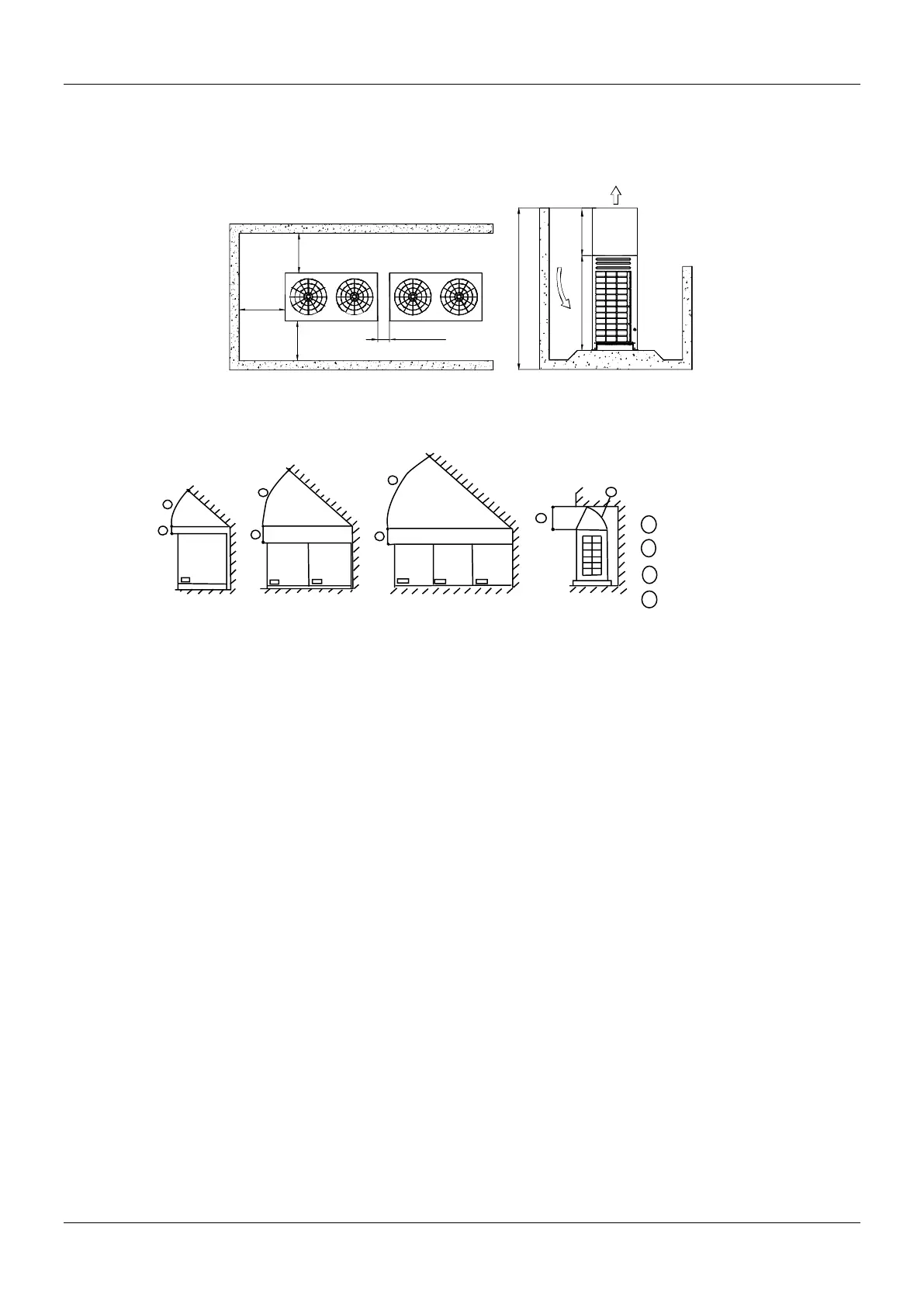

 When the outdoor unit is lower than the surrounding obstacle, to avoid cross connection of the outdoor hot
air from affecting the heat exchange capabilities, please add an air director onto the exhaust hood of the
outdoor unit to facilitate heat dissipation. See the figure below. The height of the air director is HD (namely
H-h). Please make the air director on site.
 If miscellaneous articles are piled around the outdoor unit, such articles must be 800mm (31-1/2in) below
the top of the outdoor unit. The articles must be 800mm (31-1/2in) below the top of the outdoor unit.
Otherwise, a mechanical exhaust device must be added.
Unit: mm (in.)
>1000(39-3/8)
>1000(39-3/8)
>1000(39-3/8)
>100(4)
Front
Front
h
h-H
H
h
h
-H
H
A
B
C
D
>45°
>1000(39-3/8)
>300(11-7/8)
Airflow deflector
Front view
B
A
Side view
C
D
B
A
Front view
B
A
Front view
