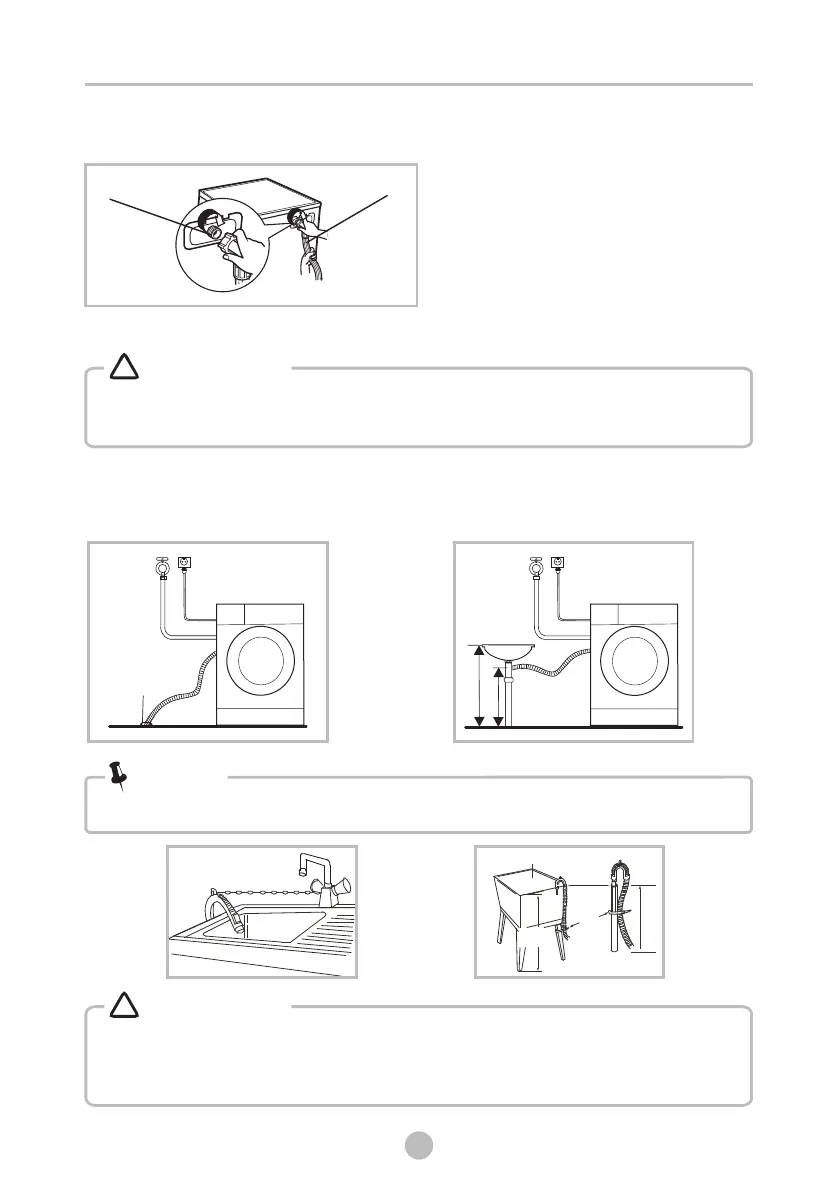

INSTALLATION
Warning!
！
Drain Hose
There are two ways to place the end of drain hose:
1.Put it into the water trough. 2.Connect it to the branch drain pipe of
the trough.
•
• If drain hose is too long, do not force it into washing machine as it will cause
abnormal noises.
When installing drain hose, fix it properly with a rope.
•
• Position drain hose properly ,otherwise damage might result of water leakage.
Do not kink or protract the drain hose.
Water
trough
M
i
n.
6
0c
m
1
0
0c
m
Max
.
Trough
Hose Retainer
Bin
d
Max.100cm
Min.60cm
Min.60cm
Max.100cm
• If the machine has drain hose support, please install it like the following .
Warning!
！
Warning!
！
Note!
water supply hose
water Inlet valve
Connect the other end of inlet pipe to the inlet valve at the backside of product
and fasten the pipe tightly clockwise.
