INSTALLATION
Warning!
！

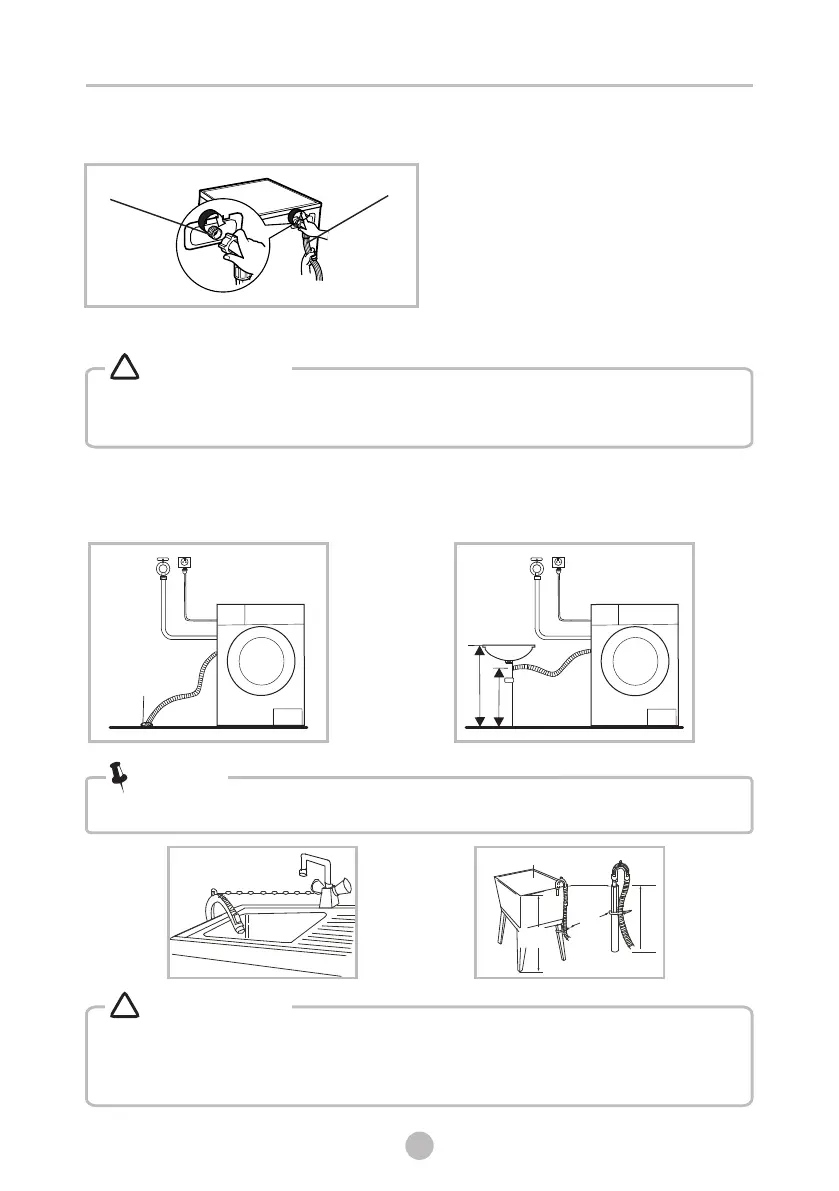

Drain Hose
There are two ways to place the end of drain hose:
1. Put it into the water trough.
2. Connect it to the branch drain pipe of
the trough.
• When installing drain hose, fix it properly with a rope.
• If drain hose is too long, do not force it into washing machine as it will cause
abnormal noises.
• Do not kink or protract the drain hose.
• Position drain hose properly ,otherwise damage might result of water leakage.
Water
trough
Min
.6
0cm
1
00
cm
Ma
x
.
Trough
Hose Retainer
B
i
nd
Max.100cm
Min.60cm
Min.60cm
Max.100cm
• If the machine has drain hose support, please install it like the following .
Warning!
！
Warning!
！
Note!
water supply hose
water Inlet valve
Connect the other end of inlet pipe to the inlet valve at the backside of product
and fasten the pipe tightly clockwise.
