Midea AC Fan Coil Unit
46

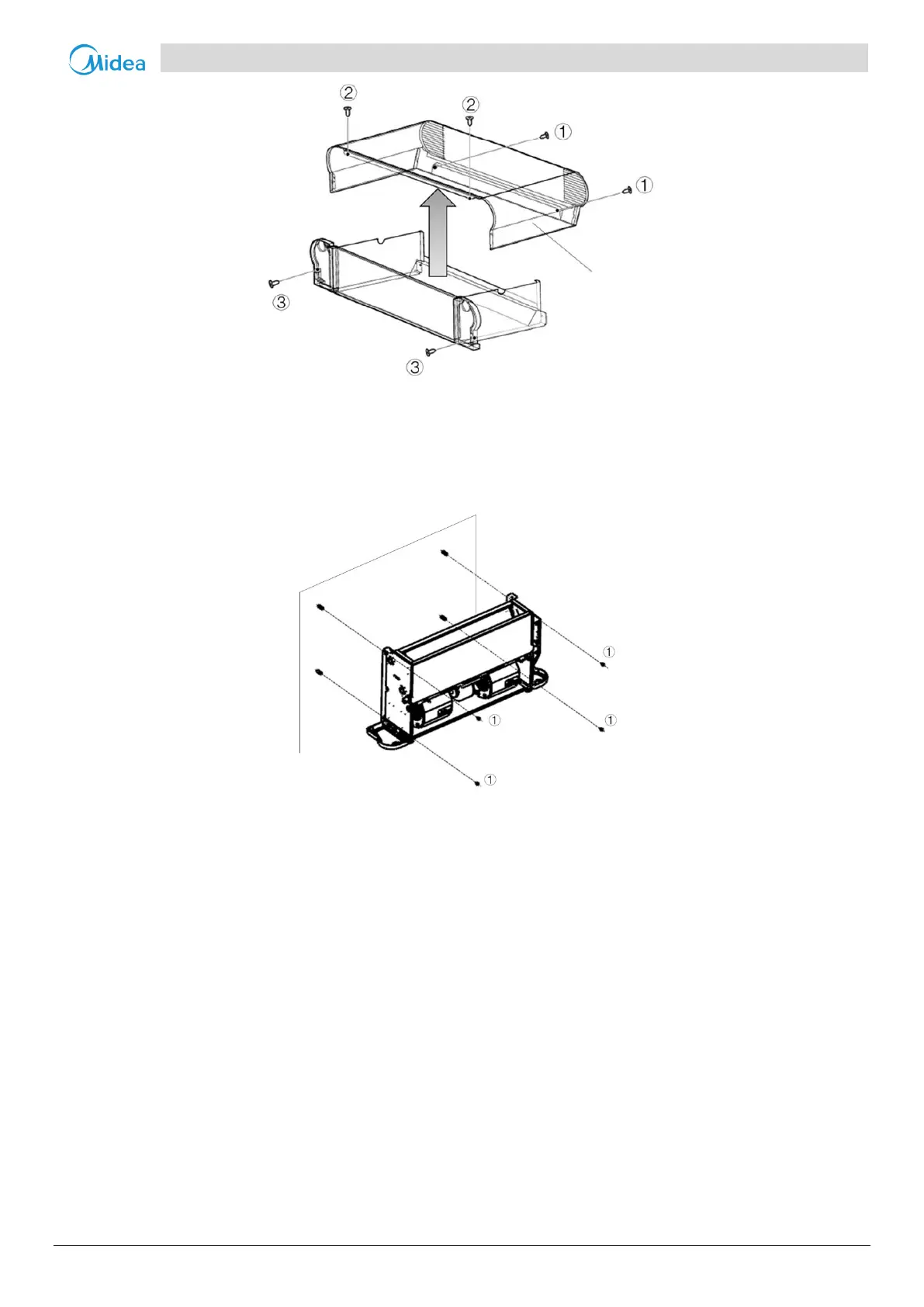

Figure 10.4.1
Mark the places for screws on the wall according to the unit mounting holes or dimensions specified in Figure
10.4.2. The drain pipe for condensate water must be smooth enough to allow unobstructed water discharge.
As shown in Figure 10.4.2, fasten four screws (①) into a proper masonry structure.
Figure 10.4.2
The footings shown in Figure 10.4.3 are optional. You can purchase them separately and install them as follows:
1. Put the footings beside the unit to be installed.
2. Place the mounting holes on the unit base into the corresponding footing locating pin and install screws ①*2
and ②*2 to fix the footing according to Figure 10.4.3.
