Specifications

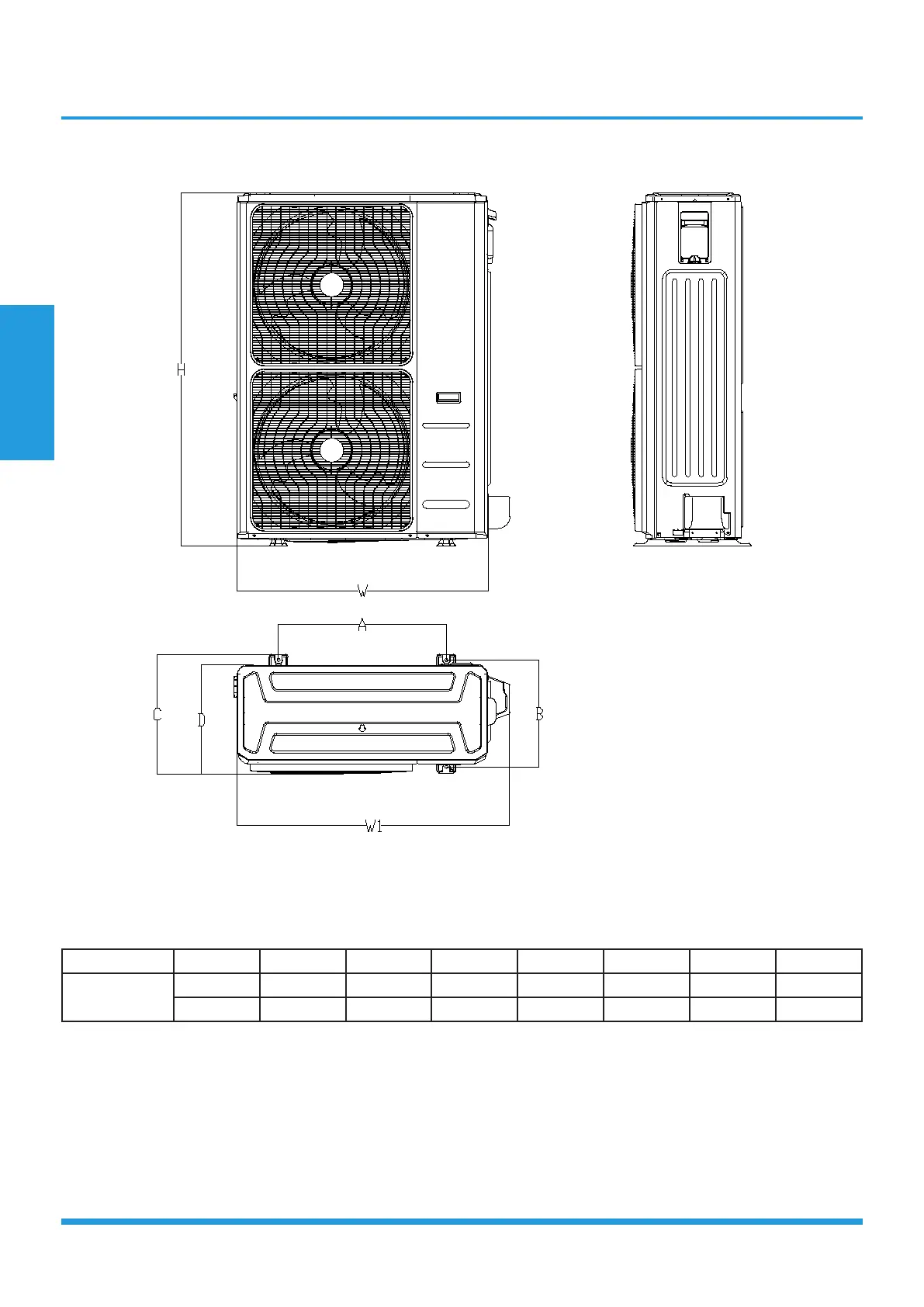

Page 14
Double
Fan Outdoor Unit
Model
unit
W
D
H
W1
A
B
C
48~55
mm
952
415
1333
1045
634
404
457
inch
37.48
16.34
52.48
41.14
24.96
15.9
17.99
13
15
Table of Contents
Table of Contents
2
Specifications
4
Model Reference
5
General Specifications
6
Dimensional Drawings
12
Centre of Gravity
15
Electrical Wiring Diagrams
18
Refrigerant Cycle Diagrams
33
Capacity Tables
36
Capacity Correction Factor for Height Difference
60
Noise Criterion Curves
67
Electrical Characteristics
73
Product Features
74
1 Operation Modes and Functions
75
Abbreviations
75
Safety Features
75
Display Function
75
Fan
75
Cooling Mode
75
Heating Mode(Heat Pump Models)
76
Auto Mode
76
Drying Mode
76
Timer Function
76
Sleep Function
76
Auto-Restart
77
Follow Me
77
Drain Pump Control
77
2 Remote Controller Functions
77
Infrared Wireless Remote Controller
77
LCD Wired Remote Controller
80
Centralized Controller
92
Table of Contents
93
Accessories
94
Installation Overview
95
Location Selection
96
Indoor Unit Installation
97
Outdoor Unit Installation
99
Drainage Pipe Installation
100
Refrigerant Pipe Installation
102
Vacuum Drying and Leakage Checking
103
Additional Refrigerant Charge
104
Engineering of Insulation
105
Engineering of Electrical Wiring
106
Test Operation
106
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Midea MOD30U-30HFN8-QRD0 and is the answer not in the manual?
Ask a question
Midea MOD30U-30HFN8-QRD0 Specifications
General
Brand
Midea
Model
MOD30U-30HFN8-QRD0
Category
Air Conditioner
Language
English
