Indoor unit installation
Installation 203

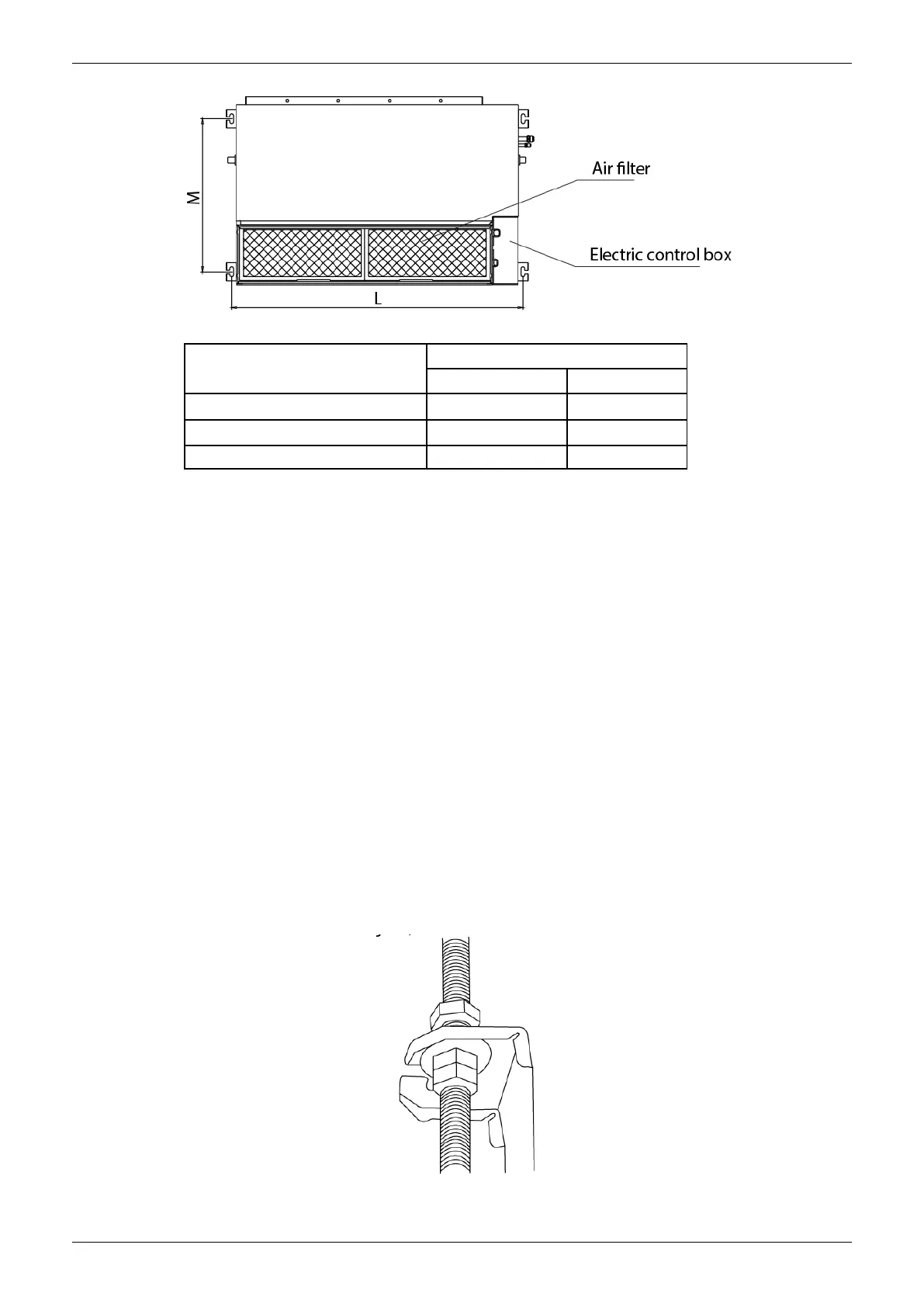

Capacity
Size of outline dimension mounted plug
L M
18K 920 508
24K~36K 1140 598
48K~60K 1240 697
3.4.3 Hang indoor unit
1.Please refer to the upper data to locate the four positioning screw bolt hole on the ceiling. Be sure to mark
the areas where ceiling hook holes will be drilled.
2. Carry out the pipe and line operation in the ceiling after finishing the installation of the main body. While
choosing where to start the operation, determine the direction of the pipes to be drawn out. Especially in
case there is a ceiling, position the refrigerant pipes, drain pipes, indoor & outdoor lines to the connection
places before hanging up the machine.
3.The installation of hanging screw bolts.
• Cut off the roof beam.
• Strengthen the place that has been cut off, and consolidate the roof beam.
4.After the selection of installation location position the refrigerant pipes, drain pipes, indoor & outdoor wires
to the connection places before hanging up the machine.
5. Drill 4 holes 10cm (4”) deep at the ceiling hook positions in the internal ceiling. Be sure to hold the drill at a
90° angle to the ceiling.
a 90° angle to the ceiling.
6. Secure the bolt using the included washers and nuts.
7. Install the four suspension bolts.
8. Mount the indoor unit. You will need two people to lift and secure it. Insert suspension bolts into the unit’s
hanging holes. Fasten
them using the included washers and nuts
9. Overhang the indoor unit onto the hanging screw bolts with block. Position the indoor unit in a flat level by
using the level indicator, unless it may cause leakage.
