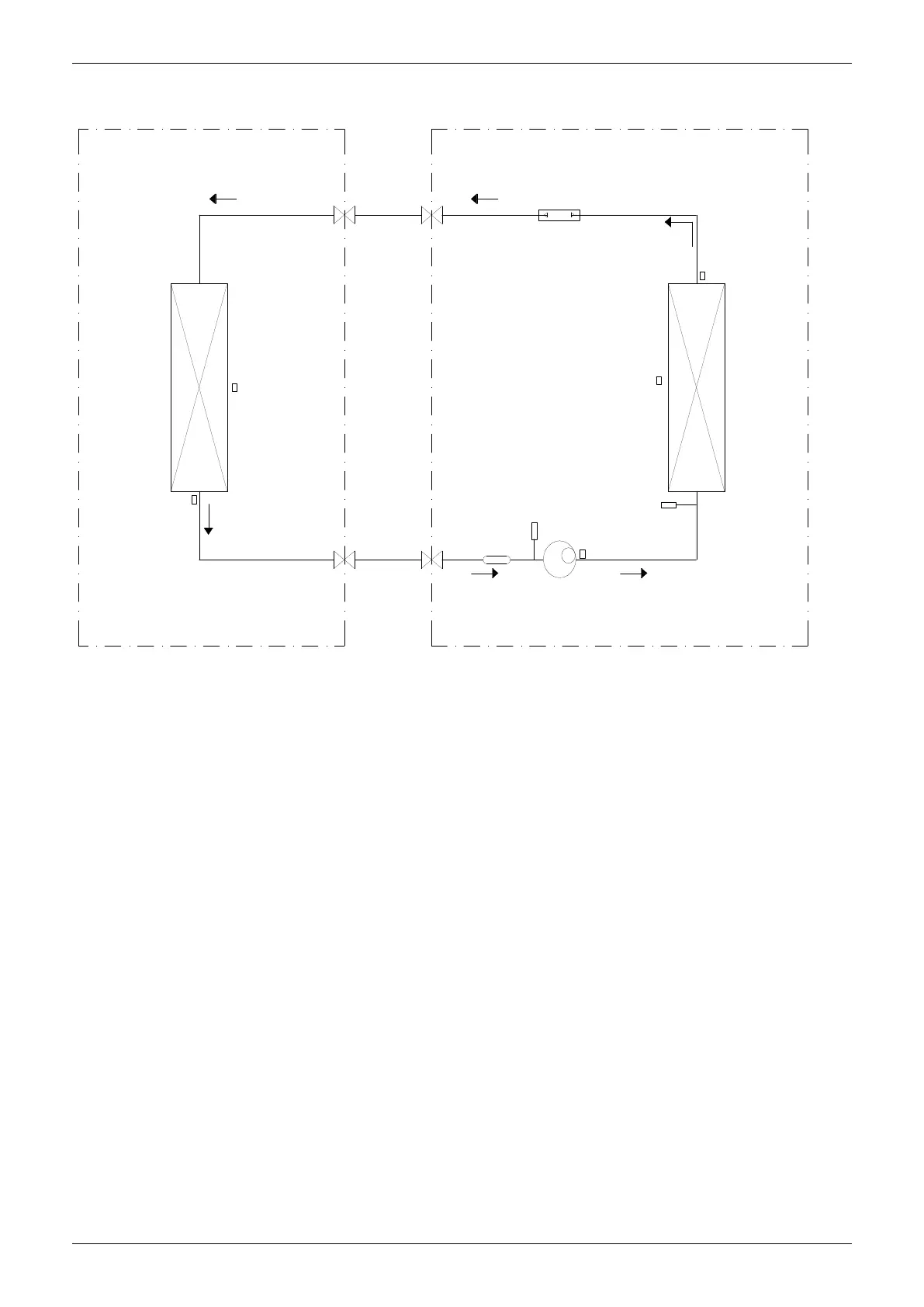

Piping Diagrams
176 Outdoor Units
MODU-48CN1-R, MODU-60CN1-R
INDOOR OUTDOOR
LIQUID SIDE
GAS SIDE
HEAT
EXCHANGE
(EVAPORATOR)
HEAT
EXCHANGE
(CONDENSER)
COMPRESSOR
T2 Evaporator
temp. sensor
T1 Room temp.
sensor
Throttle orifice
T3 Condenser
temp. sensor
T5 Discharge
temp. sensor
High pressure
switch
Low pressure
switch
ACCUMULATOR
T4 Ambient
temp. sensor
