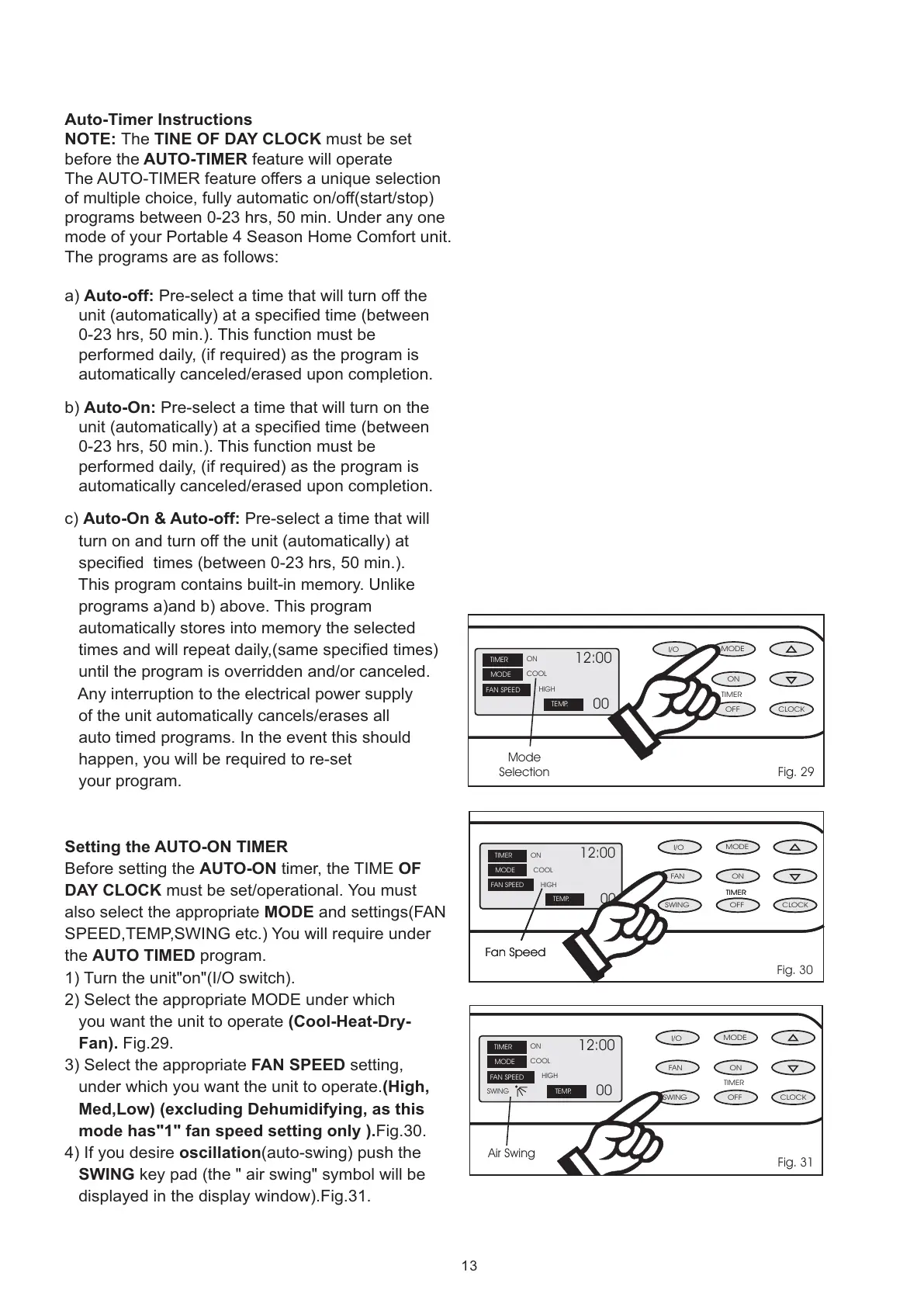

Auto-Timer Instructions
NOTE: TINE OF DAY CLOCKThe must be set
before the feature will operateAUTO-TIMER
The AUTO-TIMER feature offers a unique selection
of multiple choice, fully automatic on/off(start/stop)
programs between 0-23 hrs, 50 min. Under any one
mode of your Portable 4 Season Home Comfort unit.
The programs are as follows:
a) Pre-select a time that will turn off theAuto-off:
b) Pre-select a time that will turn on theAuto-On:
unit (automatically) at a specified time (between
unit (automatically) at a specified time (between
0-23 hrs, 50 min.). This function must be
0-23 hrs, 50 min.). This function must be
performed daily, (if required) as the program is
performed daily, (if required) as the program is
automatically canceled/erased upon completion.
automatically canceled/erased upon completion.
c) Pre-select a time that will
turn on and turn off the unit (automatically) at
specified times (between 0-23 hrs, 50 min.).
This program contains built-in memory. Unlike
programs a)and b) above. This program
automatically stores into memory the selected
times and will repeat daily,(same specified times)
until the program is overridden and/or canceled.
Any interruption to the electrical power supply
of the unit automatically cancels/erases all
auto timed programs. In the event this should
happen, you will be required to re-set
your program.
Before setting the timer, the TIME
must be set/operational. You must
also select the appropriate and settings(FAN
SPEED,TEMP,SWING etc.) You will require under
the program.
1) Turn the unit"on"(I/O switch).
2) Select the appropriate MODE under which
you want the unit to operate
Fig.29.
3) Select the appropriate setting,
under which you want the unit to operate.
Fig.30.
4) If you desire (auto-swing) push the
key pad (the " air swing" symbol will be
displayed in the display window).Fig.31.
Auto-On & Auto-off:
Setting the AUTO-ON TIMER
AUTO-ON OF
DAY CLOCK
MODE
AUTO TIMED
(Cool-Heat-Dry-
Fan).
FAN SPEED
(High,
Med,Low) (excluding Dehumidifying, as this
mode has"1" fan speed setting only ).
