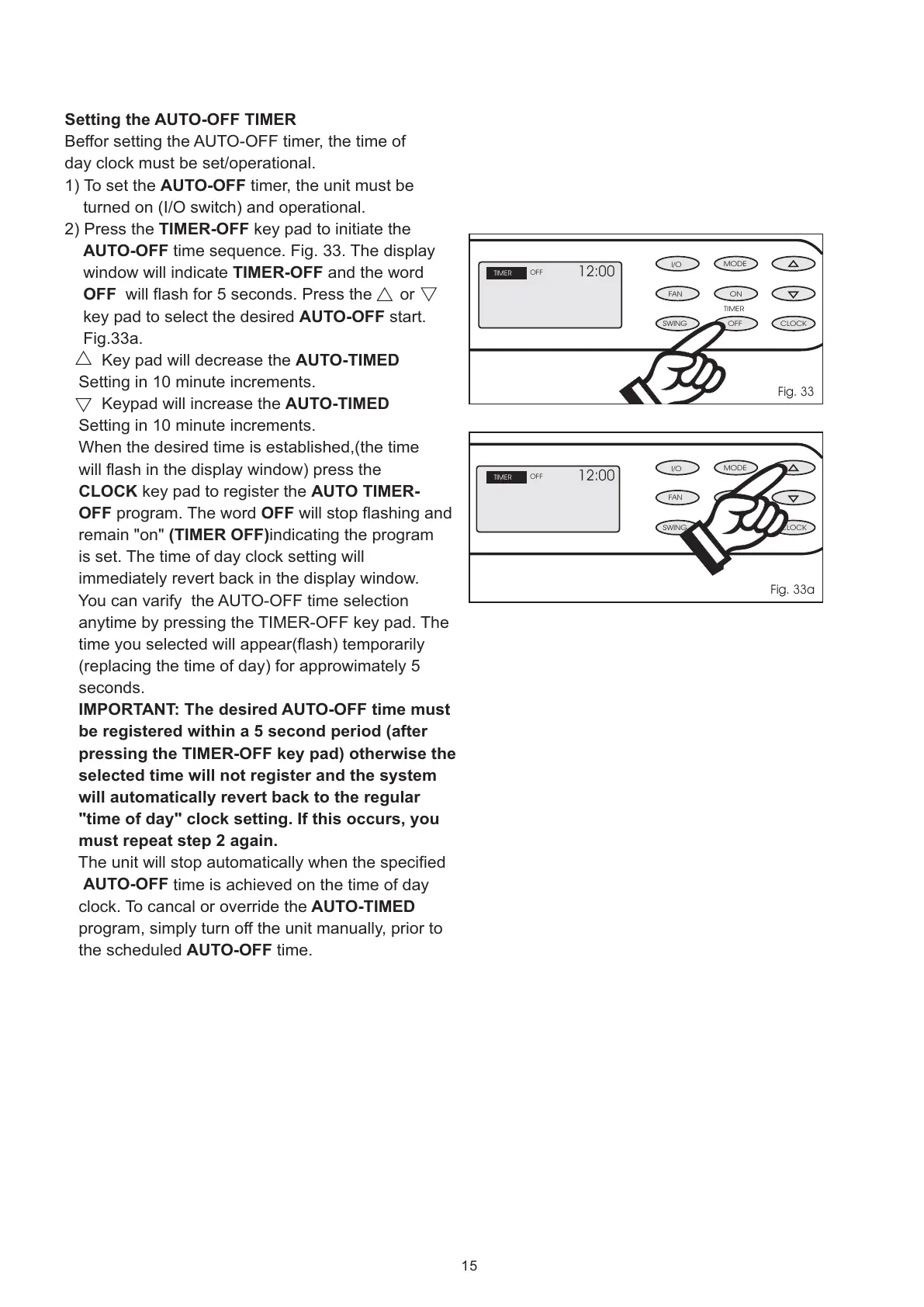

Setting the AUTO-OFF TIMER
AUTO-OFF
TIMER-OFF
AUTO-OFF
TIMER-OFF
OFF
AUTO-OFF
AUTO-TIMED
AUTO-TIMED
CLOCK AUTO TIMER-
OFF OFF
(TIMER OFF)
IMPORTANT: The desired AUTO-OFF time must
be registered within a 5 second period (after
pressing the TIMER-OFF key pad) otherwise the
selected time will not register and the system
will automatically revert back to the regular
"time of day" clock setting. If this occurs, you
must repeat step 2 again.
AUTO-OFF
AUTO-TIMED
AUTO-OFF
Beffor setting the AUTO-OFF timer, the time of
day clock must be set/operational.
1) To set the timer, the unit must be
turned on (I/O switch) and operational.
2) Press the key pad to initiate the
time sequence. Fig. 33. The display
window will indicate and the word
will flash for 5 seconds. Press the or
key pad to select the desired start.
Fig.33a.
Key pad will decrease the
Setting in 10 minute increments.
Keypad will increase the
Setting in 10 minute increments.
When the desired time is established,(the time
will flash in the display window) press the
key pad to register the
program. The word will stop flashing and
remain "on" indicating the program
is set. The time of day clock setting will
You can varify the AUTO-OFF time selection
anytime by pressing the TIMER-OFF key pad. The
time you selected will appear(flash) temporarily
(replacing the time of day) for approwimately 5
seconds.
The unit will stop automatically when the specified
time is achieved on the time of day
clock. To cancal or override the
program, simply turn off the unit manually, prior to
the scheduled time.
immediately revert back in the display window.
15
Fig. 33
Fig. 33a
