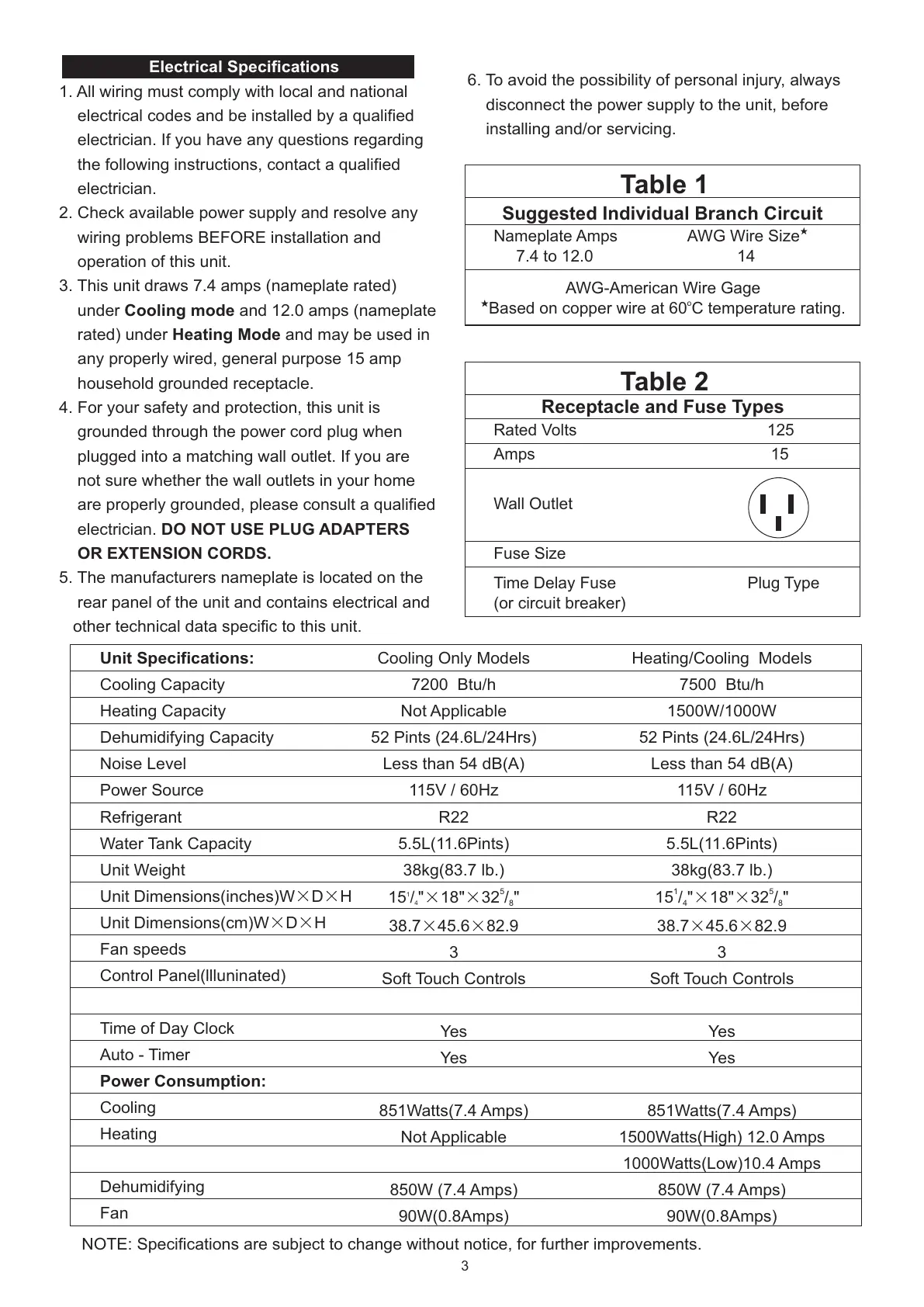

Midea MPA-08ER User Manual

1. All wiring must comply with local and national
electrical codes and be installed by a qualified
electrician. If you have any questions regarding
the following instructions, contact a qualified
electrician.
2. Check available power supply and resolve any
wiring problems BEFORE installation and
operation of this unit.
3. This unit draws 7.4 amps (nameplate rated)
under and 12.0 amps (nameplate
rated) under and may be used in
any properly wired, general purpose 15 amp
household grounded receptacle.
4. For your safety and protection, this unit is
grounded through the power cord plug when
plugged into a matching wall outlet. If you are
not sure whether the wall outlets in your home
are properly grounded, please consult a qualified
electrician.
5. The manufacturers nameplate is located on the
rear panel of the unit and contains electrical and
other technical data specific to this unit.
Cooling mode
Heating Mode
DO NOT USE PLUG ADAPTERS
OR EXTENSION CORDS.
6. To avoid the possibility of personal injury, always
disconnect the power supply to the unit, before
installing and/or servicing.
Electrical Specifications
Unit Specifications:
Power Consumption:
Cooling Capacity
Heating Capacity
Dehumidifying Capacity
Noise Level
Power Source
Refrigerant
Water Tank Capacity
Unit Weight
Unit Dimensions(inches)W D H
Unit Dimensions(cm)W D H
Fan speeds
Control Panel(llluninated)
Time of Day Clock
Auto - Timer
Cooling
Heating
Dehumidifying
Fan
NOTE: Specifications are subject to change without notice, for further improvements.
Cooling Only Models
7200 Btu/h
Not Applicable
52 Pints (24.6L/24Hrs)
Less than 54 dB(A)
115V / 60Hz
R22
5.5L(11.6Pints)
38kg(83.7 lb.)
15 / " 18" 32 / "
38.7 45.6 82.9
3
Soft Touch Controls
Yes
Yes
851Watts(7.4 Amps)
Not Applicable
850W (7.4 Amps)
90W(0.8Amps)
1
4
5
8
Heating/Cooling Models
7500 Btu/h
1500W/1000W
52 Pints (24.6L/24Hrs)
Less than 54 dB(A)
115V / 60Hz
R22
5.5L(11.6Pints)
38kg(83.7 lb.)
15 / " 18" 32 / "
38.7 45.6 82.9
3
Soft Touch Controls
Yes
Yes
851Watts(7.4 Amps)
1500Watts(High) 12.0 Amps
1000Watts(Low)10.4 Amps
850W (7.4 Amps)
90W(0.8Amps)
15
48
Table 1
Suggested Individual Branch Circuit
Receptacle and Fuse Types
Nameplate Amps
7.4 to 12.0
Rated Volts 125
AWG-American Wire Gage
Based on copper wire at 60 C temperature rating.
o
AWG Wire Size
14
Table 2
Wall Outlet
Fuse Size
Time Delay Fuse Plug Type
(or circuit breaker)
Amps 15
3

Midea MPA-08ER Specifications

General

Brand	Midea
Model	MPA-08ER
Category	Air Conditioner
Language	English
