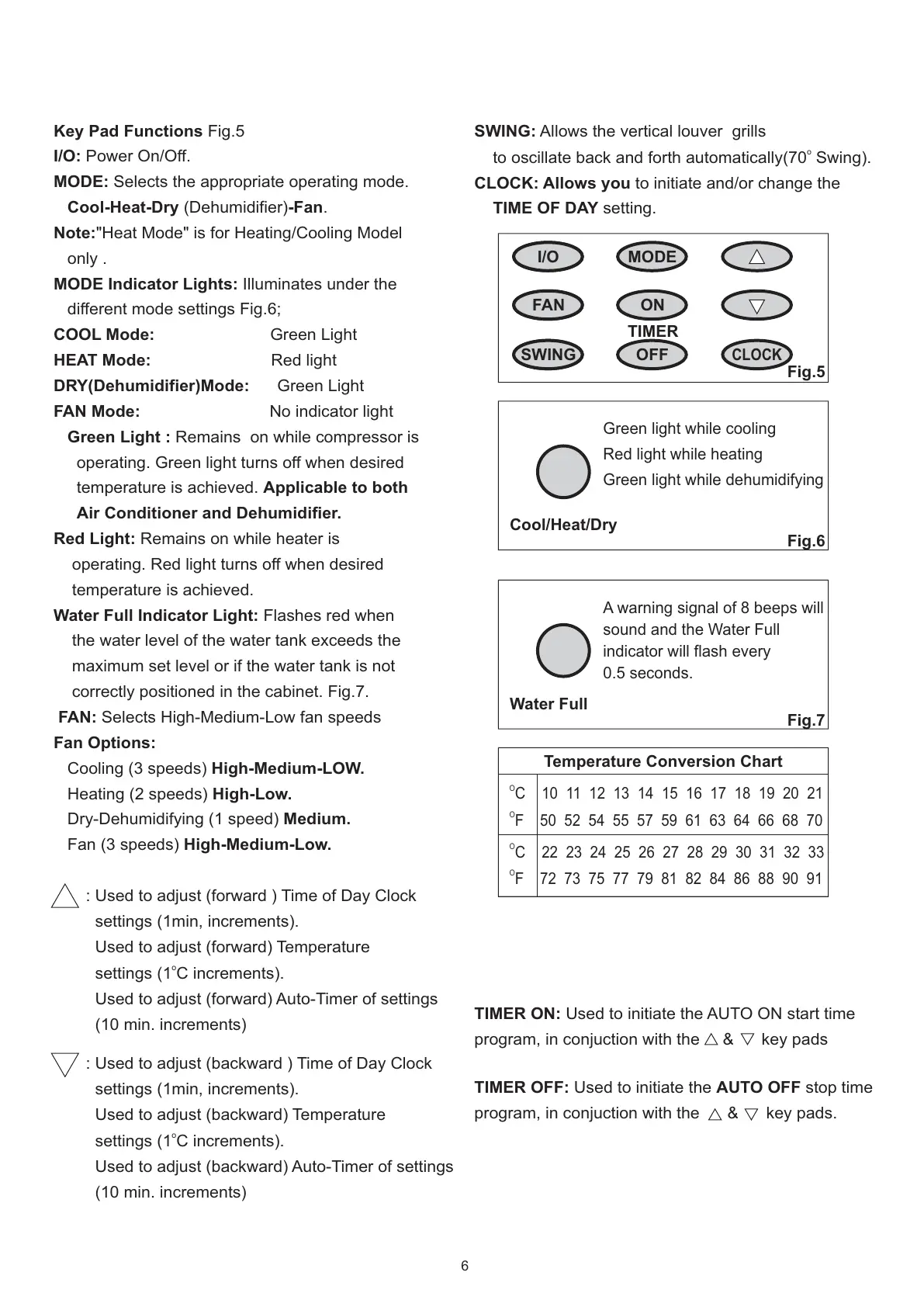

Key Pad Functions Fig.5
I/O: Power On/Off.
MODE: Selects the appropriate operating mode.
(Dehumidifier) .Cool-Heat-Dry -Fan
Note:"Heat Mode" is for Heating/Cooling Model
only .
MODE Indicator Lights: Illuminates under the
different mode settings Fig.6;
COOL Mode: Green Light
HEAT Mode: Red light
DRY(Dehumidifier)Mode: Green Light
FAN Mode: No indicator light
Remains on while compressor isGreen Light :
operating. Green light turns off when desired
temperature is achieved. Applicable to both
Air Conditioner and Dehumidifier.
Red Light: Remains on while heater is
operating. Red light turns off when desired
temperature is achieved.
Water Full Indicator Light: Flashes red when
the water level of the water tank exceeds the
maximum set level or if the water tank is not
correctly positioned in the cabinet. Fig.7.
Selects High-Medium-Low fan speedsFAN:
Fan Options:
Cooling (3 speeds) High-Medium-LOW.
Heating (2 speeds) High-Low.
Dry-Dehumidifying (1 speed) Medium.
Fan (3 speeds) High-Medium-Low.
: Used to adjust (forward ) Time of Day Clock
: Used to adjust (backward ) Time of Day Clock
settings (1min, increments).
settings (1min, increments).
Used to adjust (forward) Temperature
Used to adjust (backward) Temperature
settings (1 C increments).
o
settings (1 C increments).
o
Used to adjust (forward) Auto-Timer of settings
Used to adjust (backward) Auto-Timer of settings
(10 min. increments)
(10 min. increments)
SWING:
CLOCK: Allows you
TIME OF DAY
Allows the vertical louver grills
to oscillate back and forth automatically(70 Swing).
to initiate and/or change the
setting.
o
TIMER ON: Used to initiate the AUTO ON start time
program, in conjuction with the & key pads
TIMER OFF: AUTO OFFUsed to initiate the stop time
program, in conjuction with the & key pads.
I/O
FAN
SWING
MODE
ON
TIMER
OFF CLOCK
Fig.5
Fig.6
Fig.7
Cool/Heat/Dry
Water Full
Green light while cooling
Red light while heating
Green light while dehumidifying
A warning signal of 8 beeps will
sound and the Water Full
indicator will flash every
0.5 seconds.
Temperature Conversion Chart
O
O
C 101112131415161718192021
F 505254555759616364666870
O
O
C 222324252627282930313233
F 727375777981828486889091
6
