Service Manual_2018-V1.0
26

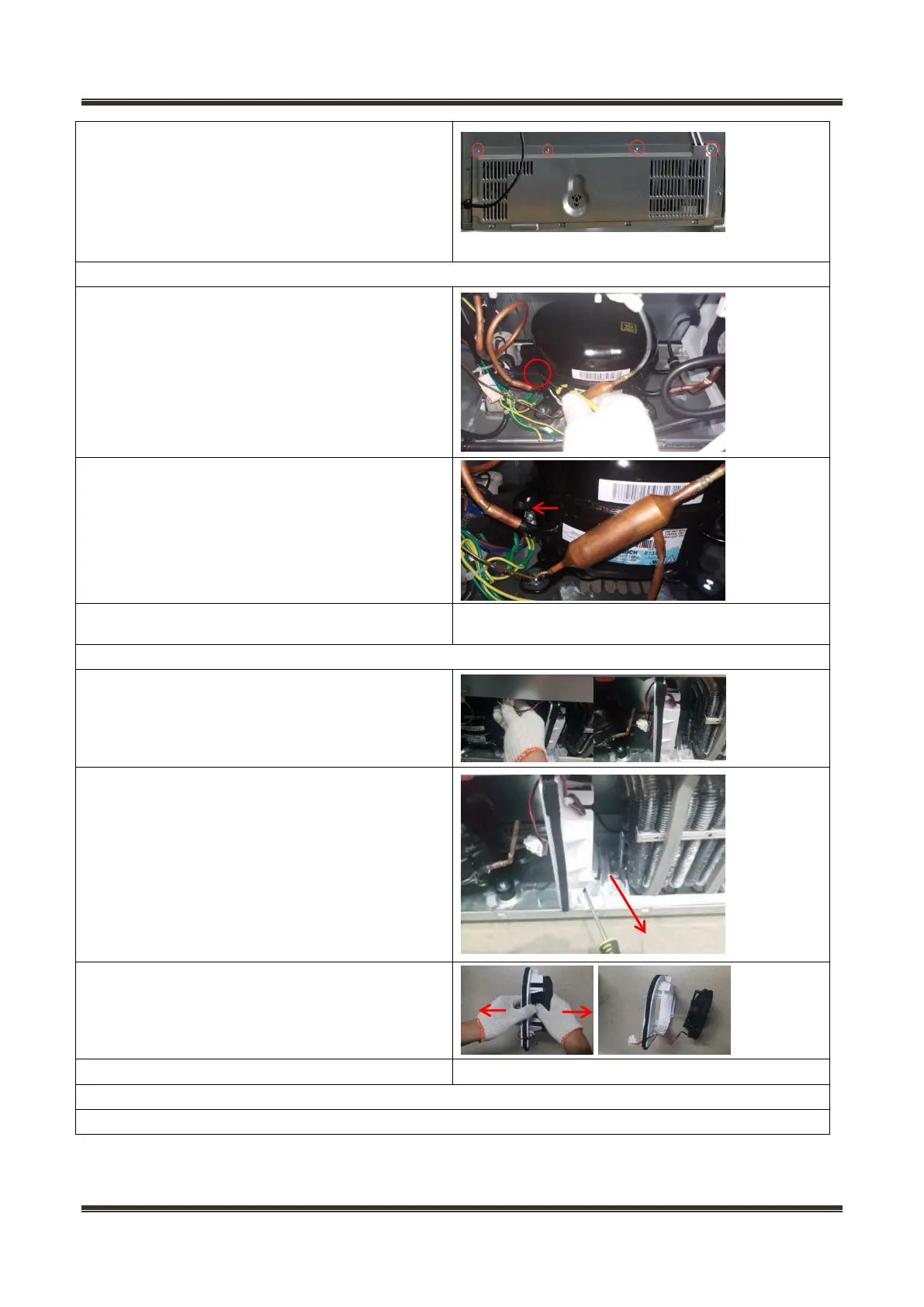

1Remove by cross screwdriver the screws fixing
back cover plate of compressor chamber
anticlockwise;
2Take the back cover plate of compressor
chamber upward.
Starter and protector of the compressor
1Prize up the protector cover from the red mark;
2Remove the clipping strip;
Slowly pull it out;
3The reverse process can complete installation.
/
Condenser fan motor
1) unplug the wiring connector of condenser fan
motor;
2) use screwdriver to pry up the
bottom,meanwhile pull it outwards;
3) dismantle the condenser fan motor from the
base.
Standby condenser
None
Piping system in the compressor case
