07
Step

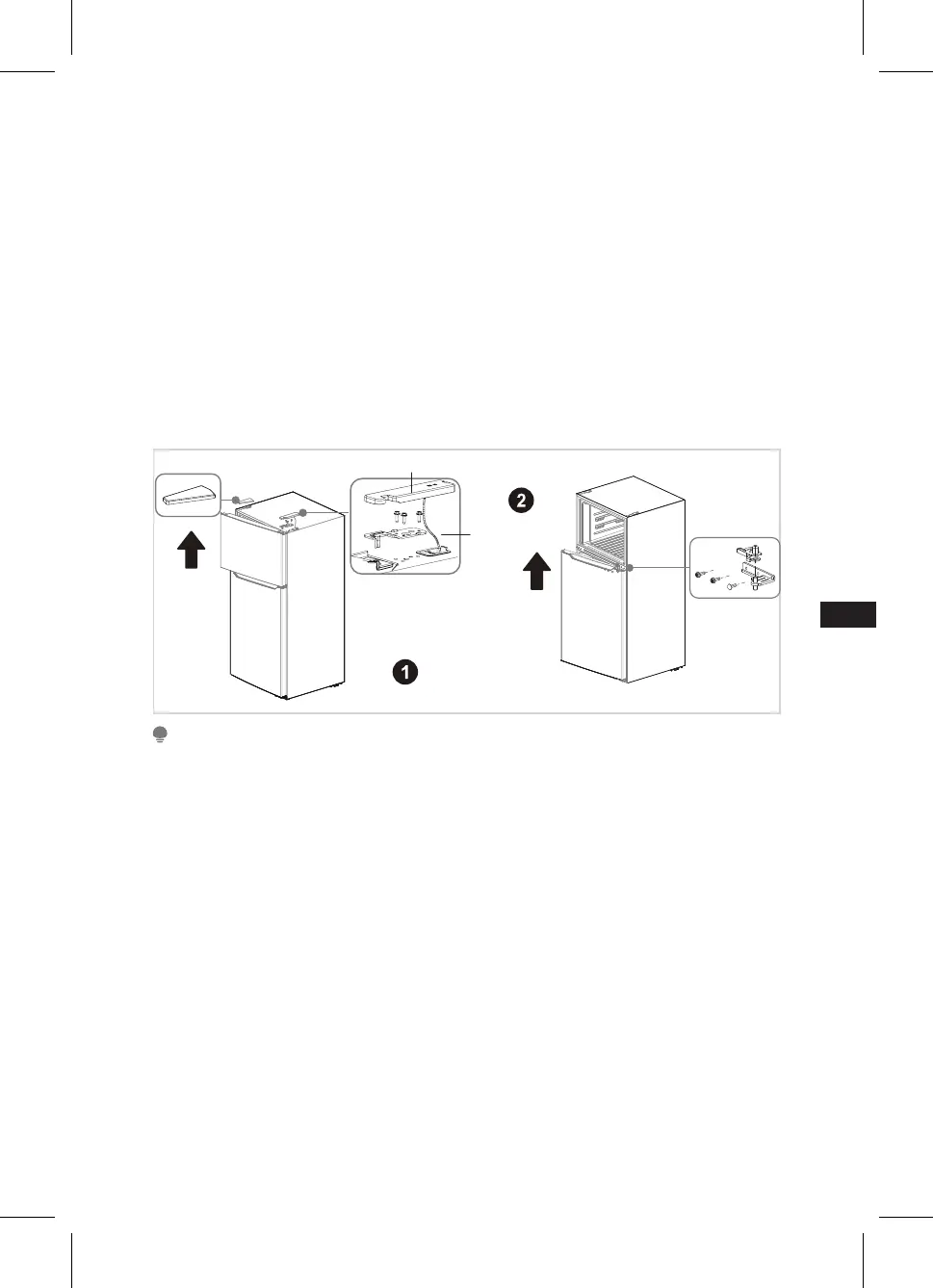

1. Unplug your refrigerator and remove all food from the door shelves.
2. Remove the cover plate and the top hinge cover, then unscrew and remove the top
hinge. Keep the screws to reuse.
3. When the user removes the top hinge cover, note that the hinge cover can not be
directly removed, there is a sensor wiring harness connected to the box on the
inside side of the hinge cover, it needs to be slowly dismantled, and then take out
the sensor wiring harness from the inside side of the hinge cover, and attach the
cover on nally.
4. Lift the freezer door up and away from your refrigerator.
5. Unscrew the three screws holding the center hinge, remove the hinge, then lift
the refrigerator door up and away from your refrigerator. Save the screws to
reuse and store the hinge in a safe place in case you need to reverse the door
position again.
ATTENTION
Images show a refrigerator that opens on the left side. Your refrigerator may open on the
right side.
6. Remove the adjusting foot and screw installed on the bottom hinge before
removing the bottom hinge.
7. Unscrew the three screws holding the bottom hinge, then remove the bottom hinge
from the refrigerator.
8. Unscrew the hinge pin from the bottom hinge and reattach it to the other hole in
the hinge pin, then secure the bottom hinge to the opposite side of the refrigerator
using the screws you removed previously.Remove the hole caps and plastic
bushings from the top of the freezer and refrigerator doors. Save them for the next
step.
Center hinge
Cover plate
Top hinge cover
Ambient
sensor
To Next Page
