Air-cooled Package DM13-01.01.16en
64 Service manual
2.2 Installation of Floor-standing
2.2.1 Installation Space
For ensure the proper installation
Select the enough solid and level sites.

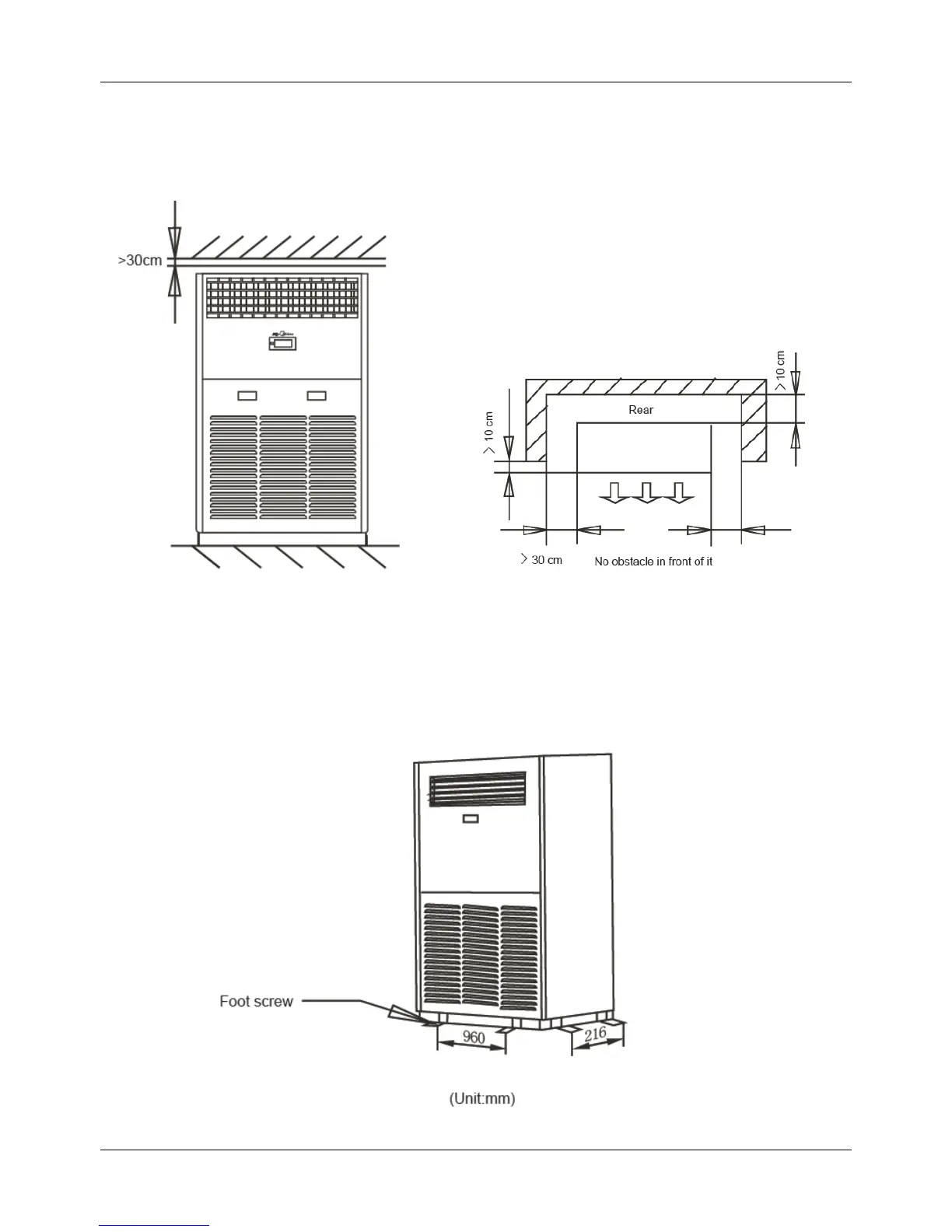

Ensure enough space required for installation and maintenance. (Fig-10and Fig-11)
Fig-10 Fig-11
For anti-fall down, please conduct the follow measures:
See Fig-12 to fix the feet on the floor after select a proper place for installation, since the height of this unit
casing is very high.
The right and left sides as well as rear can be fixed, please select the unit fixed measure as per to your
actual installing ambient.
Fig-12
