3.3 Convey Outdoor Unit

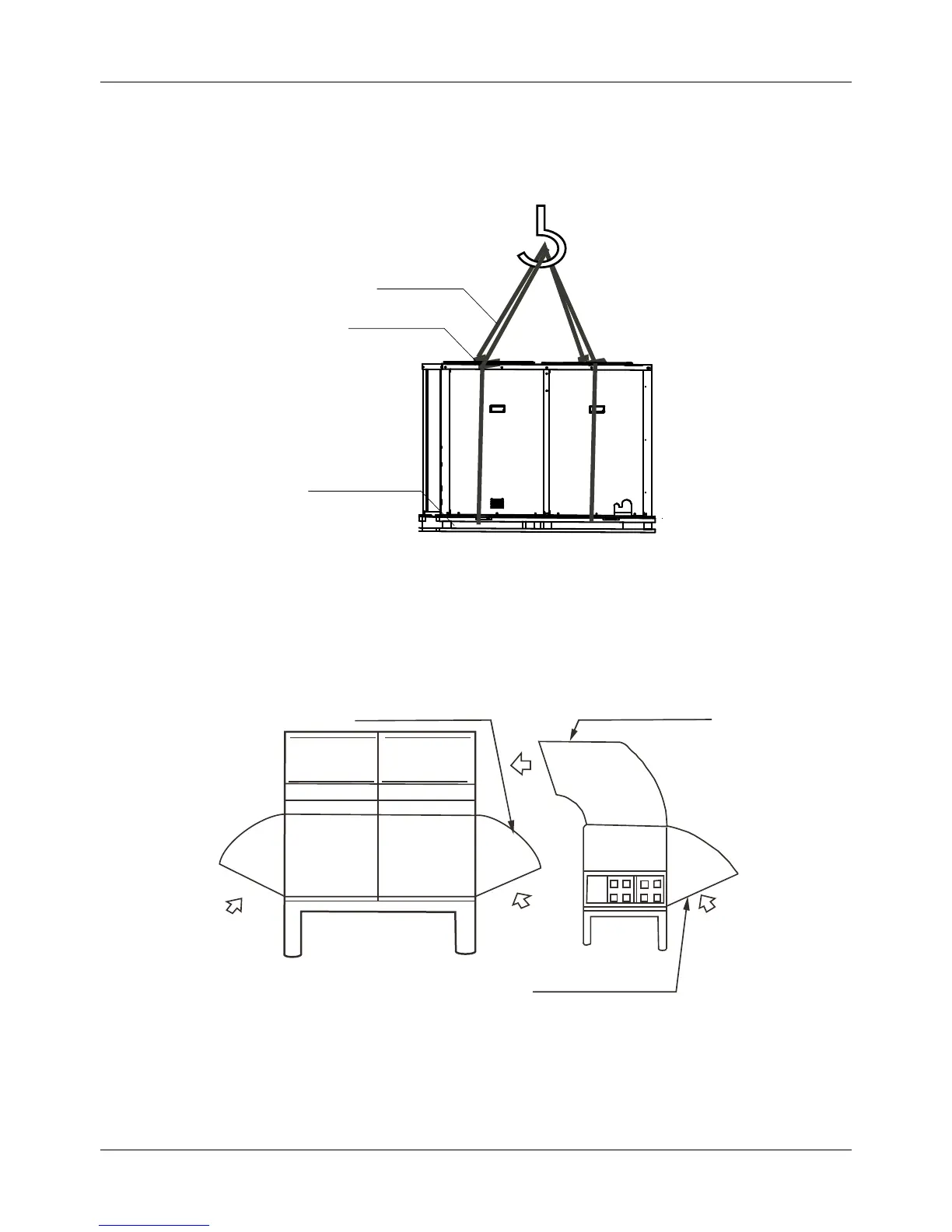

 Use 4 steel ropes of a Ф6mm or bigger size to hoist the outdoor unit and convey it into the room.
 In order to prevent scratch and deformity the outdoor unit, apply a guard board to the surface of contact
between the steel ropes and the air conditioner.
 Remove the cushion for use in the transport after finishing the transport. (Fig-18)
 Fork truck can be used for conveying.
Steel wire
Guard board
Base and bracket
Holes for fork truck
Fig-18
3.4 Snow protection facilities must be installed in the snowfall areas. (Fig-19)
In case the snow protection facilities are incomplete, faults may occur. In order to prevent influence
caused by snow, set up raised pavilion, and install snow protection sheds at the air inlet and air outlet.
Snow protection
shed at the air inlet
Snow protection
s
h
e
d
a
tth
e
a
ir inl
e
t
S
now protection
shed at the air outlet
Fig-19
