Midea NT15-13L

维修手册 Service Manual, 2017 v1.0
23 / 25

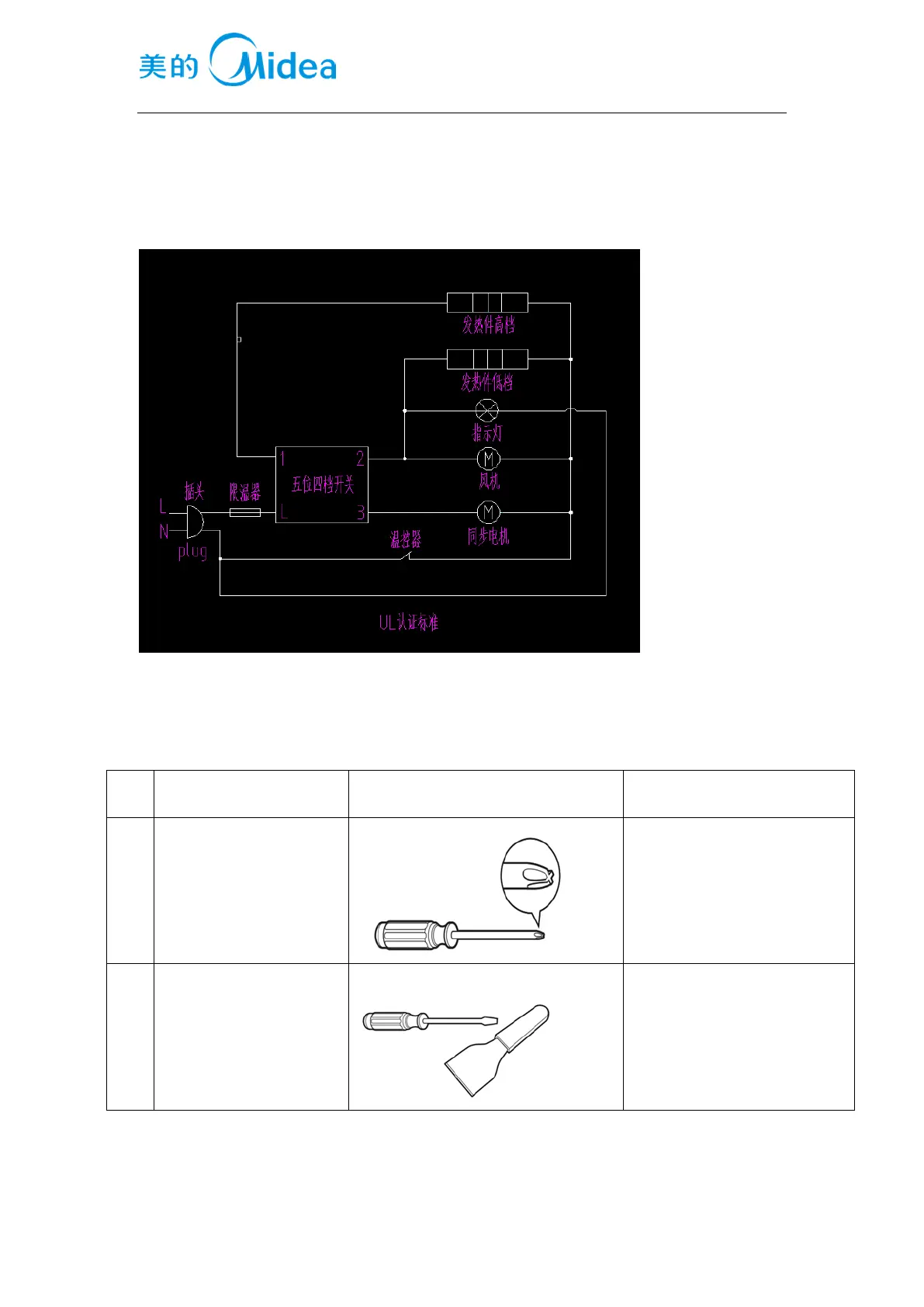

5 附录 Appendix:
5.1 整机接线图 Electrical Schematic Diagram
5.2 暖风机维修常用工具、设备和材料 refrigerator maintenance tooling and equipment
and material
工具 Tooling
No.
名称 Name
图片 Photo
主要用途 Main Usage
1
十字螺丝刀 Phillips
screwdriver
拆卸螺钉 screw assemble and
disassemble
2
平口螺丝刀/小铲刀
slotted screwdriver/scraper
拆卸螺钉和铆钉 screw and
rivet assemble and disassemble
