MidNite Solar Battery Monitor MNBCM Rev D 2
Status Display
One of 10 LEDs light to show present battery capacity. Capacity is based on
battery voltage.
Extended status is displayed using one of the three LEDs located under the
tinted window. Use the decal on the cover as a key to explain their meaning.

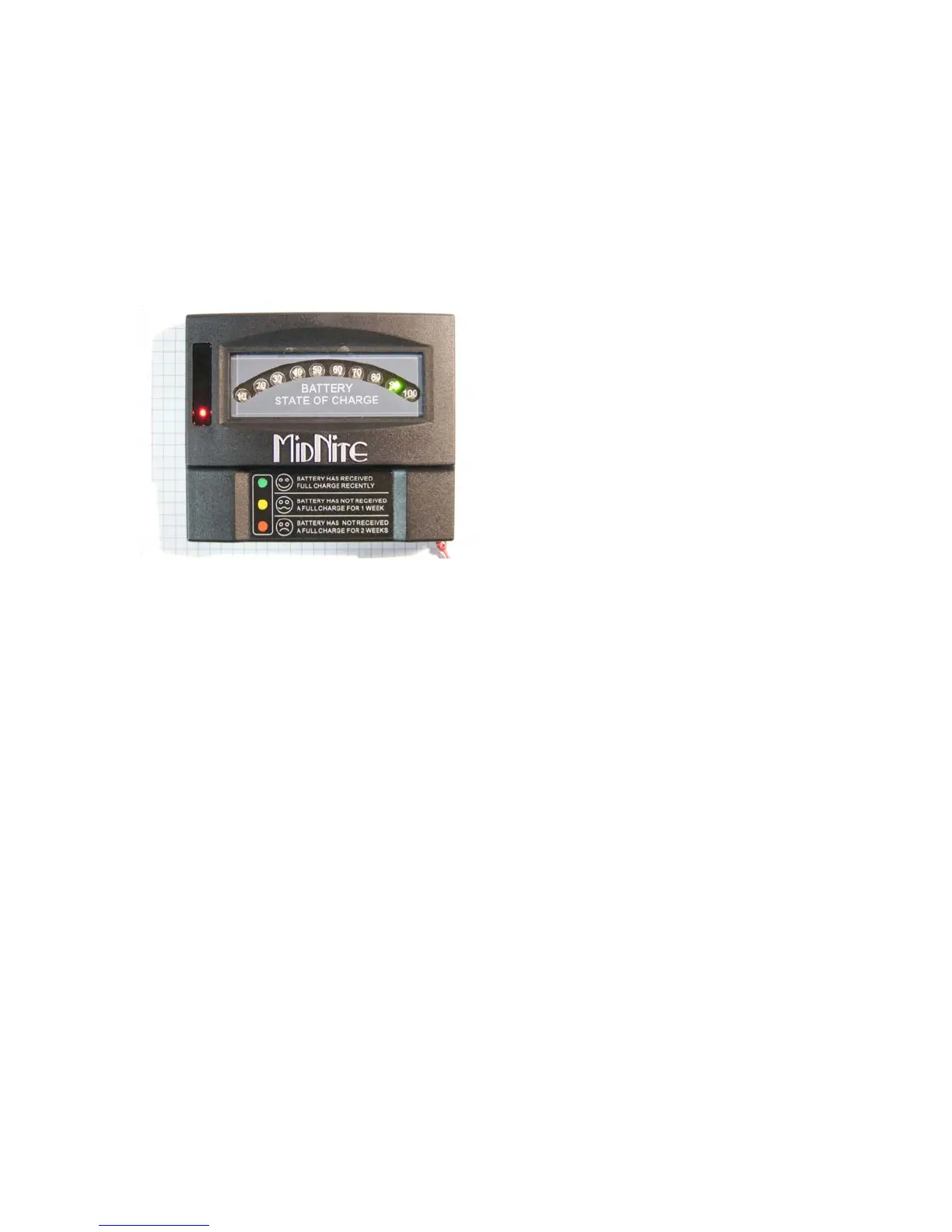

On the above display the green LED indicates the battery has 90% of full charge.
The red LED behind the tinted cover indicates the battery has not been fully
charged for at least 2 weeks.
Nominal Input Voltage Range 12V, 24V, 36V, 48V
Absolute Maximum Input 70V
Reverse Polarity Protection (max) 100V
Average Current 15 mA (at 12V)
Charge Status LEDs 10
Extended Charge Status LEDs 3
Physical Size 4.75” x 3.76” x 0.85”
Humidity 5 – 95% Non Condensing
Indoor Installation Only in Dry Area Protected from direct sun.
Battery Monitor must be installed within 30 ft. of battery bank.
MidNite Solar Inc. midnitesolar.com
17722 67
th
Ave NE Ph: 425-374-9060
Arlington, WA 98223 Fax: 360-691-6882
