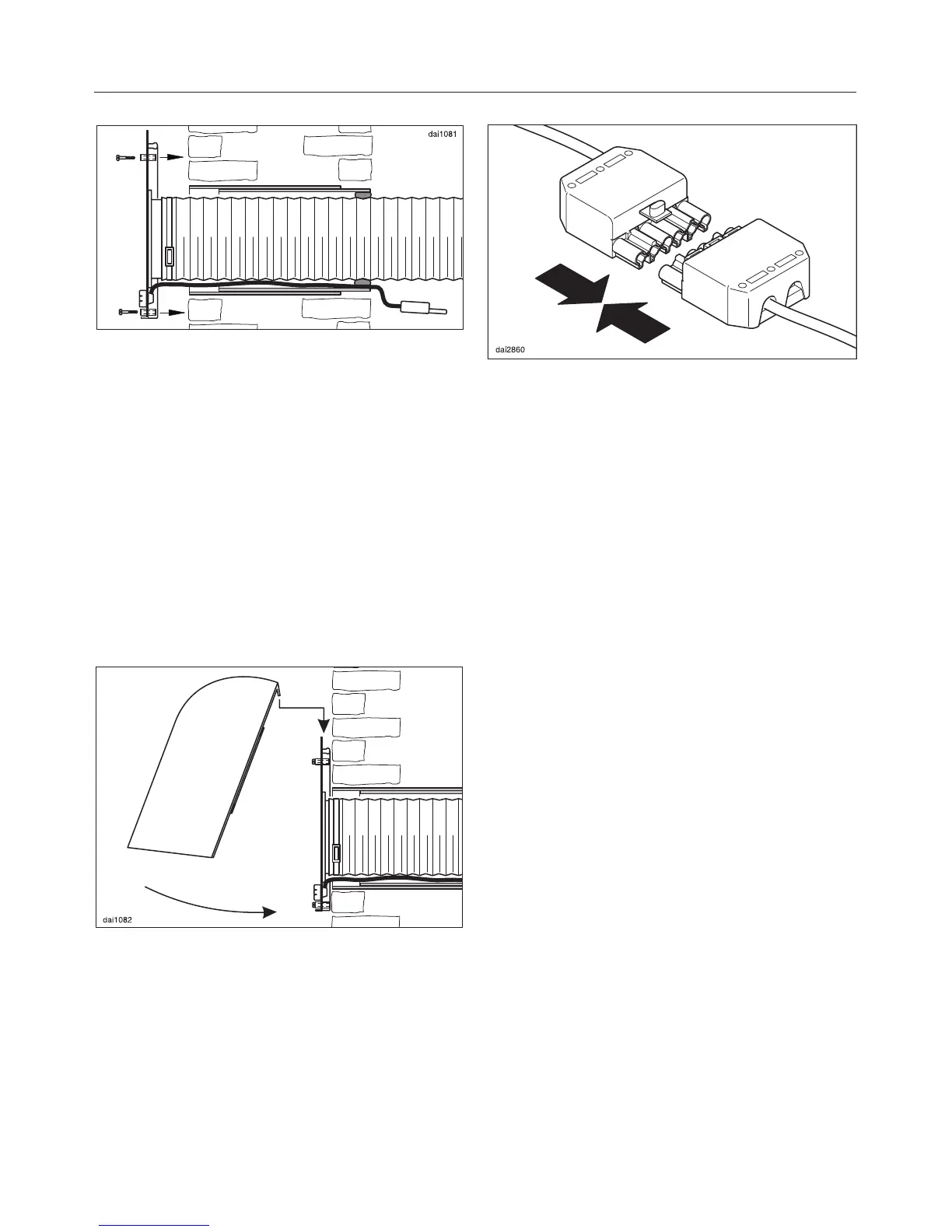

Feed the flexible ducting through the
telescopic wall pipe and secure it to
the stub on the motor unit fixing
bracket with a hose clip.
^
Secure the bracket to the outside wall
with 3 screws.
^ Extend the flexible ducting from the
inside of the wall along the wall pipe
and seal the gap between the
ducting and the wall pipe with
jointing compound.
^
Fit the motor unit over the bracket
and secure it in position.
^
Connect the control cable plug
connectors.
^
Use the extension cable supplied to
lengthen the cabling if necessary.
^ If it is still not long enough, please
refer to the notes in "Electrical
connection".
Installation
10
