Miele CVA615 Dimensions

NOTE: Drawing is not to scale.
SPECIFICATION SHEETS 010803

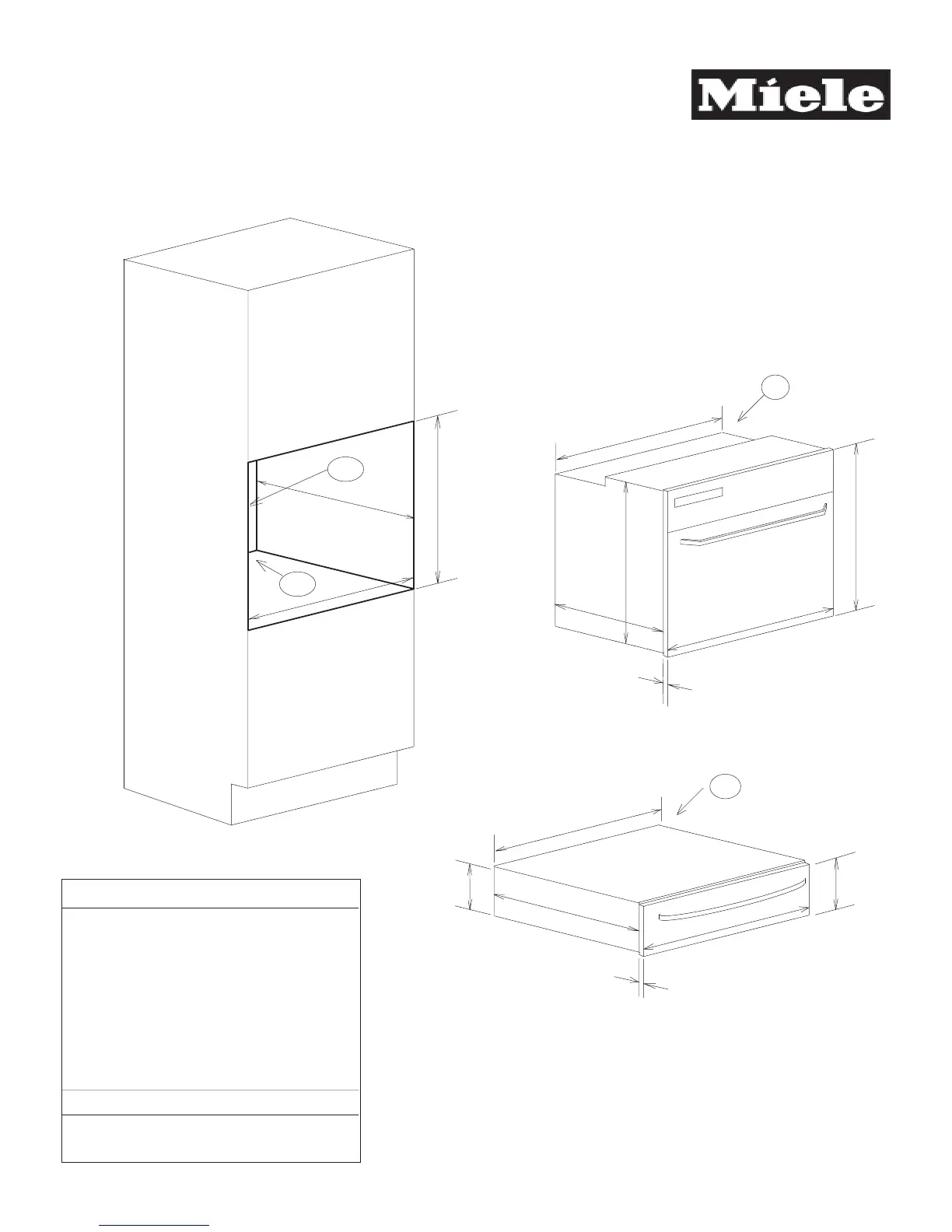

Product and Cut-out Dimensions
Plate Warmer and Steam Oven
EGW 601/14 & DG155
22 1/16" min.
O1
23 3/8" - 23 7/16"
22 1/16" - 22 3/8"
Pigtail electrical main connects left
back side .
208-240 Volt - 20 Amp - 3-wire
conenction box (2 lives / ground).
Locate 38" - 50" from floor.
Plugged electrical main connects left
back side (NEMA 5-15P)
110 Volt - 15 Amp - 3 Wire outlet
(live / nuetral / ground - NEMA 5-15R)
Locate as above
E1 -
O1 -
E2-
02 -
Location Codes
• All installations must be done in
accordance with local codes.
Notes
O2
5 9/ 16"
20 1/2"
23 7/ 16"
7/ 8"
5"
21 3/16"
E2
17 9/ 16" *
21 9/16"
13"
23 7/ 16"
7/ 8"
17 15/ 16" *
E1

Miele CVA615 Specifications

General

Brand	Miele
Model	CVA615
Category	Coffee Maker
Language	English
