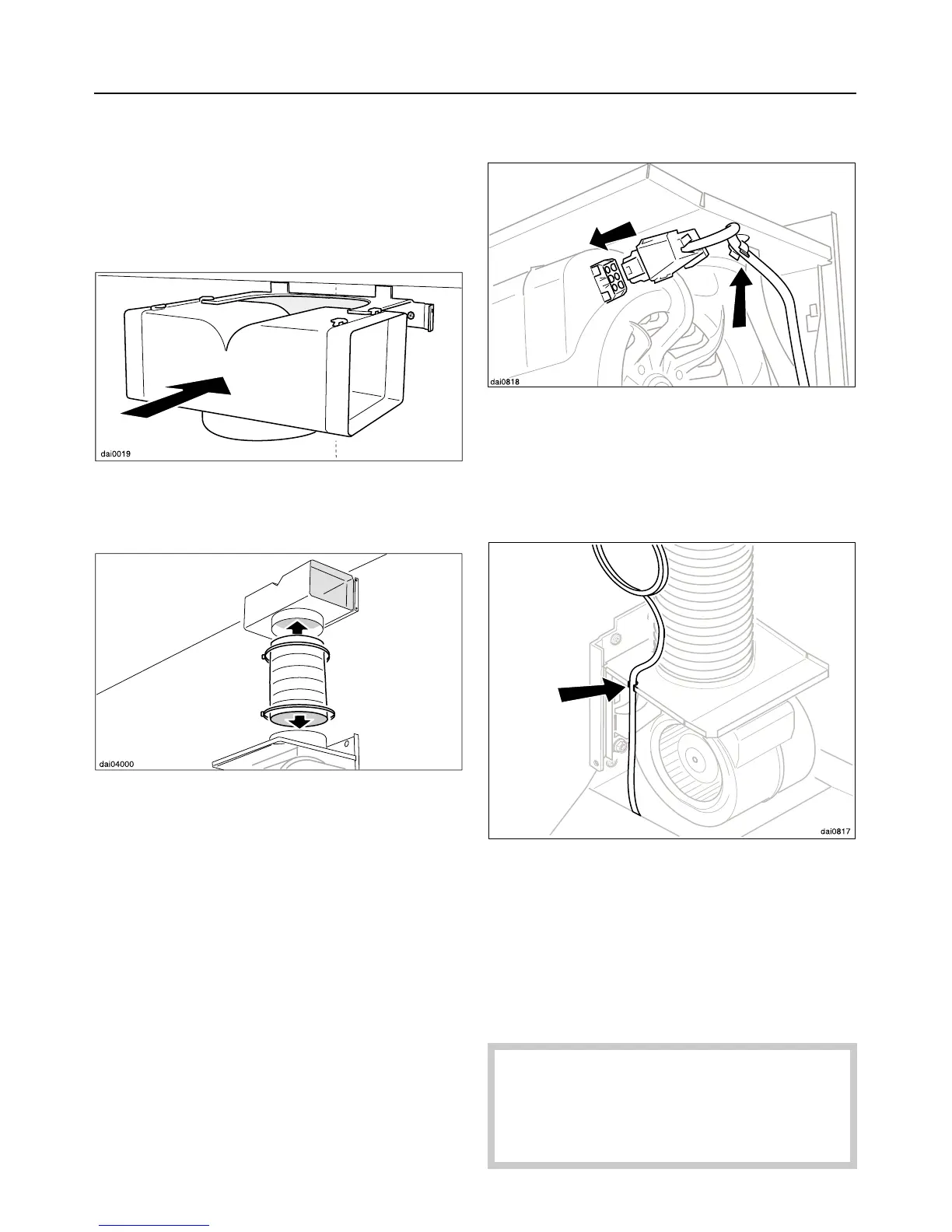

Recirculation
If site conditions are not suitable for the
cooker hood to be used for air extrac
-
tion the appliance must be connected
for recirculation.
^ Push the directional unit on to the top
retaining plate.
^
Secure the flexible hose supplied to
the directional unit and to the exhaust
connection on the motor unit using
hose clips.
^
Fit the charcoal filters (see "Cleaning
and Care").
Electrical connection
^
First push the 6 pole plugs on the
canopy connection cable into the ter
-
minals on the motor unit.
^ Push the cable into the groove shown.
^
Pass the connection cable up to the
left of the motor and through the ca
-
ble guide.
^
Connect the appliance to the mains
via a fused spur or fused socket as
appropriate.
Before connecting the appliance
read the safety notes in "Warning
and Safety Instructions" and in the
"Electrical connection" section.
Installation
22
