Installation
27
a
1 exhaust socket for exhaust
ducting 150 mm.
b
1 reducing collar for exhaust
ducting 125mm (recommended
for connection to existing 125mm
ducting only).
c
Conversion kit for recirculation
mode (the conversion kit is not
supplied, but is available as an
optional accessory - see "Technical
data"). The kit contains an exhaust
grille and flexible aluminium hose
with hose clips.

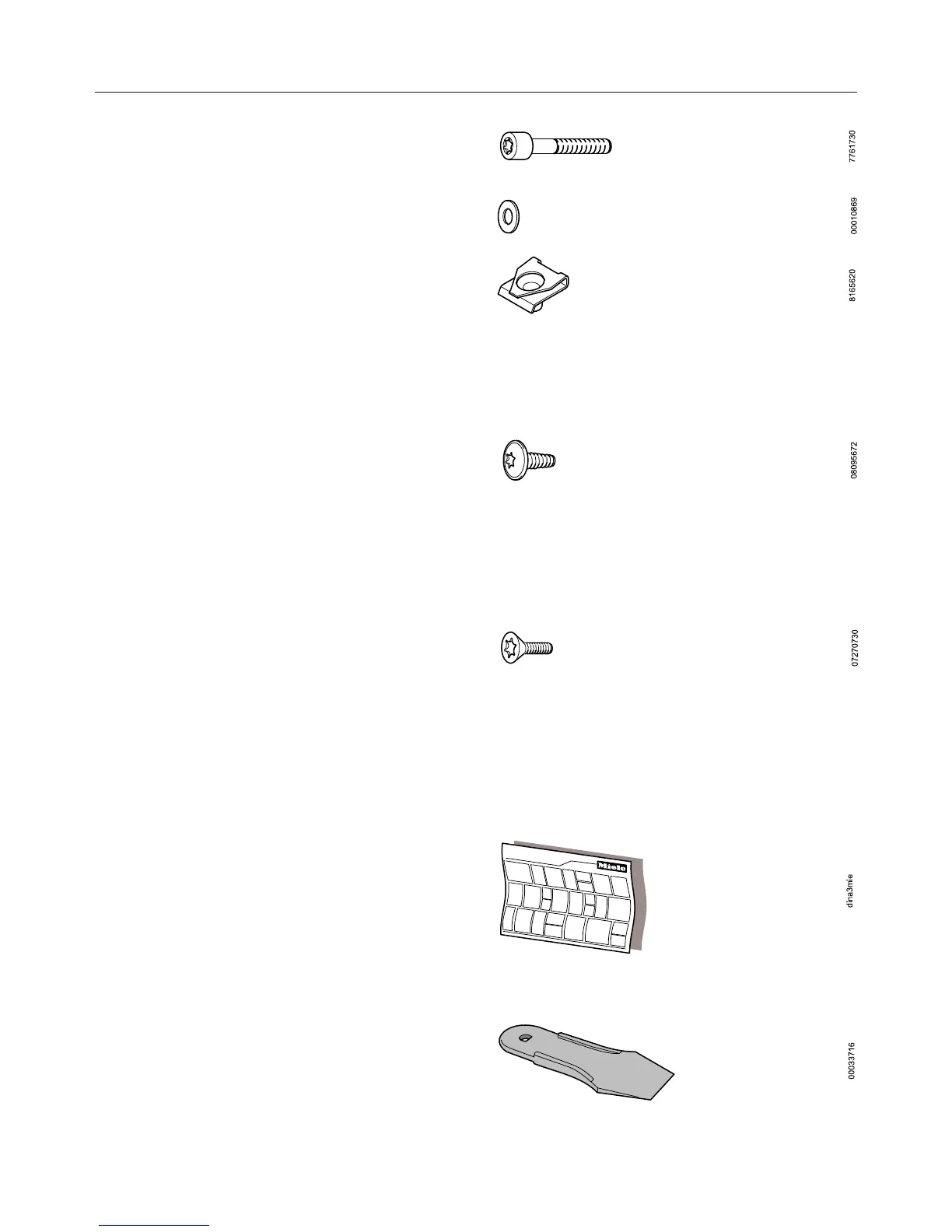

4 M5 x 40 mm screws, 4 washers, 4
M5 nuts for securing the rangehood to
an interim shelf.
10M4x8mm screws for securing the
rangehood and with EXT models for
securing flat ducting and the cover to
the casing.
4M4x12mm screws for additional
securing of the rangehood to uneven
surfaces.
