Installation
35
a
Suction side
b
Motor can be rotated. Exhaust socket can be fitted at the top or the sides in
any dir
ection.
c
The motor can be freely positioned. Connection to the appliance is via the
exhaust ducting and the connection cable. Connection cable length: max.
1800 mm.
d
If the cooker hood is being installed near to a wall, a minimum distance of at
least 50 mm must be obser
ved so that the edge extraction panels and the
grease filters can be removed easily.
e
The cooker hood is secured in the cut-out by clamps. This requires that the
ceil
ing is made of a solid material, such as wood. Make sure that the material is
strong enough to bear the weight of the cooker hood. There must be a
minimum distance of 40 mm between the areas around the clamps and any
structures or components, such as struts or cables.

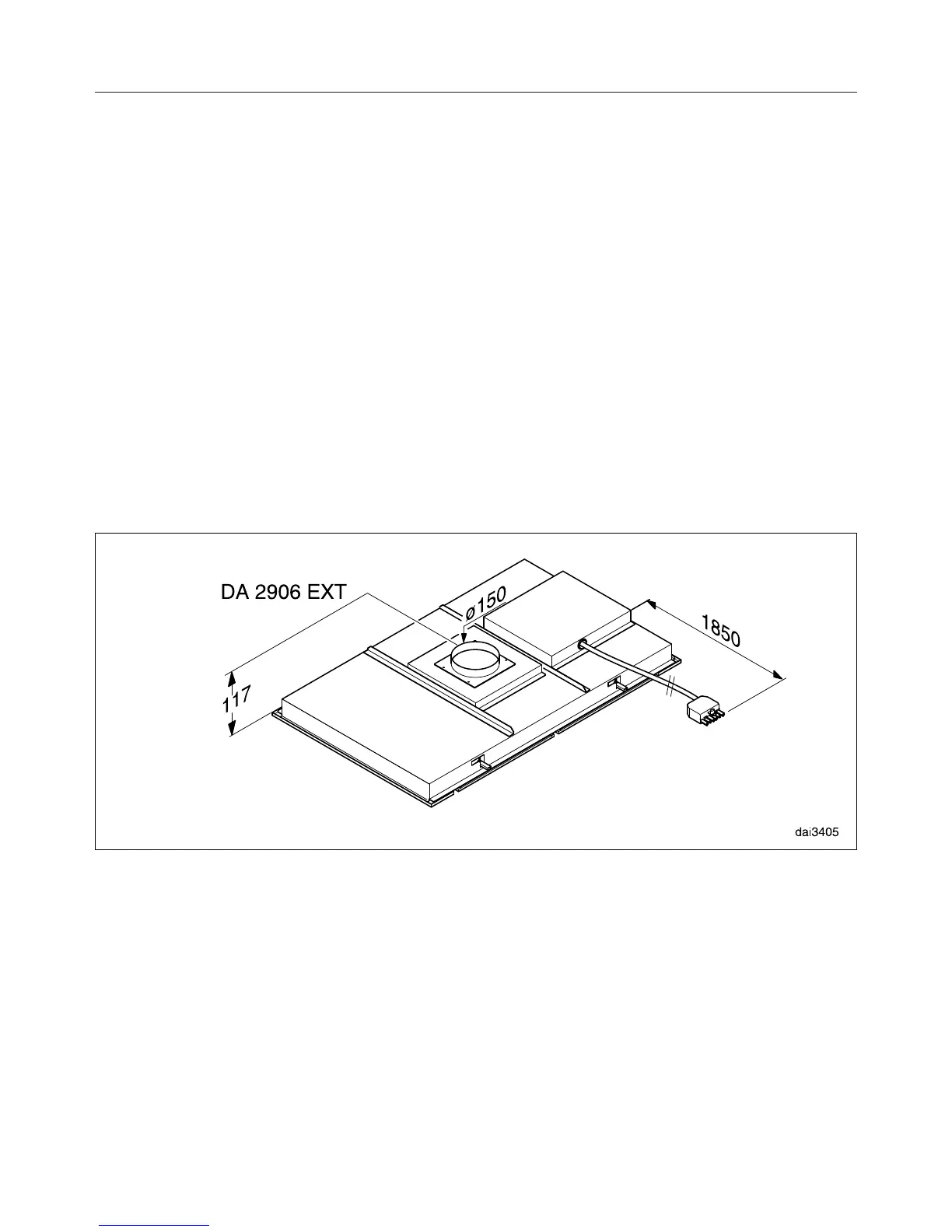

DA 2906 EXT - different appliance dimensions
