Fitting the joystick

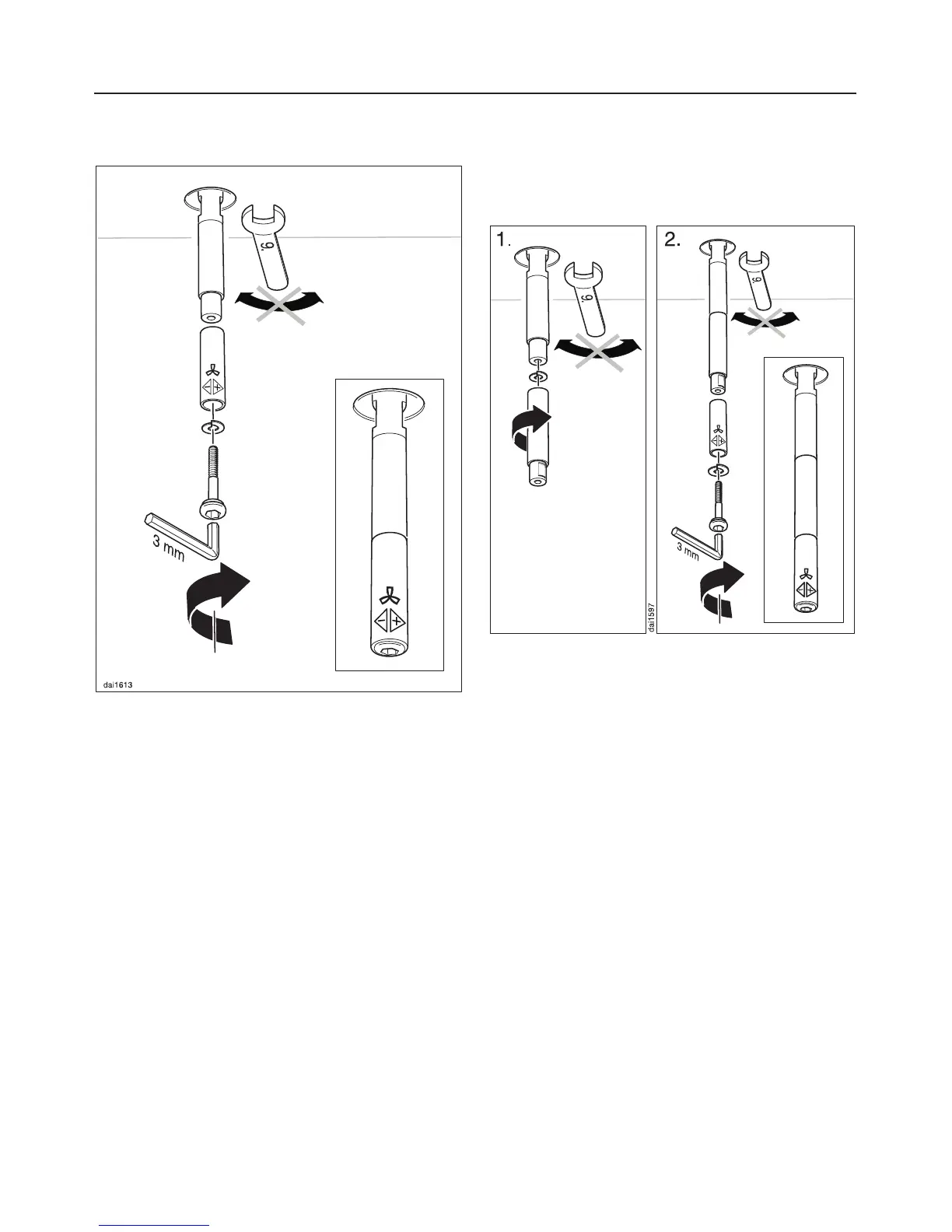

^ Fit the lower section of the joystick
onto the stub and lightly secure in
position with the screw supplied and
a spring washer. Do not tighten the
screw yet!
^
Turn the lower section around, until
the m symbol is facing the front.
^
Then tighten the screw with a 3 mm
allen key. Whilst doing so counterhold
the base of the joystick with an SW 9
spanner, but do not turn.
Joystick extension
The joystick can be extended if
required.
^ Whilst counterholding the base of the
joystick with an SW 9 spanner (do not
turn), secure the joystick extension to
the stub using a spring washer in
between them, as shown above.
^
Then attach the lower section of the
joystick as previously described, turn
the m symbol to the front and then
tighten the screw up.
Installation
25
