Installation
29

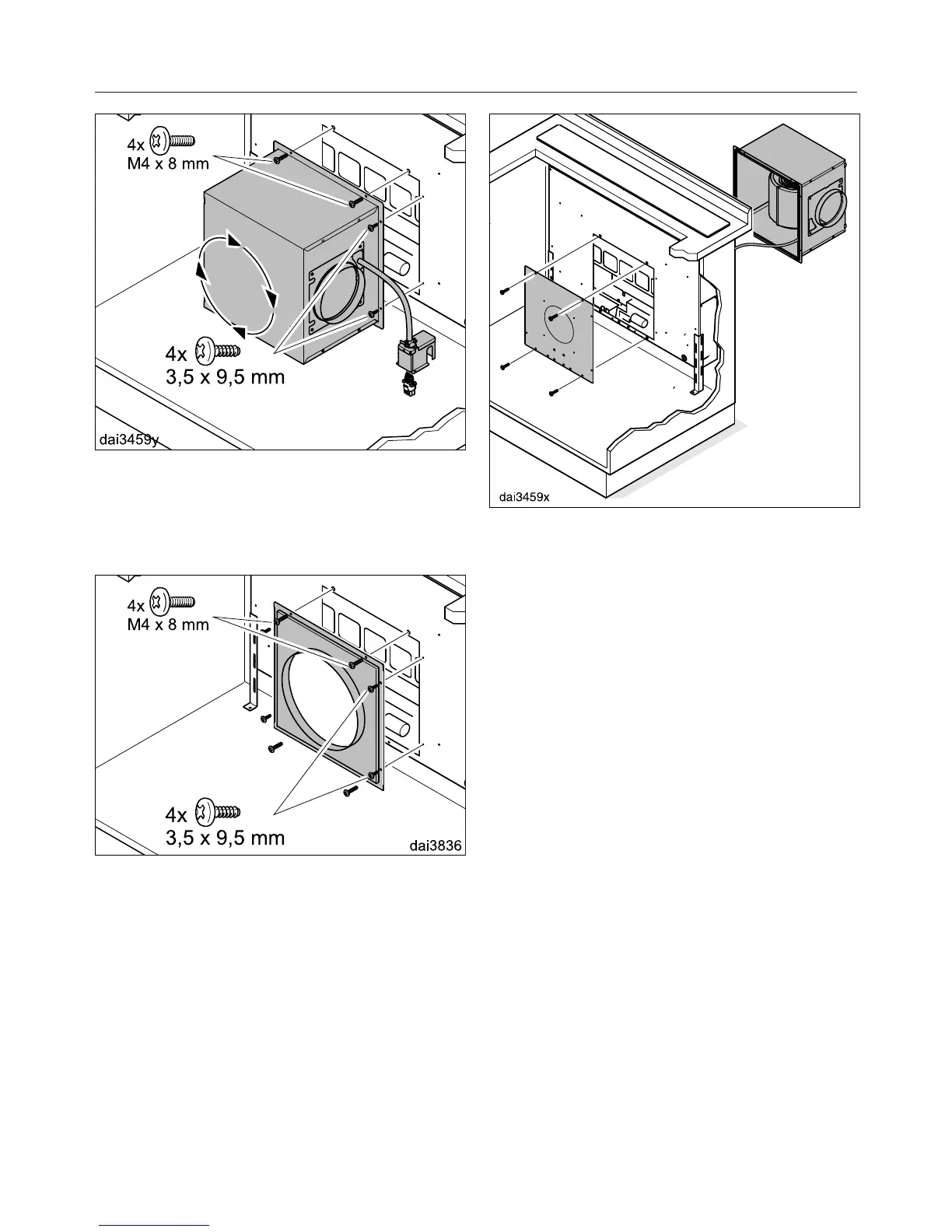

Rotate the motor so that the exhaust
connection points in the required
direction and secure it to the
downdraft.
If an external blower is being used,
the appropriate vent connector is
fitted instead.
Alternatively, the motor can be fitted
onto the downdraft from behind.
– To do this, remove the back cover
from the casing and fit it onto the
front.
