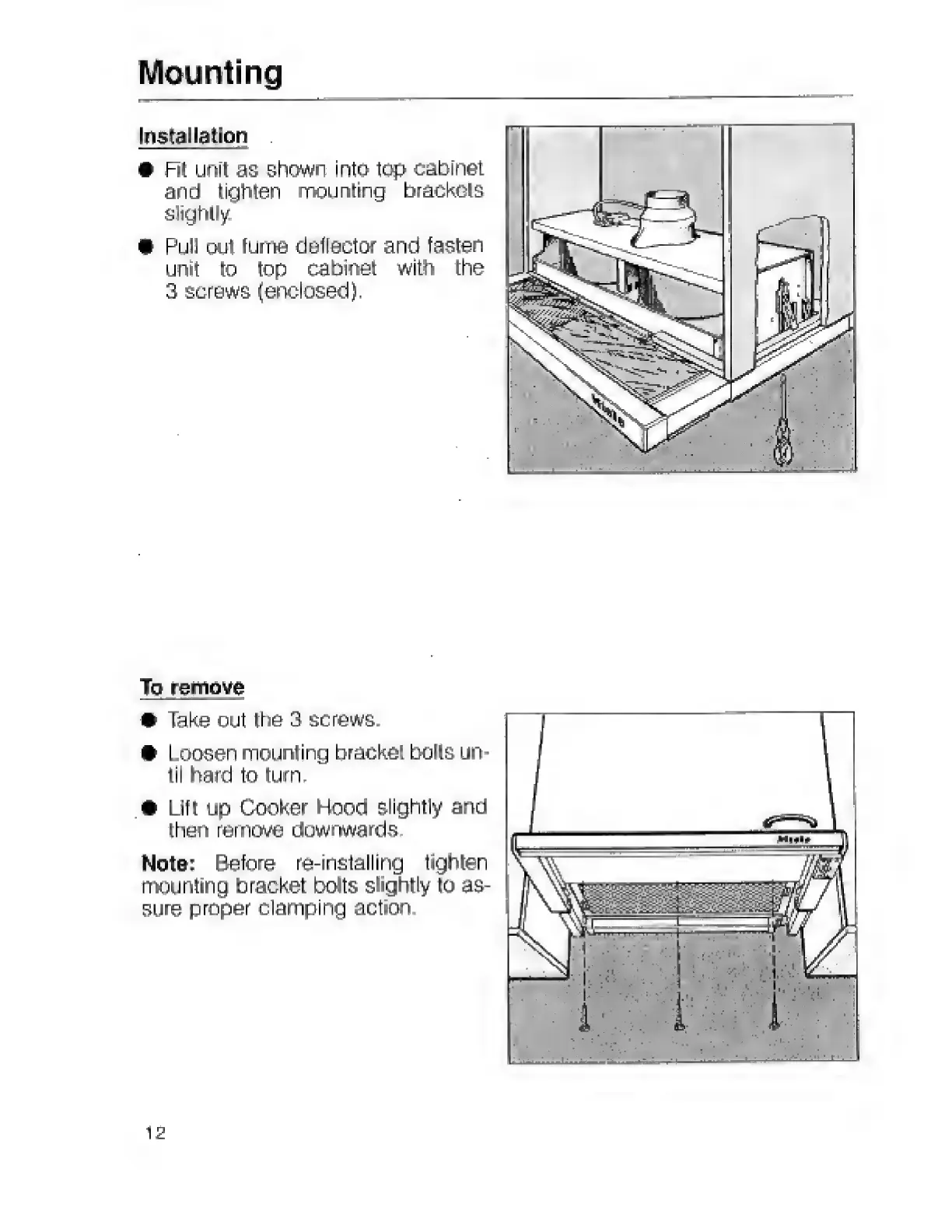

Mounting
Installation
@ Fit unit as shown into top cabinet
and tighten mounting brackets
slightly:
@ Pull out fume deflector and fasten
unit to top cabinet with the
3 screws (enclosed),
To remove
@ Jake out the 3 screws.
@ Loosen mounting bracket bolts un-
til hard to turn.
-@ Lift up Cooker Hood slightly and
then remove downwards.
Note: Before re-installing tighten
mounting bracket bolts slightly to as- |
sure proper clamping action. |
