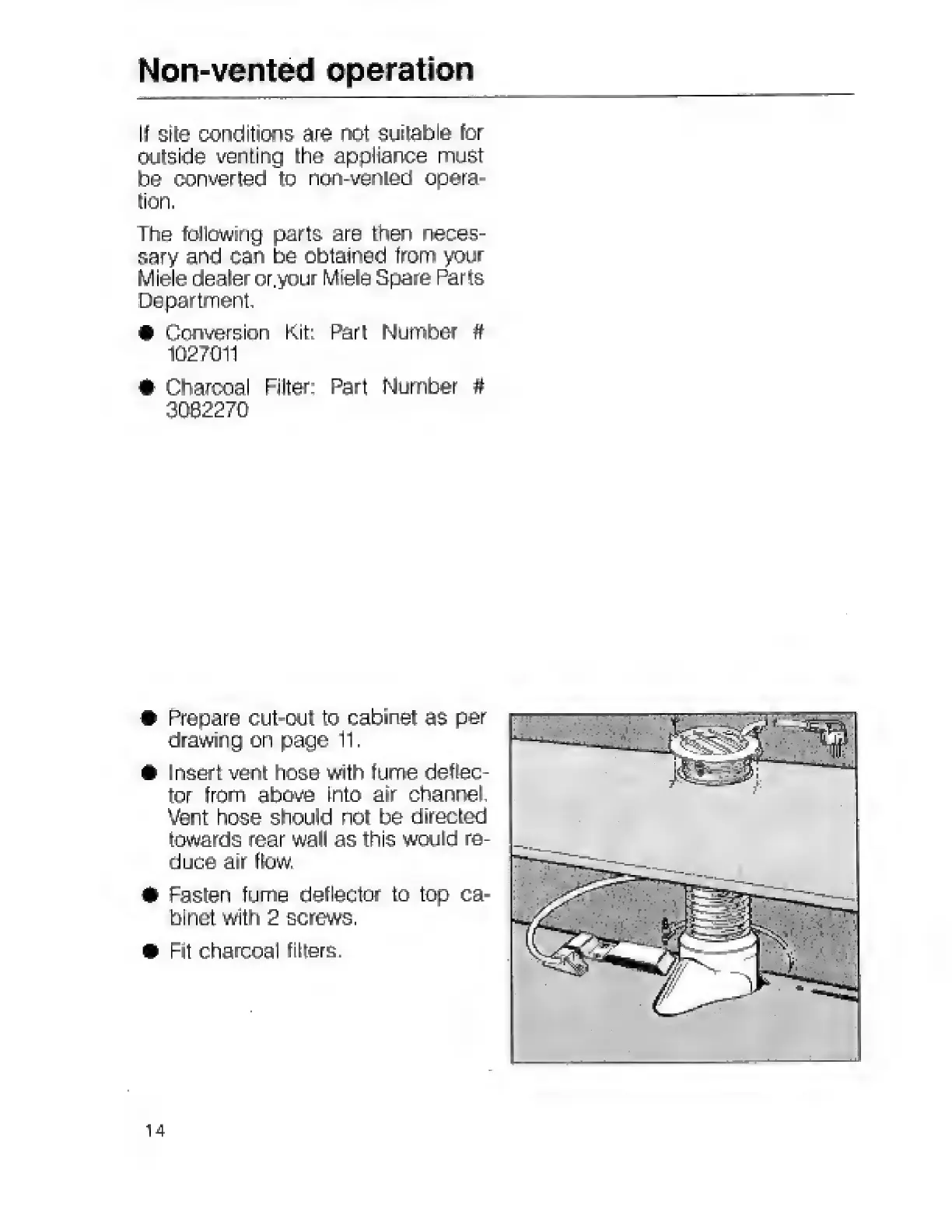

Non-vented operation
lf site conditions are not suitable for
outside venting the appliance must
be converted to non-vented opera-
tion.
The following parts are then neces-
sary and can be obtained from your
Miele dealer or,your Miele Spare Parts
Department.
@® Conversion Kit: Part Number #
1027011
@® Charcoal Filter: Part Number #
3082270
@ Prepare cut-out to cabinet as per
drawing on page 11.
® Insert vent hose with fume deflec-
for from above into air channel.
Vent hose should not be directed
towards rear wall as this would re-
duce air flow.
@ Fasten fume deflector to top ca-
binet with 2 Screws.
@® Fit charcoal filters.
