Technical Information
43
G 5xxx

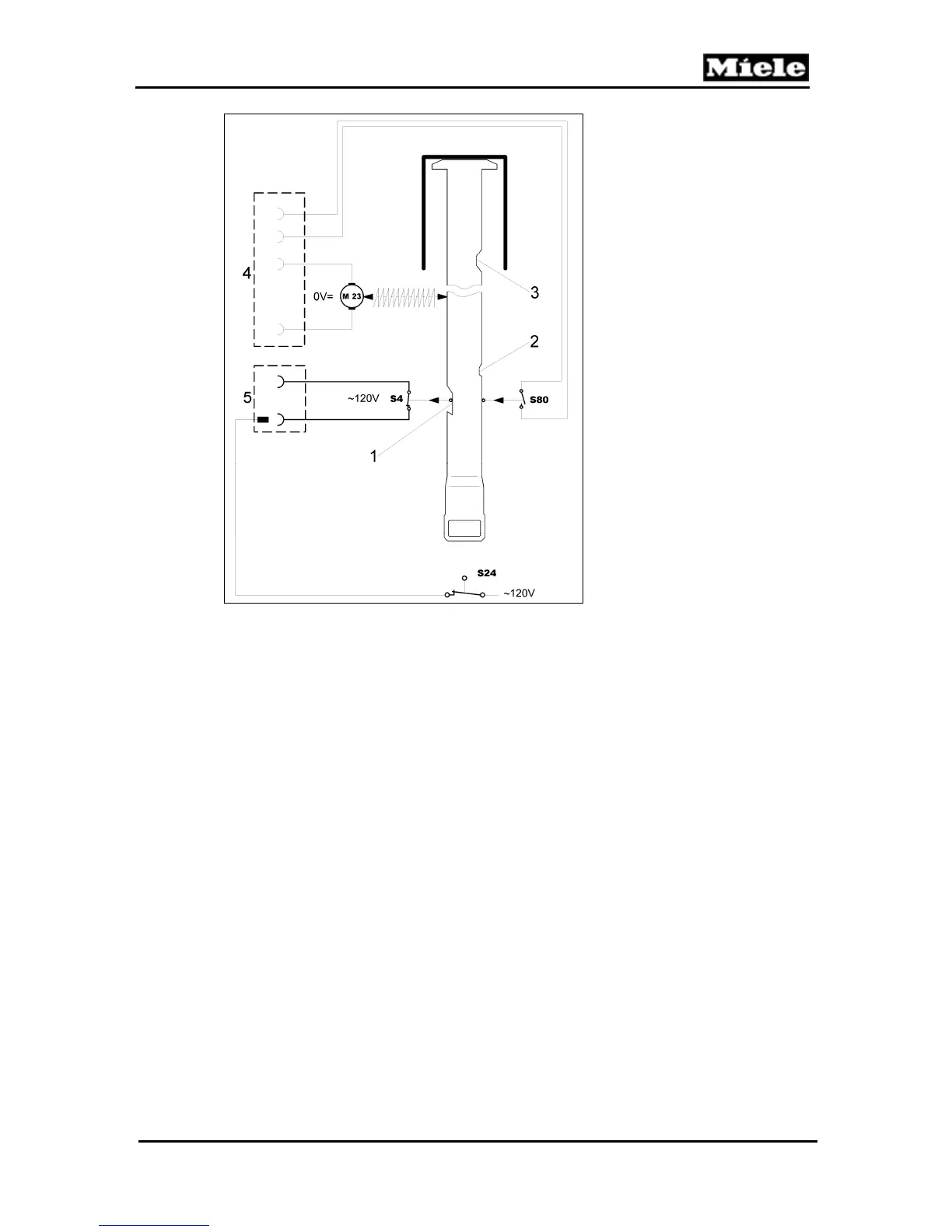

Figure 020-6: Door Lock Latch, Position 1
Position 2 - Door open, latch at mid-setting, loading/unloading position:
If the door is opened, the door lock latch is moved from position 1 to position
2. The latch then extends by approximately 2.6 inches (6 centimeters) so that
the door can be automatically closed again. See Figure 020-7.
1, 2, 3 Latch positions 1, 2, 3
4 Plug 2
5 Plug 1
S4 Door switch (120VAC), closed
S80 Door movement switch (low voltage),
open
S24 Door contact switch (120VAC), closed
M23 Door-locking motor (DC motor); no
voltage applied
