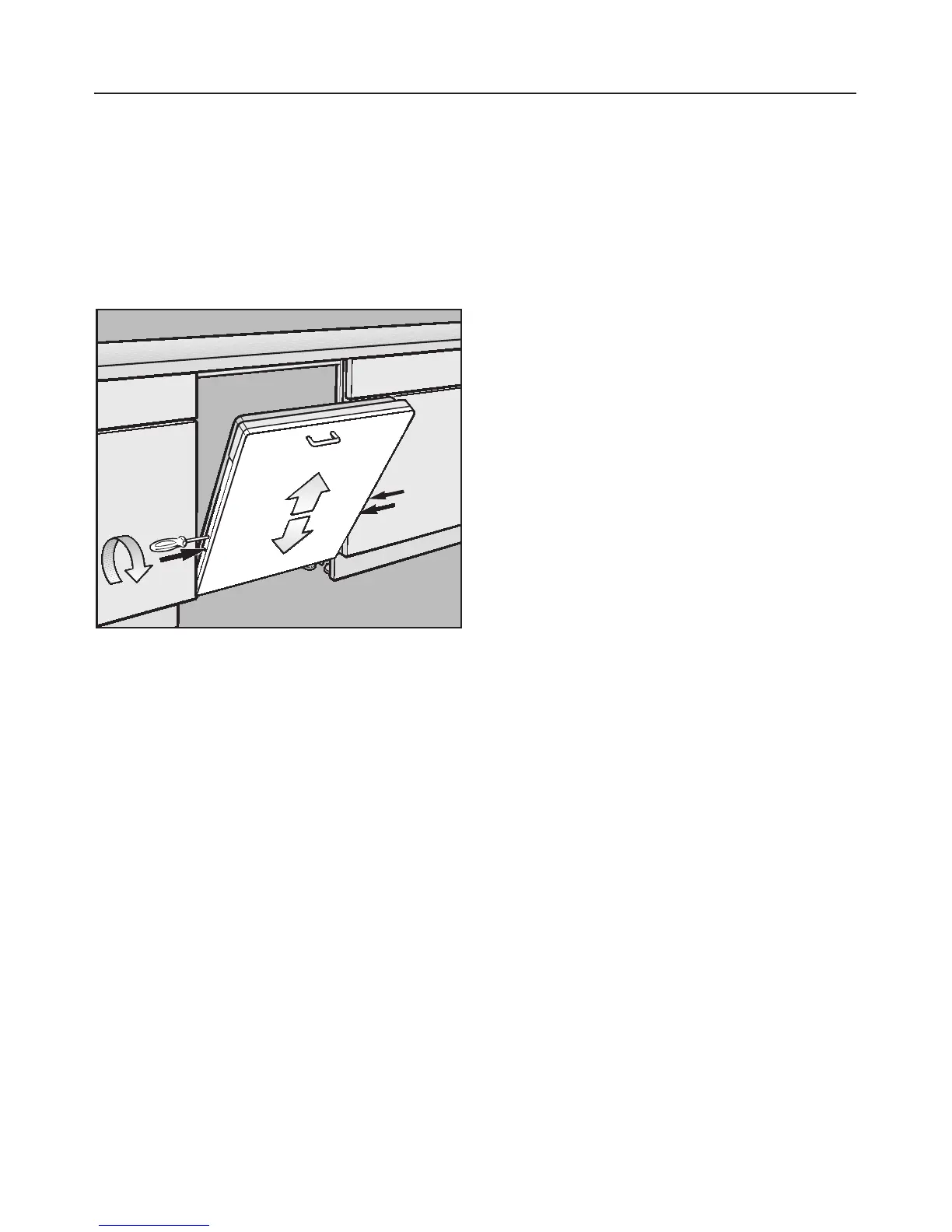

4. Adjusting the door front
When fitted the door front can be ad
-
justed up to a maximum of 2 mm up
-
wards or downwards to match adjoining
unit fronts.
^
Open the dishwasher door slightly.
^ With the door open, press the front
panel on one side against the door
outer panel.
^
Adjust the height of the door front on
this side using the lower recessed
adjusting screw (TORX T20).
higher = turn clockwise
lower = turn anti-clockwise
^
Then secure the door front on this
side by tightening the upper re
-
cessed fixing screw (TORX T20) at
the side of the machine door outer
panel.
^
Repeat the process on the other side
of the door.
^
Close the dishwasher door.
^
Check the alignment of the door
panel again.
^
If it is not correctly aligned you may
need to loosen the screws and re-
adjust it to the correct alignment.
Once satisfied that the alignment is cor
-
rect:
^
Open the dishwasher door.
^
Tighten all fixing screws (upper
screws, TORX T20) at the sides.
^
Plug fixing screw and height adjust
-
ment screw recesses with the plastic
stoppers supplied.
Installation
16
