MikroTik RBSXTG-5HPnD Series User Manual

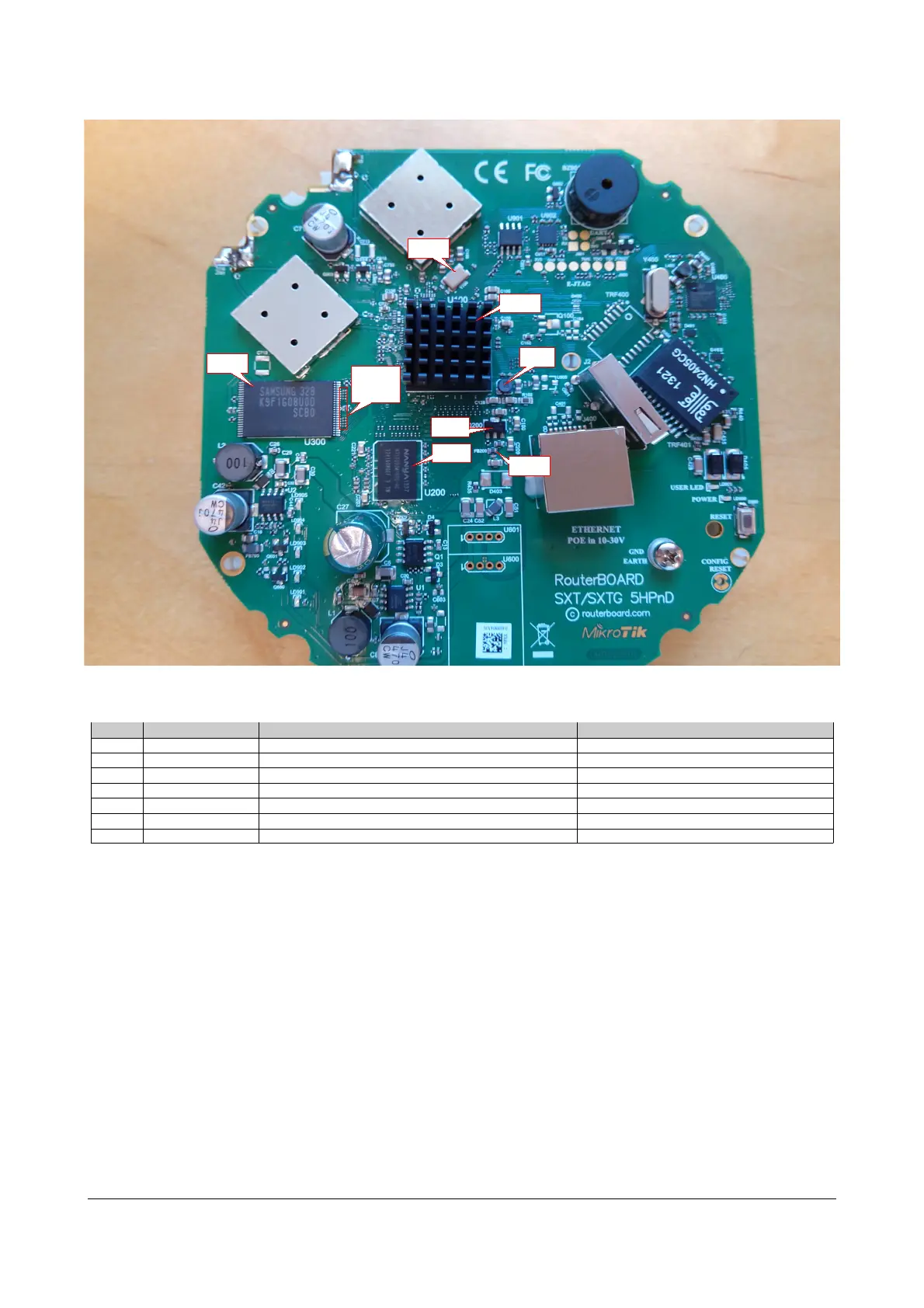

2. Components location on RouterBOARD
3. Components table
Routerboard does not boot 11
U300
Y700
R303...
...R312
U200
U100
L103
Q200
U300
Reference Manufacturer code Description Manufacturer
FB200 CB03YTYH330 Ferrite Bead 33 Ohm 3A 0603 Viking Tech Corporation
L103 BCRH2D18B/HP-2R2N-NL Inductor 2.2uH 30% 1.48A 3.2x3.2x2 RoHS Bao Cheng Electronics Co.,Ltd.,
Q200 DXT2907A-13 Transistor PNP -60V -600mA 0.5W Hfe=100-300 SOT89 RoHS Diodes Incorporated
R303-R312 CR05-22R0-FK Resistor 22R 1% 0201 0.05W ASJ PTE LTD
U100 AR9344-BC2A SOC BGA 2x2 11n 5FE Qualcomm Atheros Technology Ltd.
U200 W9751G6KB-25 DDR2 SDRAM 512Mbit DDR2-800 32Mx16bit BGA-84 0+85C T&R Winbond Electronics Corp.
U300 K9F1G08U0D-SCB0000 NAND Flash 1Gbit x8 TSOP-48 3.3V Vih0.8Vcc -10+125C PB-Free Tray NOP4 Samsung Semiconductor Europe GmbH
