– 6.4 –
6-2-2. Adjustment of the station position
(Forward and backward position of Cap/ Bottom position of Cap/ Capping height/ Wiping Y/
Wiping height)
[The case that needs adjustment]
• In the case where the station assy is removed from
• In the case of ink filling or cleaning is not performed normally
• In the case where the capping sensor of the station sensor has been replaced
[Tools to be used]
• Phillips screwdriver (No.2 for M3 to M5)
[Adjusting procedure]
Adjustment of the station position Follow the steps below to perform adjustment of station
position.
1) Assembling adjustment (Forward and backward position of Capping)
2) Operation adjustment (Adjustment operation (Forward and backward position of Cap,
Bottom position of Cap, Capping height, Wiping Y,Wiping height)
3) Adjustment of the station position
• Although the operation adjustment is serialized, correct adjustment values are written
to parameters only if the operation adjustment is performed through to the end.
Therefore, be sure to make adjustment through to the end.
• In operation adjustment, set the head height to the bottom position.
1. Assembling adjustment (forward and backward position of Capping)
1) Turn OFF the power of the device and then rotate the station gear to lower the Cap.
2) Observing from the right side of the device, make sure that the center of the Cap agrees
with the center of the head.
3) If NG results, move the head on the platen, loosen the mounting screws of the station assy,
then move the entire assy back and forth to adjust the position.

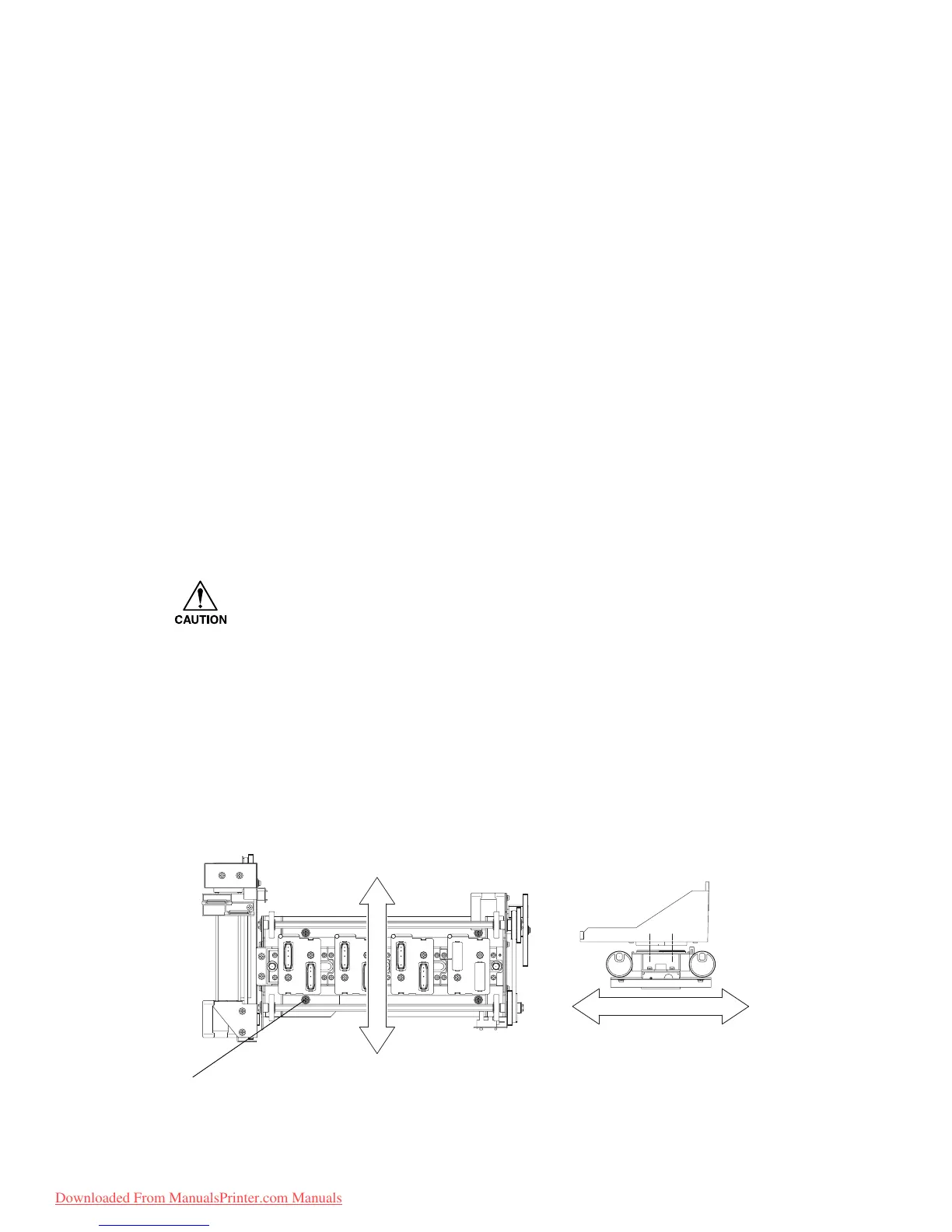

Forward and backward
position of Cap (top view)
Forward and backward
position of Cap (right side view)
Mounting screws
