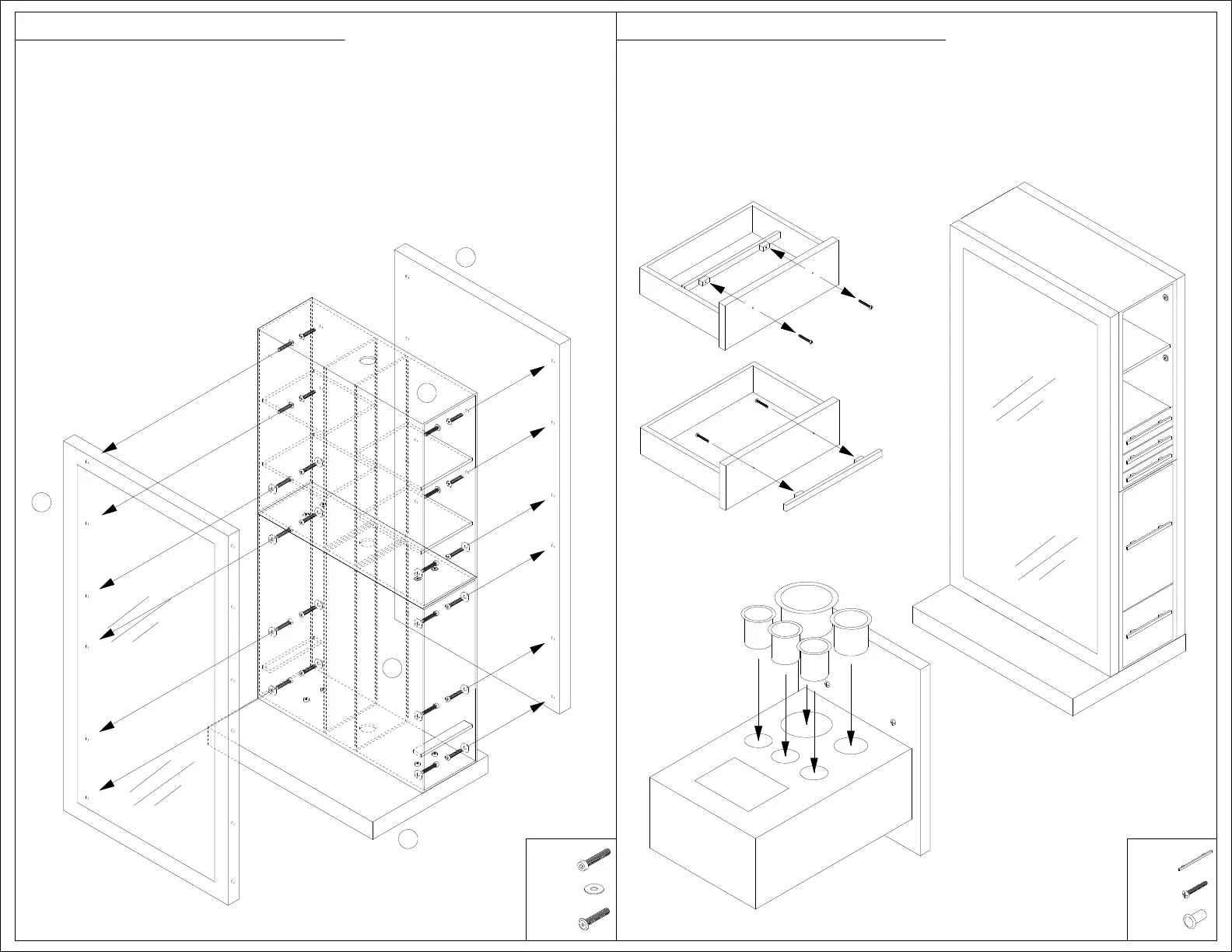

1) For shipping, the drawer handles (J) are attached to the insides of the drawer faces. Using a
Phillips-head screwdriver, remove the 2 screws (K) in each and reattach the handles on the
front of the drawers.
2) Drop the metal appliance rings (L) into the holes in the appliance drawer.
3) Slide the drawers back into their respective glides.
L
L
L
L
L
J
K
K
K
K
J
G
G
F
G
F
G
G
G
F
F
F
F
F
G
F
G
G
G
F
F
F
G
F
G
G
F
G
F
H
H
H
H
H
H
H
H
F
G
G
F
2
3
1
L
J
K
x20
x10
x5
5 - Replacing the drawers
5
4
x16
G
x16
F
H
x8
1) Rotate the mirror panel (4) such that the holes in the back of the panel are aligned with the holes
in the front faces of the bottom and top cabinet sections (2, 3).
2) Anchor the mirror panel to the cabinets by using the long Allen bolts (F) and washers (H) in the
bottom 4 sets of holes and the flat-top Allen bolts (G) without washers in the top 2 sets of holes.
3) Repeat steps 1 and 2 for the back panel (5), using the same configuration of bolts and washers.
4 - Mounting the mirror and back panels
