Switch the system back on, if needed.
Depending on the vehicle equipment:
switching on/off manually
Press the park assistance button.
– On: the LED lights up.
– Off: the LED goes out.
The parking assistance functions are shown
on the Control Display.
Switching the view via the Central
Information Display (CID)
If the rearview camera view is not dis-
played, change the view via the Central In-
formation Display (CID):
"Rear view camera"
The rearview camera image is displayed.
Display on the Control Display
Functional requirements
– The rearview camera is switched on.
– The tailgate is fully closed.
– Keep the recording range of the camera
clear.
Protruding cargo or carrier systems that
are not connected to a trailer power
socket can lead to malfunctions.
Activating assistance functions
More than one assistance function can be
active at the same time.
The zoom function for trailer operation can
only be activated separately.
– Parking aid lines
"Parking aid lines"
Lanes and turning radius lines are indi-
cated.
– Obstacle marking
"Obstacle marking"
Obstacles are marked, depending on the
vehicle equipment.
– Trailer hitch
"Trailer hitch - zoom"
A zoomed image of the trailer hitch is
shown.

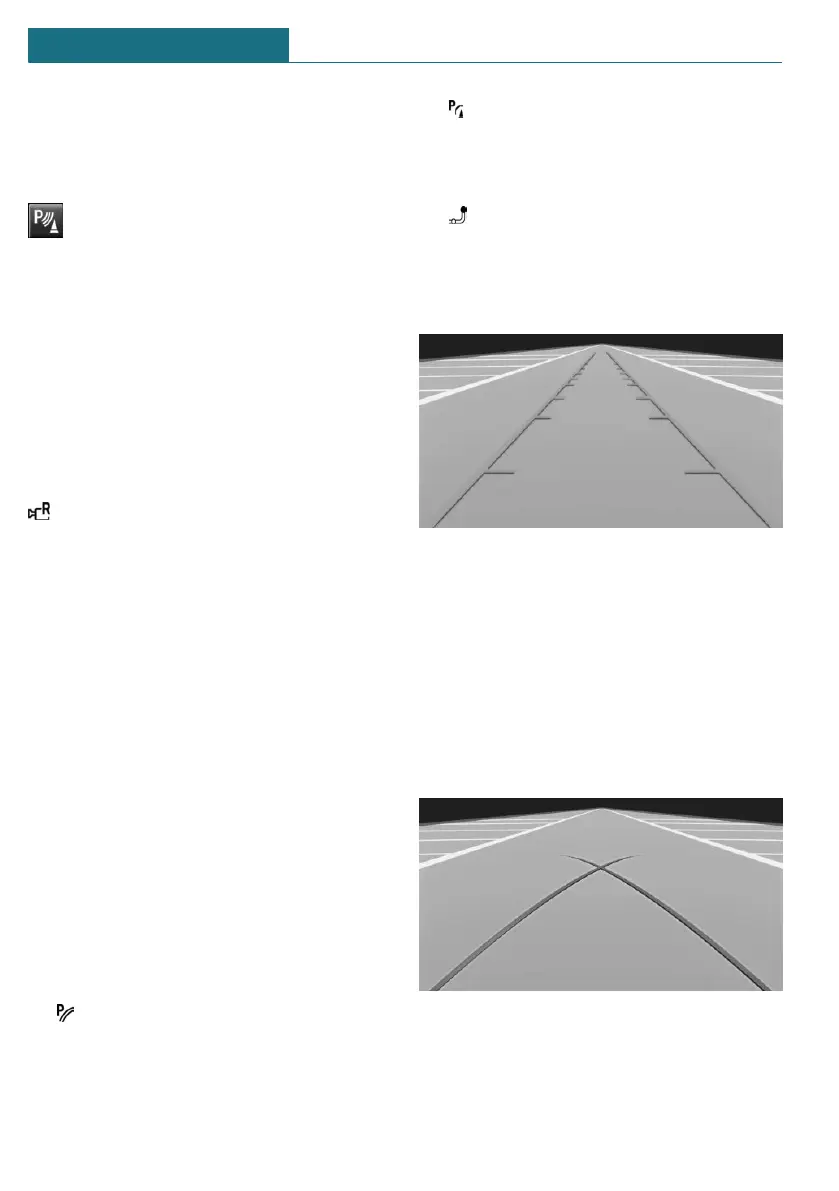

Pathway lines
Pathway lines can be superimposed on the
image of the rearview camera.
Pathway lines help you to estimate the
space required when parking and maneu-
vering on level roads.
Pathway lines depend on the current steer-
ing angle and are continuously adjusted to
the steering wheel movements.
Turning radius lines
Turning radius lines can be superimposed
on the image of the rearview camera.
Turning radius lines show the course of the
smallest possible turning radius on a level
road.
Seite 192
CONTROLS Driving comfort
192
Online Edition for Part no. 01405A1E4E3 - II/20
