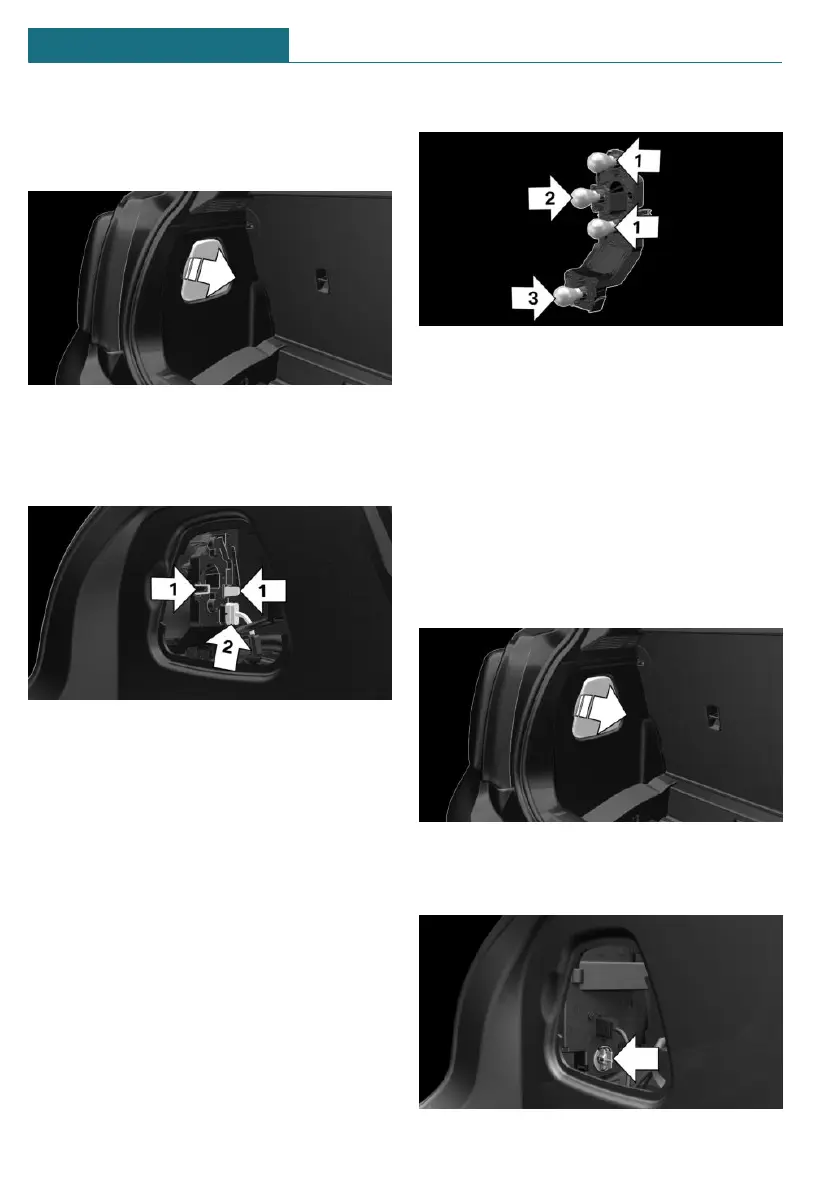

– Bulb, reversing lights: P21W.
1. Open the tailgate.
2. Remove left or right cover.
3. Through the opening, loosen the plug
connector, arrow 2 on the bulb holder.
Press the latches together, arrows 1, and
remove the bulb holder.
4. Remove the bulb holder from the open-
ing.
5. Press the nonworking bulb gently into
the socket, turn counterclockwise and
remove.
– Arrow 1: brake lights
– Arrow 2: turn signal
– Arrow 3: reversing light
6. Proceed in the reverse order to insert
the new bulb and attach the bulb holder.
Make sure that the bulb holder engages
in all fasteners.
With Union Jack
Follow the general instructions on lights
and bulbs, refer to page 284.
Bulb, reversing lights: P21W.
1. Open the tailgate.
2. Remove left or right cover.
3. Turn the bulb holder for the reversing
light, arrow, counterclockwise and re-
move it.
Seite 288
MOBILITY Replacing components
288
