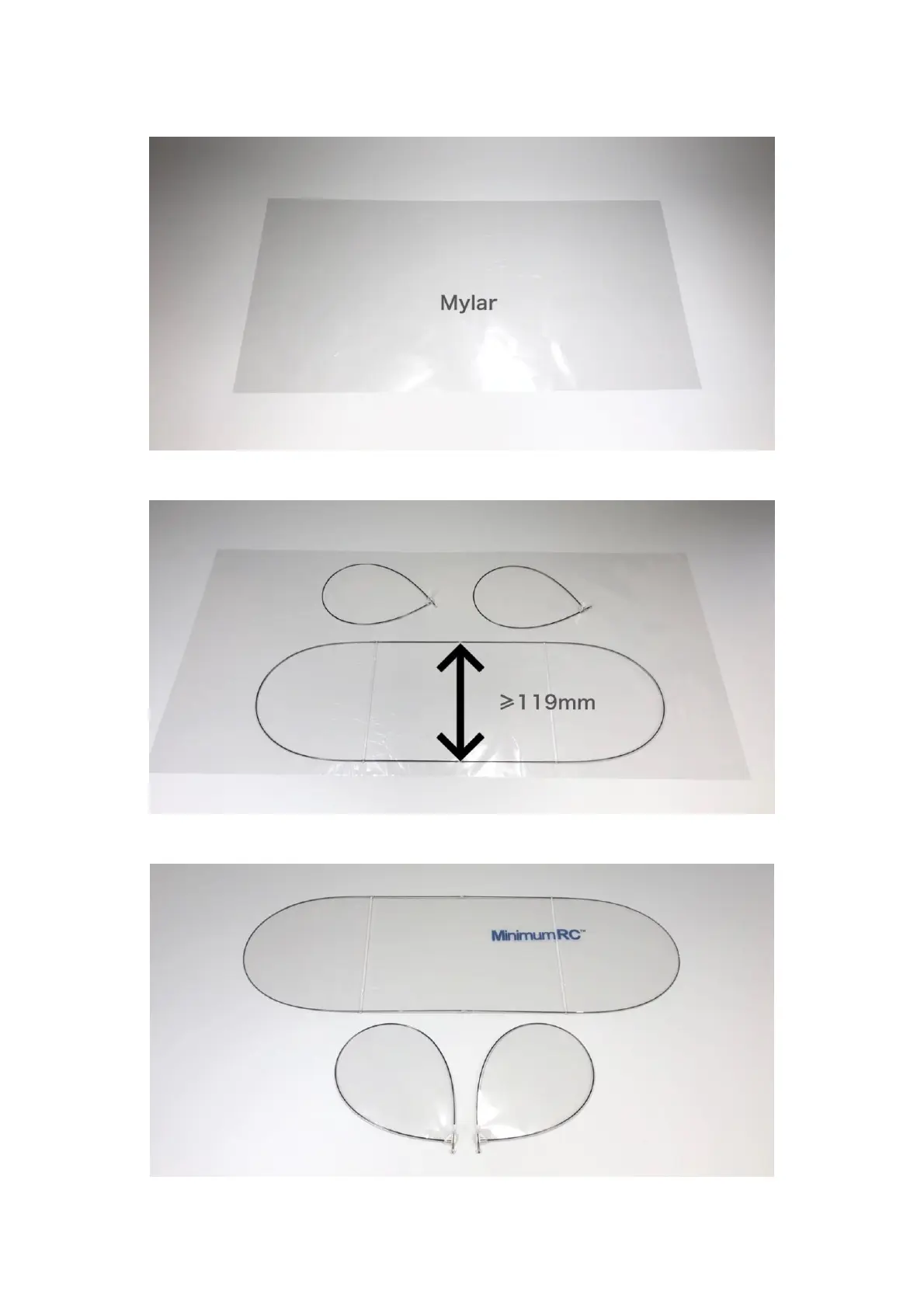

31. 【Film coating method A】Spread the film on a flat surface.
32. Note that the center width of the wing (inside the carbon rod) must be greater than 119
mm. Coat the wing & tail frame is with 7140 glue and paste them. (Optional 3M 77 spray)
33. The excess film is cut along the outside of the profile to obtain a complete wing & tail.
When the wing is installed, the film side is facing up.
