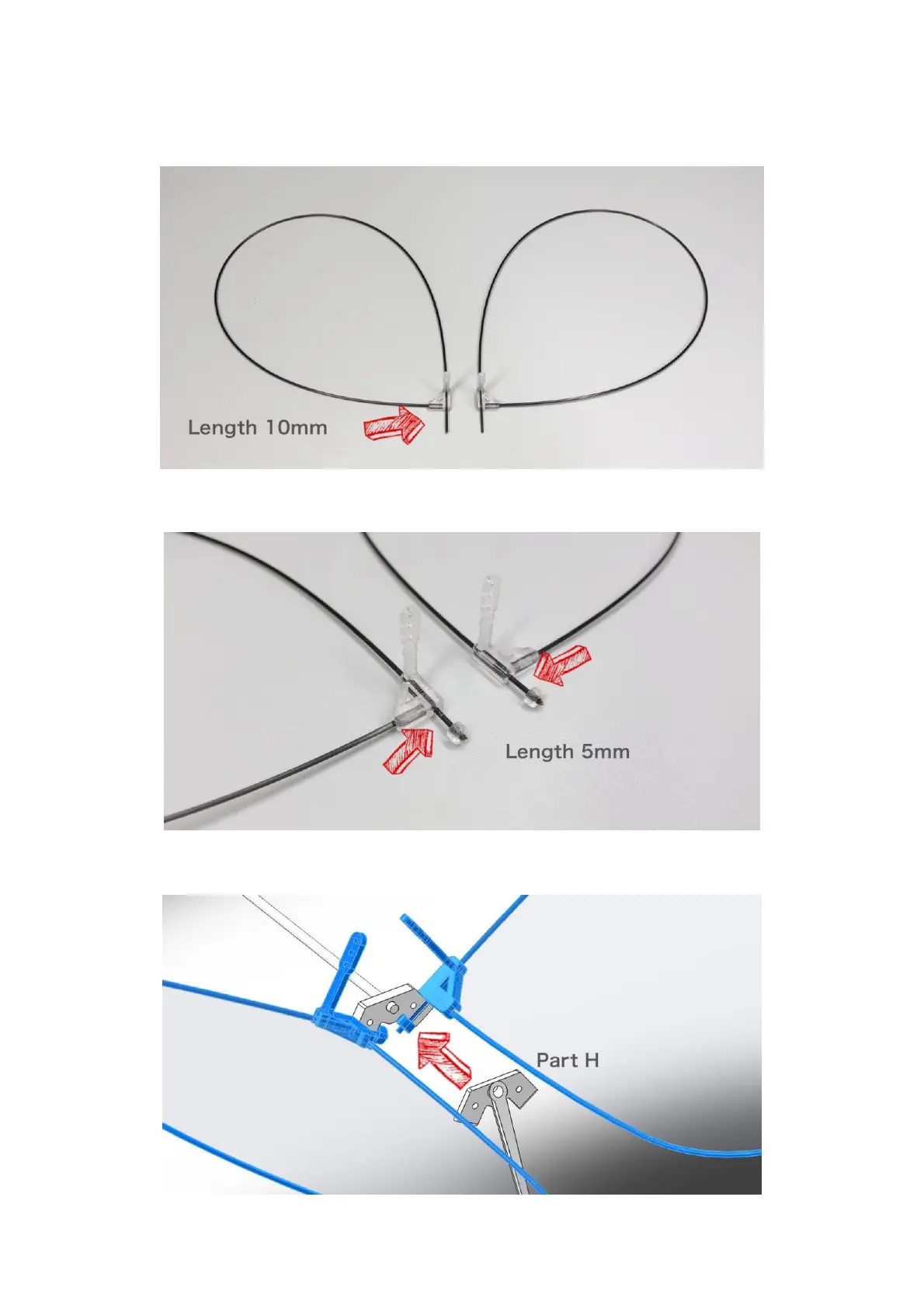

13. Bend the carbon into tail frame; The end of the carbon rod is extended by 10 mm.
Note: The direction of carbon rod bending is confusing. Please observe the picture.
14. The carbon rod end stopper (part G) has a gap of 4-5 mm between the stopper and the
bracket. (Please read step 13 before bonding)
15. The root of the tail fin needs to be inserted into the groove of part I, and it can rotate
freely without sticking. Excess carbon rods are removed at the end.
