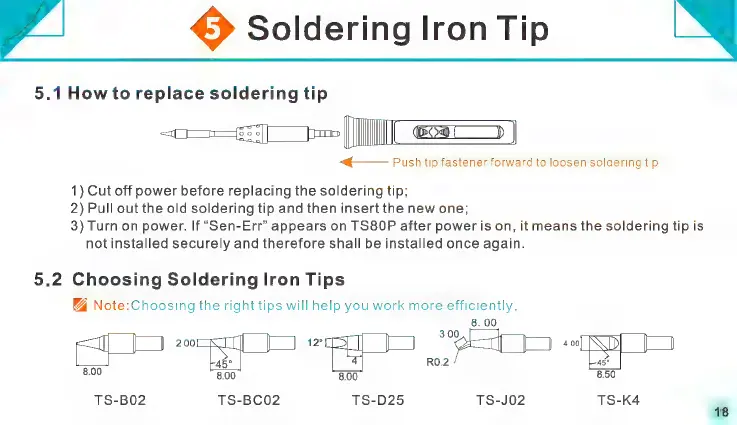

& Soldering Iron Tip
5.1 Howto replace soldering tip
EE eeN <>)
&—_—— Push tip fastener forward to loosen soldering tip
1) Cut off power before replacing the soldering tip;
2) Pull out the old soldering tip and then insert the new one;
3) Turn on power. If “Sen-Err” appears on TS80OP after power is on, it means the soldering tip is
not installed securely and therefore shall be installed once again.
5.2 Choosing Soldering Iron Tips
Wâ Note:Choosing the right tips will help you work more efficiently.
8. 00
300. [1
2.00 LI 12° md PT 4.00 Di ]
45e 4 R0.2 4ö°
8.00 8.00 8.00 8.50
TS-B02 TS-BCO2 TS-D25 TS-J02 TS-K4
