12 |

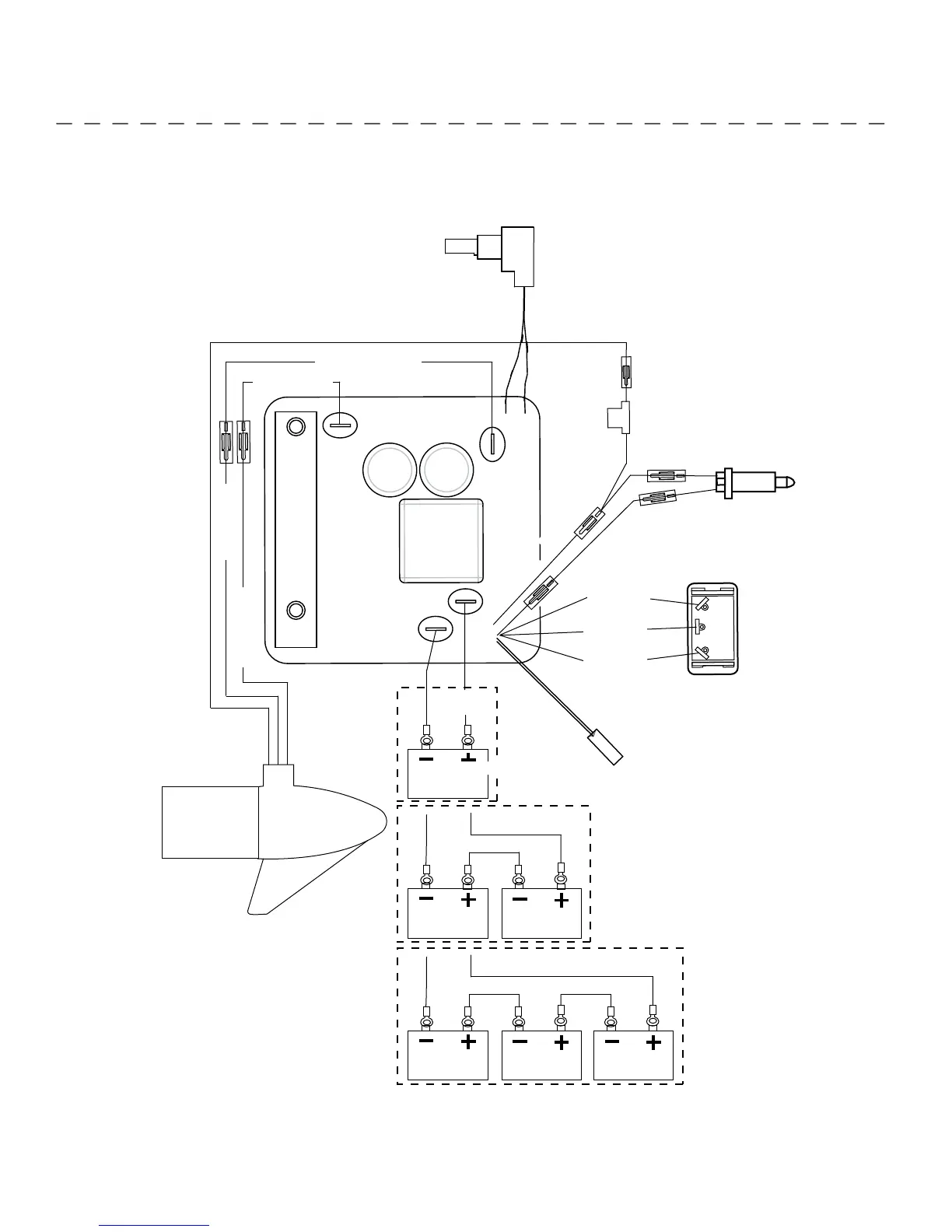

MOTOR WIRING DIAGRAM
NOTE: This is a universal, multi-voltage diagram. Double-check your motor's voltage for proper connections. Over-Current
Protection Devices not shown in this illustration.
12v
24v
36v
B+
M-
B-
M+
OPTIONAL BROWN WIRE FOR MOTORS WITH
70 LBS THRUST AND HIGHER.
SEE BOAT WIRING DIAGRAM.
SPEED ADJUSTMENT SWITCH
INDICATOR LIGHT
MOM/OFF/CON
SWITCH
BLK/BROWN
BLK/ORANGE
MOMENTARY SWITCH
BATTERY 1
BATTERY 1
BATTERY 2
BATTERY 1
BATTERY 2
BATTERY 3
MOTOR
GREEN
WHITE
YELLOW
RED M+
BLAKC M-
BLACK B-
RED B+
BLACK M-
BLK/RED M+
FUSE*
* FOR MOTORS WITH 70 LBS
THRUST AND HIGHER
