minnkotamotors.com | 39 ©2023 Johnson Outdoors Marine Electronics, Inc.
ADVANCED GPS NAVIGATION
Ethernet Ethernet
CableCable
Ethernet Ethernet
CableCable
ReceptacleReceptacle
Plug into Plug into
Helix Fish Helix Fish
FinderFinder
NOTICE: Minn Kota provides one Helix Adapter Cable
(
AS EC QDE - Ethernet Adapter Cable - 720074-1)
with every trolling motor equipped with Advanced
GPS Navigation.
NOTICE: If unsure of what features your trolling motor
may be installed with that require connection to an
output device, please review the "Identifying Trolling
Motor Features And Their Associated Cables" section
of this manual.

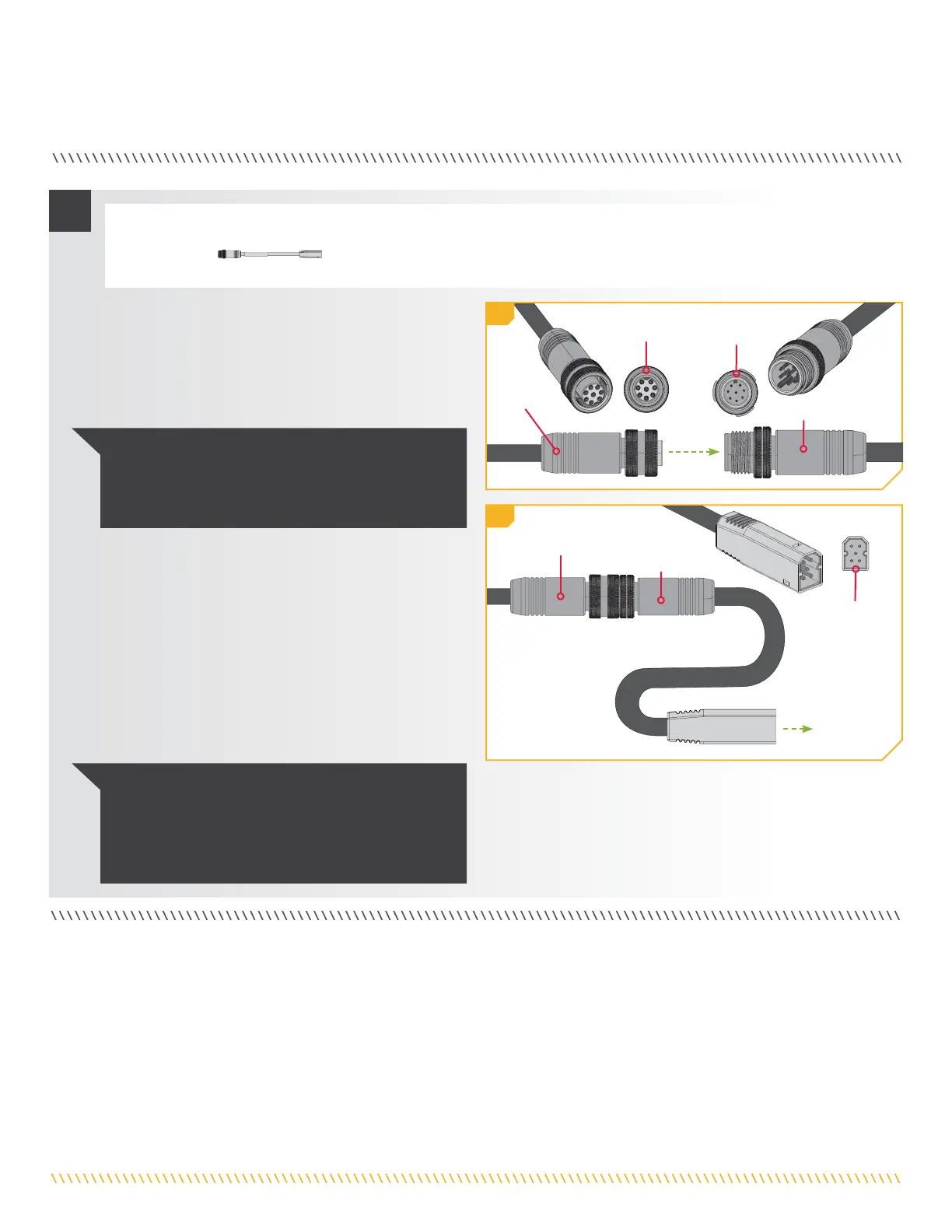

i. If installing directly to a Helix Adapter Cable
(Item #9), align the Receptacle on the Ethernet
Cable with the Eight Pin Connector on the Helix
Adapter Cable provided. Notice the keyed
connectors. Tighten the Collar from the Ethernet
Cable to secure the connection.
5
5k
5j
j. The Helix Adapter Cable directly connects the
Ethernet Cable to a Helix fish finder. Locate the Helix
Adapter Cable Keyed Connector on the back of the
fish finder. Plug the Helix Adapter Cable into the back
of the Helix fish finder to complete the connection.
k. If your trolling motor has more than one feature that
requires connection to an output device, complete
the connection for that specific output and then
follow the instructions for "Securing Accessory
Cables" to complete the Accessory Cable installation.
ITEM(S) NEEDED
#9 x 1
Helix Adapter Helix Adapter
CableCable
Helix Adapter CableHelix Adapter Cable
Eight Pin Eight Pin
ConnectorConnector
Adapter Adapter
Cable Keyed Cable Keyed
ConnectorConnector
To Next Page
